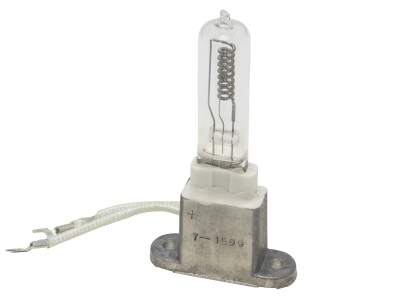

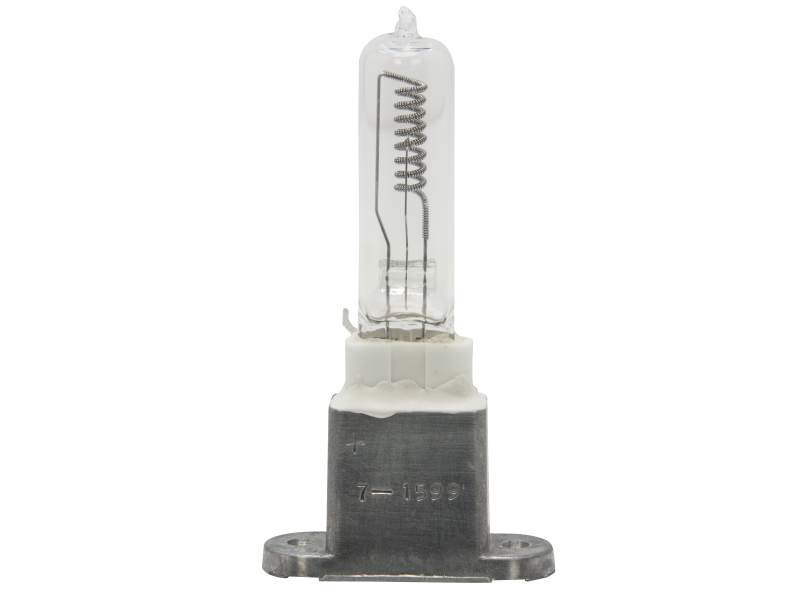

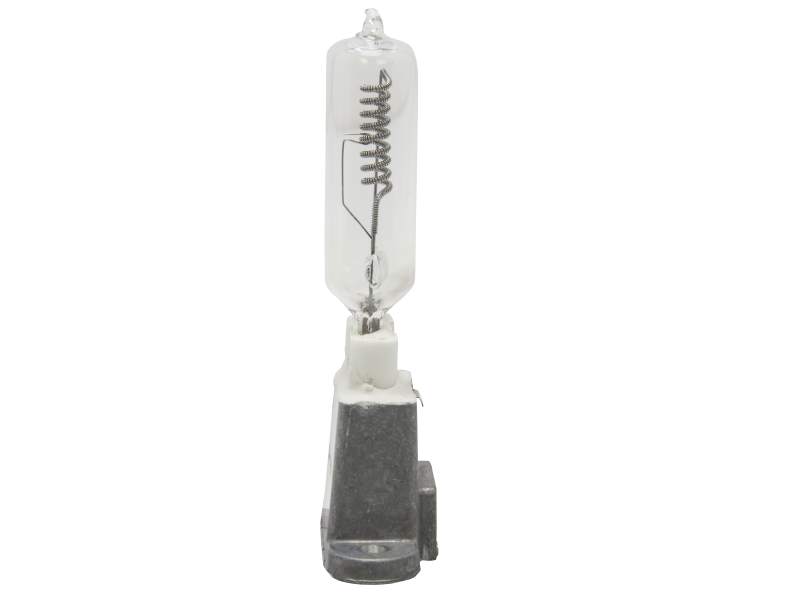

Quartz Tungsten Halogen Lamp, 1000 W, Non-Calibrated Source

The 63362 is a 1000 W QTH source lamp. QTH lamps are known for their excellent stability in emitting high intensity visible to IR wavelength output, with minimum UV emission. This lamp is intended for open air mounting instead of enclosed lamp housing operation.

Specifications

Technical Specs

Lamp Type
QTH
Lamp Wattage
1000 W
Effective Filament Size
16.0 H x 6.0 Dia. mm
Filament Type
CC

Approximate Flux
27500 lm
Color Temperature
3200 K

Lamp Type
QTH
Lamp Wattage
1000 W
Effective Filament Size
16.0 H x 6.0 Dia. mm
Filament Type
CC

Approximate Flux
27500 lm
Color Temperature
3200 K

Resources & Downloads

Literature

Light Sources(1.6 MB, PDF)

2D Product Drawings

LS-125d-1(475.8 kB, PDF)

Related Products

Compatible

Description	Compatibility	Price

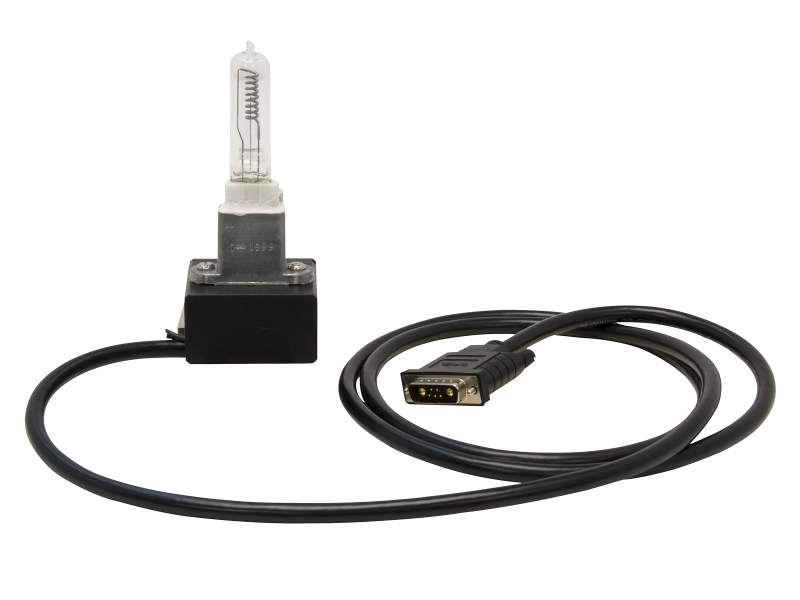

63965Lamp Mount, 1000 W QTH, Open Air, Vertical	UNIVERSAL	$385
OPS-Q1000QTH Lamp Power Supply, 600-1000 W, Power, Current, Intensity, RS-232/USB	UNIVERSAL	$4,630
63978-1000Q-OAQTH Light Source, 1000 W, Open Air Mount, 250-2500 nm	UNIVERSAL	$5,720
