Sorry, this product is no longer offered for sale.

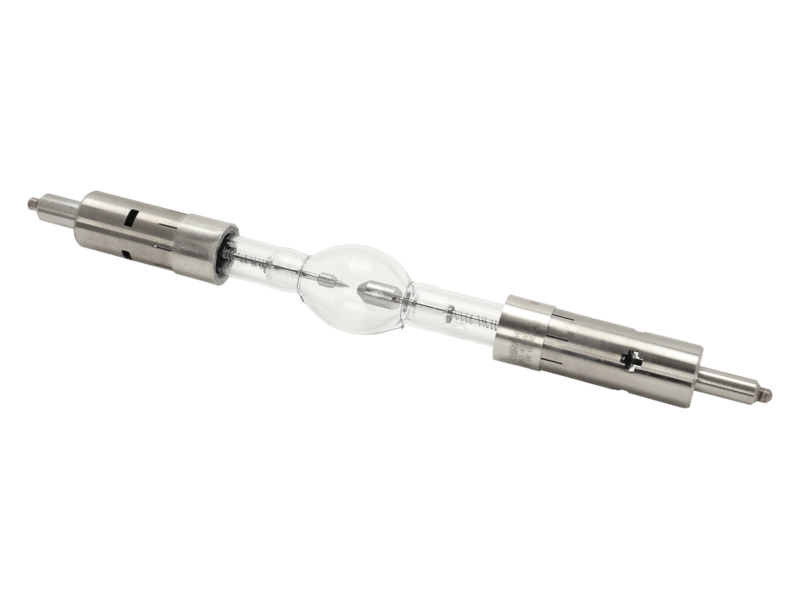

Xenon Arc Lamp, 450 W, UV Enhanced

The 6278 Replacement UV Enhanced Xenon Lamp is filled with purified xenon at 5-20 bar. The pressure triples during operation. This 450 watt Xenon lamp with a 0.9 x 2.7 mm effective arc size operates with the anode at the top. The small intense arcs radiate like 5500-6000 K full radiators with some xenon lines superimposed. The xenon lines dominate between 750 and 1000 nm, but the spectrum is almost featureless through the ultraviolet and visible. Xenon lamps are popular for demanding absorbance and fluorescence applications involving source spectral scanning, and as high intensity broadband sources. Because of its sun-like spectrum, the xenon lamp is used for solar simulation.

UV-Enhanced Xenon Lamps

When additional UV output from the xenon lamp is required, UV-enhanced lamps are available. These lamps provide the same visible to NIR performance of an standard Xe arc lamp while providing high intensity UV output as well.

High Stability Xenon Lamps

High stability Xe arc lamps are made of a higher quality cathode than typically used for xenon arc lamp construction. As a result, no arc wander occurs, allowing the lamp to maintain a consistent output intensity throughout its lifetime.

Xenon Lamp Shelf Life

We recommend purchasing replacement xenon lamps only as needed. Xe arc lamps do have an unspecified shelf life, which over time can cause the end cap seals to leak and degrade lamp performance. Newport strives to keep Xe bulbs in stock to reduce lead times when ordering a replacement.

450 to 500 W Xenon (Xe) Lamps

6278 and 6279NS Spectral Irradiance

Specifications

Technical Specs

Lamp Type
Xe, UV-Enhanced
Lamp Wattage
450 W
Average life
1000 h
Bulb Diameter
29 mm
Effective Arc Size
0.9 x 2.7 mm
Horizontal Intensity
1300 cd

Approximate Brightness
350 cd mm^-2
Approximate Flux
13000 lm
Lamp Current
25 A
Lamp Voltage
18 V

Lamp Type
Xe, UV-Enhanced
Lamp Wattage
450 W
Average life
1000 h
Bulb Diameter
29 mm
Effective Arc Size
0.9 x 2.7 mm
Horizontal Intensity
1300 cd

Approximate Brightness
350 cd mm^-2
Approximate Flux
13000 lm
Lamp Current
25 A
Lamp Voltage
18 V

Resources & Downloads

Literature

Light Sources(1.6 MB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		6280NSXenon Short Arc Lamp, 450 W, Ozone Free	UNIVERSAL		In Stock	$1,310

Compatible Light Source Components

Check out our compatibility guide for compatible housing, socket adapter, power supply and cable to be used with each lamp.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		6163Lamp Socket Adapter, 450 W Xe Lamp, For Research Housing	UNIVERSAL		In Stock	$365
		69920¹Arc Lamp Power Supply, Universal, 350 to 1000 Watt	UNIVERSAL		In Stock	$7,175

Notes:

Includes 70052 cable set
