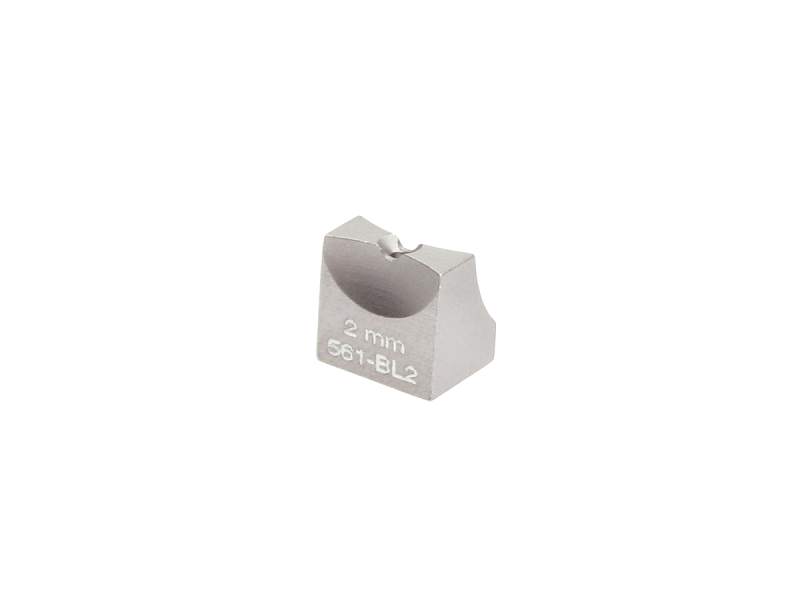

Ball Lens Module, 2 mm, 561 Series
Ball Lens Module, 2 mm, 561 Series
Model: 561-BL2
In Stock
Product Series Overview
ULTRAlign Fiber Alignment AccessoriesThe 561-BL2 Ball Lens Module attaches 2 mm diameter ball lenses to a 561 Series stage. The ball lens module is gently held in a 561-MM Module Mount.
Resources & Downloads
2D Product Drawings
561-BL2-ENV-S(158.2 kB, PDF)
Other
561-BL2_RoHS2021.pdf(682.2 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

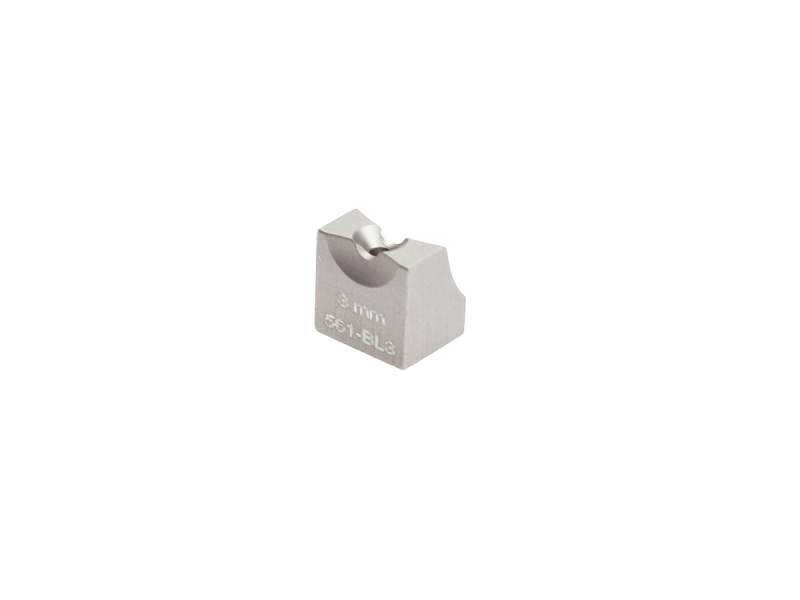

 | 561-BL3Ball Lens Module, 3 mm, 561 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
