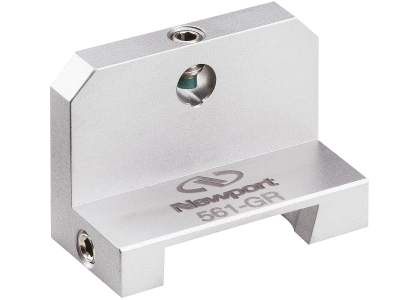

Lens Mount, Gradient Index (GRIN), 561 Series

Lens Mount, Gradient Index (GRIN), 561 Series

Model: 561-GR

$222

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Fiber Alignment Accessories

The 561-GR Gradient Index (GRIN) Lens Mount, mounts GRIN lenses up to 4.5 mm diameter to a 561 Series stage. Lenses held in a V-groove with a nylon-tipped setscrew.

Specifications

Technical Specs

Material

Steel

Material

Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-GR DWG (46.1 kB, PDF)

Other

MKS EU ROHS3 - 561-GR (222.6 kB, PDF)
