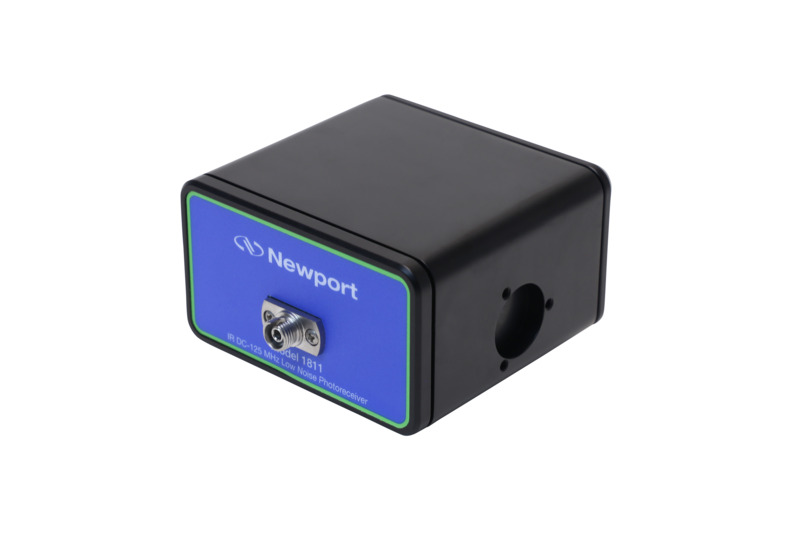

Fiber-Optic Receiver, 900-1700 nm InGaAs Detector, 125 MHz Bandwidth, FC

Technical Specs

  • Detector Diameter
    0.1 mm
  • Detector Material
    InGaAs
  • Detector Type
    PIN
  • Wavelength Range
    900-1700 nm
  • 3 dB Bandwidth
    DC to 125 MHz
  • Fiber-Optic Connector
    FC/UPC
  • Fiber Type
    SM or MM
  • Maximum Conversion Gain
    4x104 V/W
  • Maximum Transimpedance Gain
    4x104 V/A
  • NEP
    2.5 pW/√Hz
  • Rise Time
    3 ns
  • Saturation Power
    55 µW @ 1550 nm
  • Output Connector
    SMA
  • Output Impedance
    50 Ω
  • DC Bias Monitor Transimpedance Gain
    10 V/mA
  • Power Requirements
    ±15 VDC, 250 mA
  • Thread Type
    8-32 (M4 Adapter Included)
