1811-FC-AC Fiber-Optic Receiver

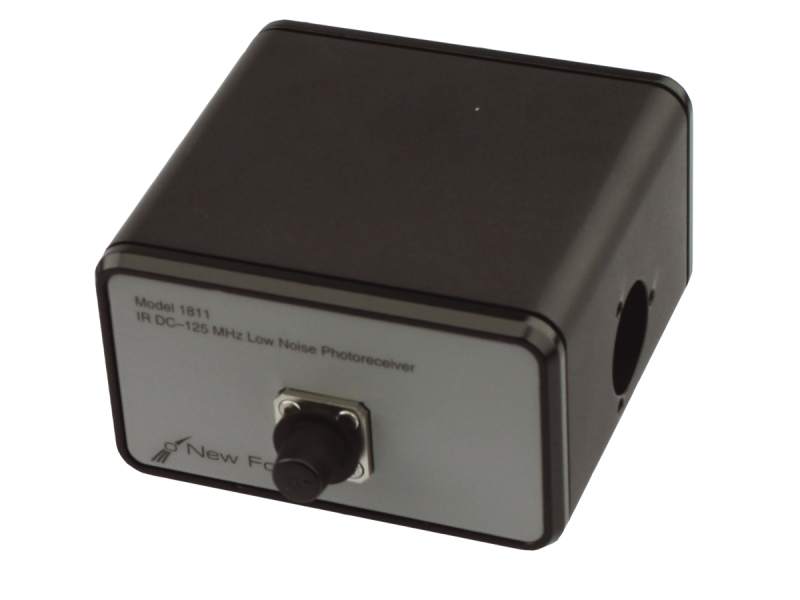

The 1811-FC-AC InGaAs Fiber-Optic Receiver is a FC connectorized, 900 to 1700 nm photoreceiver offering a well-balanced combination of gain, bandwidth, and low noise over the 25 kHz to 125 MHz frequency range. Because of its high transimpedance gain and low noise-equivalent power (NEP), it offers the best in sensitivity for signals with rise and fall times as short as 3 ns. This high sensitivity, combined with its high-level output, reduces the effects of downstream noise sources. For mounting there is an 8-32 thread, and we include an M4 thread adapter and tool.

An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables 0923 and 0924 are included with each detector.

Typical Responsivity of Model 1811 (InGaAs)

High Transimpedance Gain and Low Noise

Because of their high transimpedance gain and low noise-equivalent power (NEP), they offer the best in sensitivity for signals with rise and fall times as short as 3 ns. This high sensitivity, combined with their high-level output, reduces the effects of downstream noise sources.

Typical Frequency Response

Typical Output Noise

RF Shielding

Careful RF shielding and filtering of power-supply inputs eliminate electromagnetic interference, even in laboratories with Q-switched lasers and other noisy equipment.

Specifications

Technical Specs

Device Type

Photoreceiver (AC-Coupled)
Detector Diameter

0.15 mm
Detector Material

InGaAs
Detector Type

PIN
Wavelength Range

900-1700 nm
3 dB Bandwidth

25 kHz to 125 MHz
Optical Input

Fiber-optic
Fiber-Optic Connector

FC/UPC
Fiber Type

Singlemode or Multimode
Maximum Conversion Gain

4x10⁴ V/W
Maximum Transimpedance Gain

4x10⁴ V/A
Peak Responsivity

1.0 A/W @ 1550 nm

Output Noise

5 mVrms
Rise Time

3 ns
Saturation Power

55 µW @ 1550 nm
Output Connector

SMA
Output Impedance

33 Ω
DC Bias Monitor Bandwidth

50 KHz
DC Bias Monitor Transimpedance Gain

10 V/mA
DC Bias Monitor Output

SMB
Power Requirements

±15 VDC, <200 mA
Operating Temperature Range

10 - 35 °C, < 70% RH
Thread Type

8-32 (M4 Adapter Included)

Device Type

Photoreceiver (AC-Coupled)
Detector Diameter

0.15 mm
Detector Material

InGaAs
Detector Type

PIN
Wavelength Range

900-1700 nm
3 dB Bandwidth

25 kHz to 125 MHz
Optical Input

Fiber-optic
Fiber-Optic Connector

FC/UPC
Fiber Type

Singlemode or Multimode
Maximum Conversion Gain

4x10⁴ V/W
Maximum Transimpedance Gain

4x10⁴ V/A
Peak Responsivity

1.0 A/W @ 1550 nm

Output Noise

5 mVrms
Rise Time

3 ns
Saturation Power

55 µW @ 1550 nm
Output Connector

SMA
Output Impedance

33 Ω
DC Bias Monitor Bandwidth

50 KHz
DC Bias Monitor Transimpedance Gain

10 V/mA
DC Bias Monitor Output

SMB
Power Requirements

±15 VDC, <200 mA
Operating Temperature Range

10 - 35 °C, < 70% RH
Thread Type

8-32 (M4 Adapter Included)
