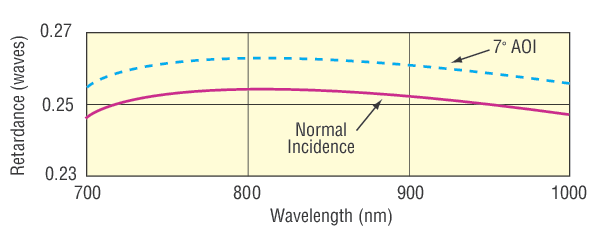

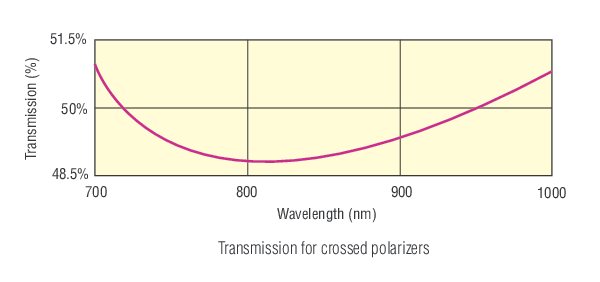

The 15RP52-2 Achromatic Wave Plate consists of two different birefringent crystals: crystalline quartz and magnesium fluoride (MgF2). Enclosed in a 30.0 mm housing, this 23.0 mm clear aperture wave plate has λ/2 retardation over a 700 to 1000 nm wavelength range. It has a highly efficient broadband antireflection coating, in an air-spaced design. This construction ensures excellent transmitted wavefront quality, while minimizing beam deviation and surface reflection losses. The assembly is mounted in a black anodized aluminum housing for protection and ease of mounting, with the retarder fast axis marked for alignment reference. Because of the air-space design, our Achromatic Wave Plates have a higher damage threshold than achromatic polymer film wave plates. Achromatic Wave Plates are also less expensive than achromatic polymer film wave plates.
10RP42-1Achromatic Waveplate, Half-Wave, Polymer, 25.4 mm, 545 nm Center, 460-655 nm
UNIVERSAL
In Stock
$1,601
10RP02-16Zero-Order Waveplate, Half-Wave, Quartz, 25.4 mm Diameter, 532 nm
UNIVERSAL
In Stock
$554
10RP32-632.8Zero-Order Waveplate, Half-Wave, Polymer, 25.4 mm Diameter, 632.8 nm
UNIVERSAL
In Stock
$948
Compatible
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
M-LCM-2Lens Mount, Self-Centering, 3.2-60.3 mm Diameter Lenses
METRIC
In Stock
$299
AC-1AVariable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms
UNIVERSAL
In Stock
$58
LCM-2Lens Mount, Self-Centering, 0.125-2.375 in. Diameter Lenses
IMPERIAL
In Stock
$299
15RP52-2 - Drawings & CAD
Additional CAD file downloads are not available for this product.
15RP52-2 - Drawings
Additional drawings are not available for this product.
15RP52-2
