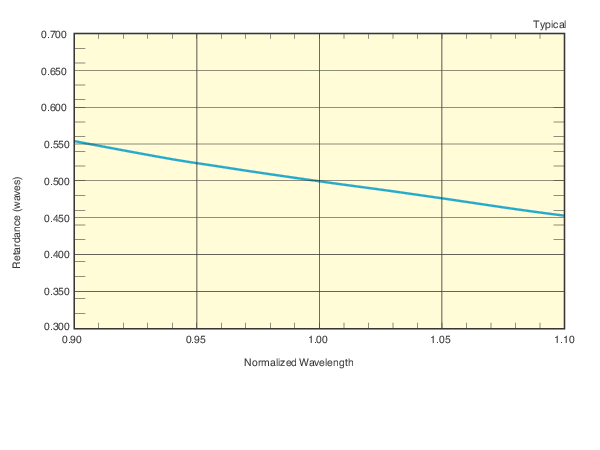

The 10RP32-632.8 True Zero-Order Polymer Half Wave Plate consists of a birefringent polymer film cemented between two high-precision, high efficiency, broadband antireflection coated N-BK7 windows. This construction ensures excellent transmitted 632.8 nm wavefront quality and λ/2 retardation, while minimizing beam deviation and surface reflection losses. The assembly is mounted in a 25.4 mm outer diameter black anodized aluminum housing for protection and ease of mounting and has a 17.8 mm clear aperture. The wave plate fast axis marked for alignment reference. Polymer waveplates offer benefits over quartz wave plates such as better angular acceptance and less sensitivity to wavelength change. Polymer wave plates have excellent angular field of view. Retardation changes by less than 1% over a ±12° incidence angle. The polymer material has very low birefringence that is nearly constant with wavelength.
LAB-29Optic Cleaning Wipes, Class 1000 Cleanroom, 1200 Quantity
UNIVERSAL
In Stock
$115.00
10RP32-632.8 - Drawings & CAD
Additional CAD file downloads are not available for this product.
10RP32-632.8 - Drawings
Additional drawings are not available for this product.
10RP32-632.8
Sign In
Request Resource
In order to provide better service and products, please provide the following brief information.
Password Reset
Enter your email address below to reset your account password.
Password Reset
Email Verification Required
Cart Items Updated
Remove Product
Remove this product from your comparison list?
Check Order Status
Provide an order number and postal code to check the status of an order or download an invoice for an order that has shipped. Login to view your complete order history.
Sign In Required
To access this and other valuable technical resources, please sign in or register for a new online account.
Add to Cart
Zero-Order Waveplate, Half-Wave, Polymer, 25.4 mm Diameter, 632.8 nm
