Hot Mirror, 25.4 mm, 0° AOI, 420-690 nm Transmittance

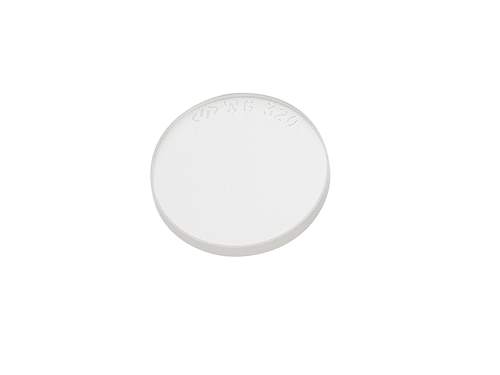

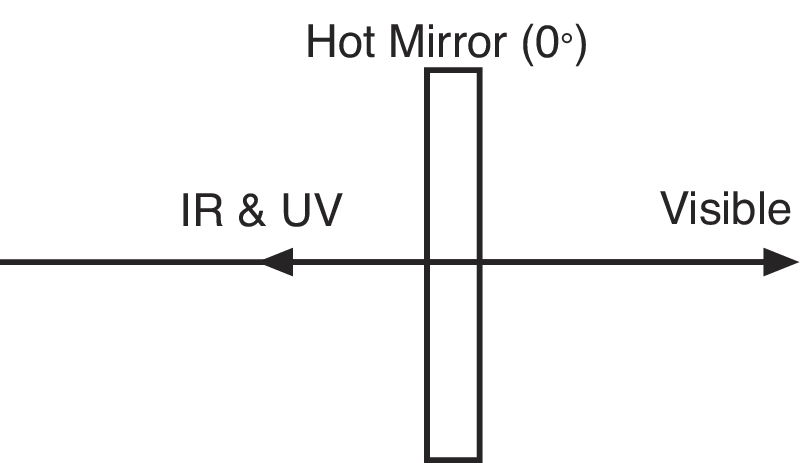

The 10HMR-0 Hot Mirror is a 25.4 mm diameter 0° mirror used as a heat control filter. Our hot mirrors are heat-reflecting shortpass filters designed to transmit 420-690 nm visible wavelengths while reflecting 725-1550 nm near-infrared heat generating wavelengths. These filters can be used to remove heat from an optical system.

Specifications

Technical Specs

Type
Hot Mirror
Optic Size
Ø25.4 mm
Angle of Incidence
0° ±15°
Transmittance Range
420-690 nm
Transmission

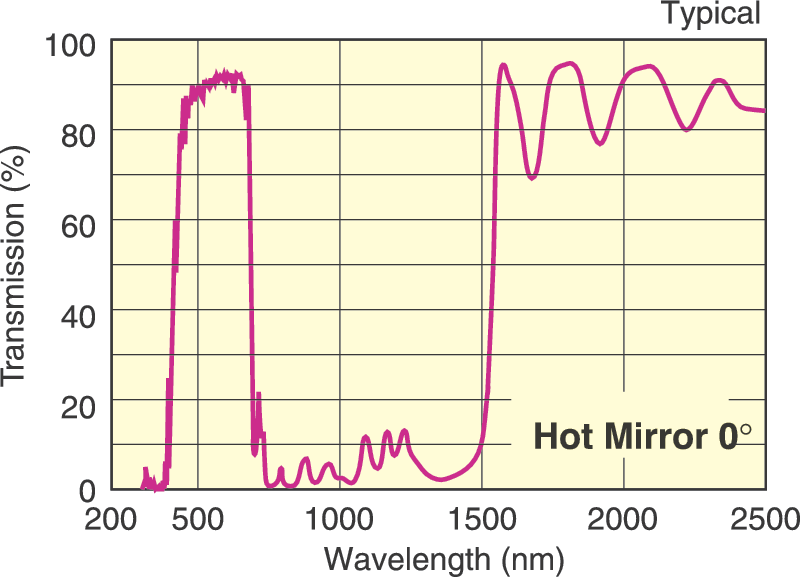

≥85%
Reflectance Band
725-1550 nm
Reflectance
Ravg ≥ 90% 725-1550 nm
Material
Borofloat® borosilicate float glass
Surface Quality
80-50 scratch-dig

Surface Flatness
6–8λ per 25.4 mm at 546.1 nm over the clear aperture
Thickness
3.3 mm
Thickness Tolerance
±0.2 mm
Size Tolerance
±0.4 mm
Clear Aperture
≥central 90% of dimensions
Temperature Range
-100 to 500°C
Cleaning
See How to Clean Optics

Type
Hot Mirror
Optic Size
Ø25.4 mm
Angle of Incidence
0° ±15°
Transmittance Range
420-690 nm
Transmission
≥85%
Reflectance Band
725-1550 nm
Reflectance
Ravg ≥ 90% 725-1550 nm
Material
Borofloat® borosilicate float glass
Surface Quality
80-50 scratch-dig

Surface Flatness
6–8λ per 25.4 mm at 546.1 nm over the clear aperture
Thickness
3.3 mm
Thickness Tolerance
±0.2 mm
Size Tolerance
±0.4 mm
Clear Aperture
≥central 90% of dimensions
Temperature Range
-100 to 500°C
Cleaning
See How to Clean Optics

Resources & Downloads

Other

10HMR-0 RoHS Certificate(264.1 kB, PDF)
10HMR-0_ROHS2-2021.pdf(0, PDF)

2D Product Drawings

10HMR-0 and 10CMR-45 Drawing(90.5 kB, PDF)
