10BR08 Right-Angle Prism

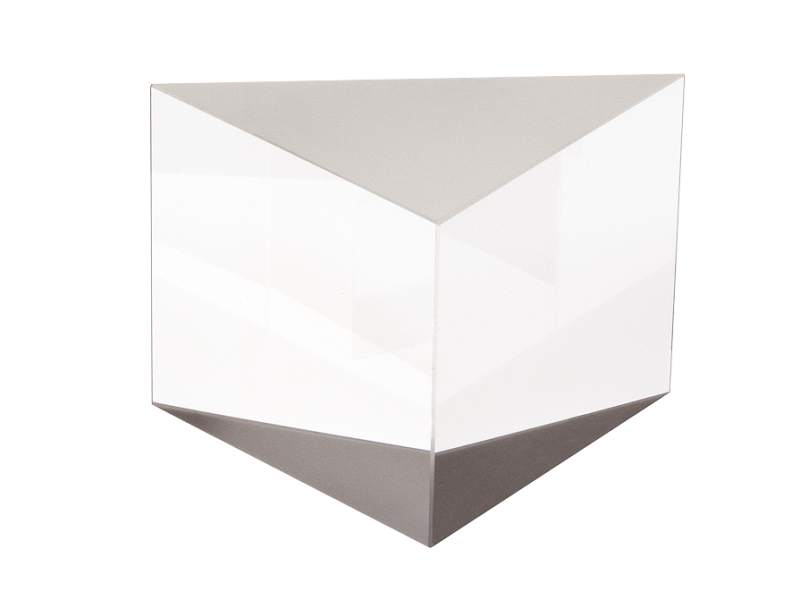

The 10BR08 Precision Right-Angle Prism is precision polished to tight tolerances for more demanding applications. This uncoated N-BK7 prism is 1 x 1 inch (25.4 x 25.4 mm) and 1 inch (25.4 mm) thick. It has a λ/4 surface flatness and a 20-10 surface quality. It is recommended for general laboratory use. By means of total internal reflection (TIR), a right-angle prism may be used as a 90° reflector or as a 180° retroreflector. Except for reflection losses from the entry and exit faces, TIR exhibits 100% reflectivity over a very large wavelength range.

Specifications

Technical Specs

Wavelength Range
Visible and NIR
Size
25.4 mm
Material
N-BK7
Coating Type
Uncoated
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/4 at 632.8 nm

Clear Aperture
≥central 80%
Size Tolerance
+0/-0.25 mm
Chamfers
0.25–0.50 mm face width
Chamfers Angle Tolerance
45° ±15°

Wavelength Range
Visible and NIR
Size
25.4 mm
Material
N-BK7
Coating Type
Uncoated
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/4 at 632.8 nm

Clear Aperture
≥central 80%
Size Tolerance
+0/-0.25 mm
Chamfers
0.25–0.50 mm face width
Chamfers Angle Tolerance
45° ±15°

Resources & Downloads

Other

10BR08 RoHS Certificate(709.3 kB, PDF)

2D Product Drawings

PRISM-DWG.pdf(89.5 kB, PDF)
