Compare Model Drawings, CAD & Specs Diameter Focal Length Edge Thickness (Te) OEM Compatibility Availability Price
61001-117
$325
In Stock
 61001-117 38.1 mm 5.13 in. 7.1 mm Cincinnati®
In Stock
 $325
61002-117
$325
In Stock
 61002-117 38.1 mm 7.63 in. 8.0 mm Cincinnati®
In Stock
 $325
61019-117
$540
In Stock
 61019-117 50.8 mm 5.0 in. 9.65 mm Mazak®
In Stock
 $540
61405-117
$540
In Stock
 61405-117 50.8 mm 7.5 in. 9.65 mm Mazak®
In Stock
 $540
62649-117
$325
In Stock
 62649-117 38.1 mm 7.5 in. 7.6 mm Amada®
In Stock
 $325
62670-117
$325
In Stock
 62670-117 38.1 mm 5.0 in. 7.6 mm Amada®
In Stock
 $325
62728-117
$500
In Stock
 62728-117 50.8 mm 5.0 in. 7.9 mm Mitsubishi®
In Stock
 $500
62729-117
$500
In Stock
 62729-117 50.8 mm 7.5 in. 7.9 mm Mitsubishi®
In Stock
 $500

Specifications

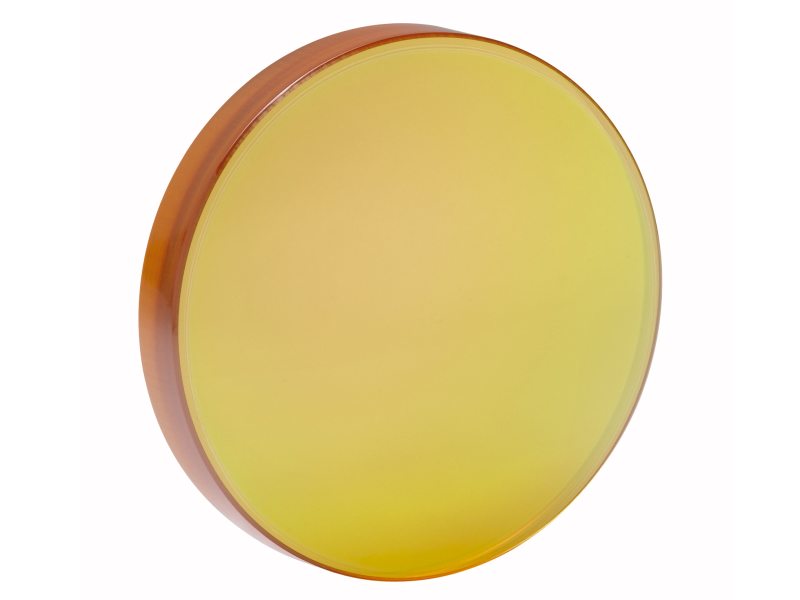

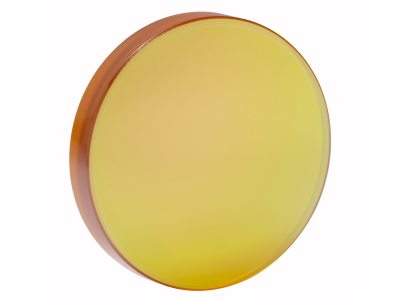

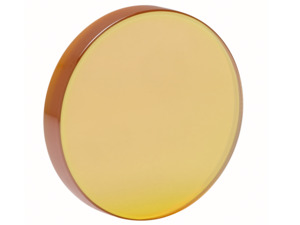

  • Lens Shape
    Plano-Convex
  • Lens Material
    Zinc Selenide (ZnSe)
  • Coating Type
    DURALENS™
  • Absorption
    <0.20%
  • Transmission
    >99.3%
  • Reflectivity
    <0.2%
  • Surface Accuracy, Irregularity
    0.5 Fringe @ 0.633 µm
  • Surface Figure
    2 Fringes @ 0.633 µm
  • Diameter Tolerance
    +0.0/-0.1 mm
  • Edge Thickness Tolerance
    ±0.1 mm
  • Clear Aperture
    ≥90%
