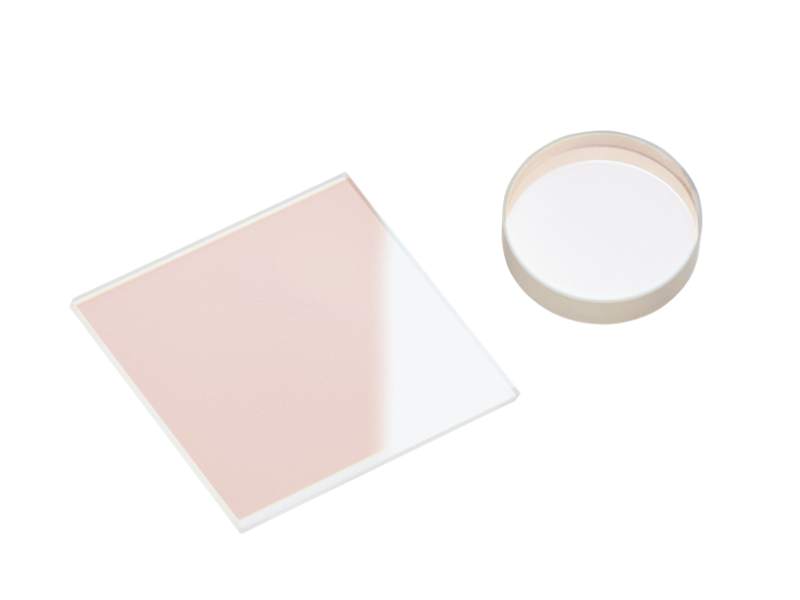

Compare Model Drawings, CAD & Specs Availability Price
UVBS10-1
UV Beamsplitter, 10.0 mm Diameter, 1.00 mm Thickness, 50R/50T ratio
$114
UVBS10-1 UV Beamsplitter, 10.0 mm Diameter, 1.00 mm Thickness, 50R/50T ratio $114
UVBS11-1
UV Beamsplitter, 12.5 mm Diameter, 2.00 mm Thickness, 50R/50T ratio
$120
UVBS11-1 UV Beamsplitter, 12.5 mm Diameter, 2.00 mm Thickness, 50R/50T ratio $120
UVBS12-1
UV Beamsplitter, 12.50 x 12.50 mm, 2.00 mm Thickness, 50R/50T ratio
$120
UVBS12-1 UV Beamsplitter, 12.50 x 12.50 mm, 2.00 mm Thickness, 50R/50T ratio $120
UVBS13-1
UV Beamsplitter, 20.0 mm Diameter, 2.00 mm Thickness, 50R/50T ratio
$145
UVBS13-1 UV Beamsplitter, 20.0 mm Diameter, 2.00 mm Thickness, 50R/50T ratio $145
UVBS14-1

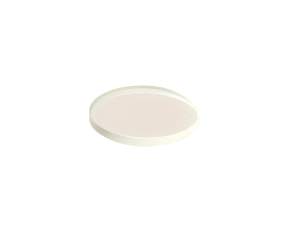

UV Beamsplitter, 25.0 mm Diameter, 2.00 mm Thickness, 50R/50T ratio
$145
Contact Us
 UVBS14-1 UV Beamsplitter, 25.0 mm Diameter, 2.00 mm Thickness, 50R/50T ratio
Contact Us
 $145
UVBS15-1

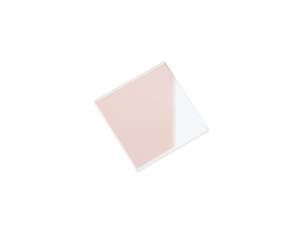

UV Beamsplitter, 25.0 x 25.0 mm, 2.00 mm Thickness, 50R/50T ratio
$145
UVBS15-1 UV Beamsplitter, 25.0 x 25.0 mm, 2.00 mm Thickness, 50R/50T ratio $145
UVBS16-1
UV Beamsplitter, 30.0 mm Diameter, 3.00 mm Thickness, 50R/50T ratio
$182
UVBS16-1 UV Beamsplitter, 30.0 mm Diameter, 3.00 mm Thickness, 50R/50T ratio $182
UVBS17-1
UV Beamsplitter, 40.0 mm Diameter, 4.00 mm Thickness, 50R/50T ratio
$211
UVBS17-1 UV Beamsplitter, 40.0 mm Diameter, 4.00 mm Thickness, 50R/50T ratio $211
UVBS18-1
UV Beamsplitter, 50.0 mm Diameter, 4.00 mm Thickness, 50R/50T ratio
$248
Contact Us
 UVBS18-1 UV Beamsplitter, 50.0 mm Diameter, 4.00 mm Thickness, 50R/50T ratio
Contact Us
 $248
UVBS19-1
UV Beamsplitter, 50.0 x 50.0 mm, 4.00 mm Thickness, 50R/50T ratio
$248
UVBS19-1 UV Beamsplitter, 50.0 x 50.0 mm, 4.00 mm Thickness, 50R/50T ratio $248
UVBS10-2
UV Beamsplitter, 10.0 mm Diameter, 1.00 mm Thickness, 30R/70T ratio
$120
UVBS10-2 UV Beamsplitter, 10.0 mm Diameter, 1.00 mm Thickness, 30R/70T ratio $120
UVBS11-2
UV Beamsplitter, 12.5 mm Diameter, 2.00 mm Thickness, 30R/70T ratio
$123
Contact Us
 UVBS11-2 UV Beamsplitter, 12.5 mm Diameter, 2.00 mm Thickness, 30R/70T ratio
Contact Us
 $123
UVBS12-2
UV Beamsplitter, 12.50 x 12.50 mm, 2.00 mm Thickness, 30R/70T ratio
$123
7 Weeks
 UVBS12-2 UV Beamsplitter, 12.50 x 12.50 mm, 2.00 mm Thickness, 30R/70T ratio
7 Weeks
 $123
UVBS13-2
UV Beamsplitter, 20.0 mm Diameter, 2.00 mm Thickness, 30R/70T ratio
$146
UVBS13-2 UV Beamsplitter, 20.0 mm Diameter, 2.00 mm Thickness, 30R/70T ratio $146
UVBS14-2
UV Beamsplitter, 25.0 mm Diameter, 2.00 mm Thickness, 30R/70T ratio
$146
UVBS14-2 UV Beamsplitter, 25.0 mm Diameter, 2.00 mm Thickness, 30R/70T ratio $146
UVBS15-2
UV Beamsplitter, 25.0 x 25.0 mm, 2.00 mm Thickness, 30R/70T ratio
$146
UVBS15-2 UV Beamsplitter, 25.0 x 25.0 mm, 2.00 mm Thickness, 30R/70T ratio $146
UVBS16-2
UV Beamsplitter, 30.0 mm Diameter, 3.00 mm Thickness,30R/70T ratio
$185
UVBS16-2 UV Beamsplitter, 30.0 mm Diameter, 3.00 mm Thickness,30R/70T ratio $185
UVBS17-2
UV Beamsplitter, 40.0 mm Diameter, 4.00 mm Thickness, 30R/70T ratio
$216
Contact Us
 UVBS17-2 UV Beamsplitter, 40.0 mm Diameter, 4.00 mm Thickness, 30R/70T ratio
Contact Us
 $216
UVBS18-2
UV Beamsplitter, 50.0 mm Diameter, 4.00 mm Thickness, 30R/70T ratio
$253
UVBS18-2 UV Beamsplitter, 50.0 mm Diameter, 4.00 mm Thickness, 30R/70T ratio $253
UVBS19-2
UV Beamsplitter, 50.0 x 50.0 mm, 4.00 mm Thickness, 30R/70T ratio
$253
UVBS19-2 UV Beamsplitter, 50.0 x 50.0 mm, 4.00 mm Thickness, 30R/70T ratio $253

Specifications

  • Wavelength Range
    250-450 nm
  • Material
    UV Grade Fused Silica
  • Coating Second Surface
    Antireflection (Ravg <1%, Rabs <2%)
  • Angle of Incidence
    45°±3°
  • Surface Flatness
    ≤1 λ at 632.8 nm over the clear aperture
  • Surface Quality
    60-40 scratch-dig
  • Diameter Tolerance
    +0.0/-0.2 mm
  • Thickness Tolerance
    ±0.38 mm
  • Parallelism
    < 5 arc minutes
  • Clear Aperture
    > central 85% of diameter
  • Chamfers Angle Tolerance
    45° ±15°
  • Cleaning
    See How to Clean Optics

Features

UV Fused Silica Substrates for UV Applications

UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

50/50 or 30/70 Beamsplitting

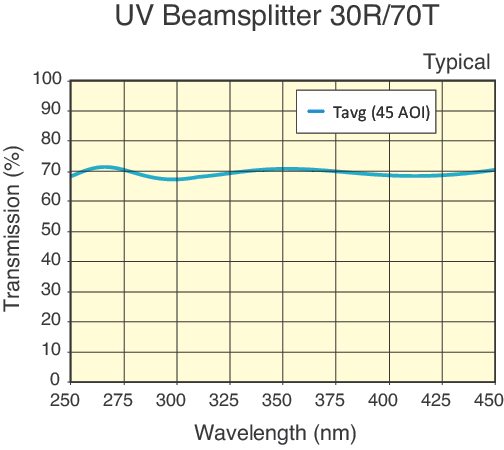

The UV beamsplitters are designed for a 45 degree angle of incidence, and are available in 50/50 and 30/70 reflectance/transmittance ratios in 250-450 nm spectral range. The choice of the beamsplitting ratios allows the scientist to use this beamsplitter in multiple applications that may require an even split or a 30/70 split. The beamsplitters are also provided with a broadband anti-reflection coating on the back surface to minimize any ghosting.
