Optical Table Earthquake Restraints

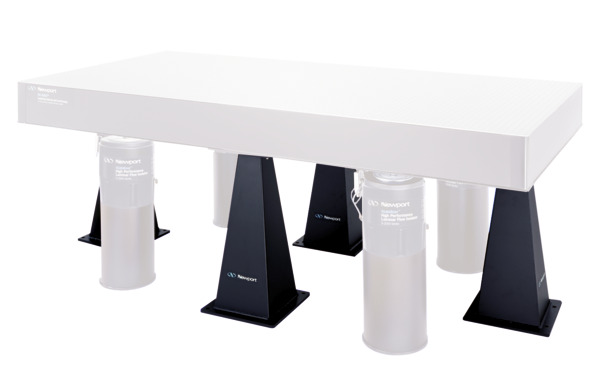

ERS2010 Earthquake Restraint system is designed to restrict the motion of Newport Optical Tables in the event of an earthquake.

2018 International Building Code (IBC) and 2019 California Building Code (CBC)
Does not affect optical table performance
Set of Four Earthquake restraints can withstand an 8000 lb (3636 kg)
Custom heights and configurations available

See All Features

Show Filters:

Showing 15 of 15 total products

Compatibility:

Description	Compatibility	Type	Height	Pack Quantity	Avail.	Price
ERS2010-116Earthquake Restraint, Optical Table, 16 in., Requires Mounting Kit	UNIVERSAL	Table Earthquake Restraint	16 in.	1	4 Weeks	$1,162
ERS2010-119.5Earthquake Restraint, Optical Table, 19.5 in., Requires Mounting Kit	UNIVERSAL	Table Earthquake Restraint	19.5 in.	1	2 Weeks	$1,162
ERS2010-122Earthquake Restraint, Optical Table, 22 in., Requires Mounting Kit	UNIVERSAL	Table Earthquake Restraint	22 in.	1	4 Weeks	$1,162
ERS2010-123.5Earthquake Restraint, Optical Table, 23.5 in., Requires Mounting Kit	UNIVERSAL	Table Earthquake Restraint	23.5 in.	1	In Stock	$1,162
ERS2010-128Earthquake Restraint, Optical Table, 28 in., Requires Mounting Kit	UNIVERSAL	Table Earthquake Restraint	28 in.	1	2 Weeks	$1,162
ERS2010-316Earthquake Restraint Set, 16 in., Requires Mounting Kit, Qty 3	UNIVERSAL	Earthquake Restraint Set	16 in.	3	4 Weeks	$3,189
ERS2010-319.5Earthquake Restraint Set, 19.5 in., Requires Mounting Kit, Qty 3	UNIVERSAL	Earthquake Restraint Set	19.5 in.	3	2 Weeks	$3,189
ERS2010-322Earthquake Restraint Set, 22 in., Requires Mounting Kit, Qty 3	UNIVERSAL	Earthquake Restraint Set	22 in.	3	2 Weeks	$3,189
ERS2010-323.5Earthquake Restraint Set, 23.5 in., Requires Mounting Kit, Qty 3	UNIVERSAL	Earthquake Restraint Set	23.5 in.	3	2 Weeks	$3,189
ERS2010-328Earthquake Restraint Set, 28 in., Requires Mounting Kit, Qty 3	UNIVERSAL	Earthquake Restraint Set	28 in.	3	2 Weeks	$3,189
ERS2010-416Earthquake Restraint Set, 16 in., Requires Mounting Kit, Qty 4	UNIVERSAL	Earthquake Restraint Set	16 in.	4	2 Weeks	$3,897
ERS2010-419.5Earthquake Restraint Set, 19.5 in., Requires Mounting Kit, Qty 4	UNIVERSAL	Earthquake Restraint Set	19.5 in.	4	2 Weeks	$3,897
ERS2010-422Earthquake Restraint Set, 22 in., Requires Mounting Kit, Qty 4	UNIVERSAL	Earthquake Restraint Set	22 in.	4	2 Weeks	$3,897
ERS2010-423.5Earthquake Restraint Set, 23.5 in., Requires Mounting Kit, Qty 4	UNIVERSAL	Earthquake Restraint Set	23.5 in.	4	2 Weeks	$3,897
ERS2010-428Earthquake Restraint Set, 28 in., Requires Mounting Kit, Qty 4	UNIVERSAL	Earthquake Restraint Set	28 in.	4	2 Weeks	$3,897

Show Less

Features

Sturdy Protection for Your System

The earthquake loads due to movement of the table and payload are transferred into the concrete floor by eight (8) anchor bolts per Earthquake Restraint. The anchor bolts (Hilti HIT RE500 SD per ICC ESR2322, 3/8 in. diameter bolts and HIS-N inserts embedded 4-3/8”) are designed for use in concrete floors at least 6 inches (150 mm) thick constructed of 2,500 psi (17.3 megapascal) minimum normal-weight concrete in an uncracked condition. If any of these conditions are not met, additional analysis and detailing by a structural engineer will be required. The earthquake loads are distributed into the optical table bottom skin by eight (8) M6-1.0 socket head cap screws pre restraint.

System Requirements

Each ERS2010 is rated for seismic forces generated by a maximum of 2000 pounds (908 Kg.) of combined table and payload weight per restraint. However, in order to prevent possible tipping of a table during or after an earthquake, three or more ERS2010 Restraints - located as far apart as possible at the perimeter of the table system - must be used even though the load per ERS2010 is less than the specified maximum. The ERS2010 Earthquake Restraint system is intended to work in conjunction with Newport S-2000 or I-2000 pneumatic isolators with rated load capacity 2000 lbs. The ERS2010 is designed to withstand the earthquake loads corresponding to, or lower than, the 2018 IBC seismic accelerations Ss=2.50, S1=1.00 (for example, Hayward, CA). The design of the Restraint is in compliance with 2018 International Building Code (IBC) and 2019 California Building Code (CBC).

Accessories

Earthquake Restraint Mounting Kits

Description	Compatibility	Avail.	Price
MD2500Epoxy Dispenser, Manual	UNIVERSAL	5 Weeks	$266
ERS2010-1-KT-AMounting Kit, Earthquake Restraint, Mounting Hardware & Epoxy	UNIVERSAL	2 Weeks	$389
ERS2010-1-KT-BMounting Kit, Earthquake Restraint, Mounting Hardware, No Epoxy	UNIVERSAL	2 Weeks	$239
ERS2010-3-KTMounting Kit, Three Earthquake Restraints, Mounting Hardware & Epoxy	UNIVERSAL	2 Weeks	$781
ERS2010-4-KTMounting Kit, Four Earthquake Restraints, Mounting Hardware & Epoxy	UNIVERSAL	2 Weeks	$977
