Compare Model Drawings, CAD & Specs Isolator Height Number of Isolators Availability Price
Optical Table Support Set, Rigid, 10 in., 8,000 lb., Tie-bar Flange, Qty 4
$2,393
4 Weeks
10 in. (254 mm) 4
4 Weeks
Optical Table Support Set, Rigid, 19.5 in., 8,000 lb., Tie-bar Flange, Qty 4
$2,442
In Stock
19.5 in. (495.3 mm) 4
In Stock
Optical Table Support Set, Rigid, 22 in., 8,000 lb., Tie-bar Flange, Qty 4
$2,393
4 Weeks
22 in. (558.8 mm) 4
4 Weeks
Optical Table Support Set, Rigid, 23.5 in., 8,000 lb., Tie-bar Flange, Qty 4
$2,442
4 Weeks
23.5 in. (596.9 mm) 4
4 Weeks
Optical Table Support Set, Rigid, 28 in., 8,000 lb., Tie-bar Flange, Qty 4
$2,442
4 Weeks
28 in. (711.2 mm) 4
4 Weeks

Specifications

  • Type
    Rigid Optical Table Support with Tie-Bar Flange
  • Load Capacity per Isolator
    2000 lb (907 kg)
  • Tie Bar Flange
    Yes
  • Height Adjustment
    + 0.75/-0.40 in. (+19/-10 mm)

Features

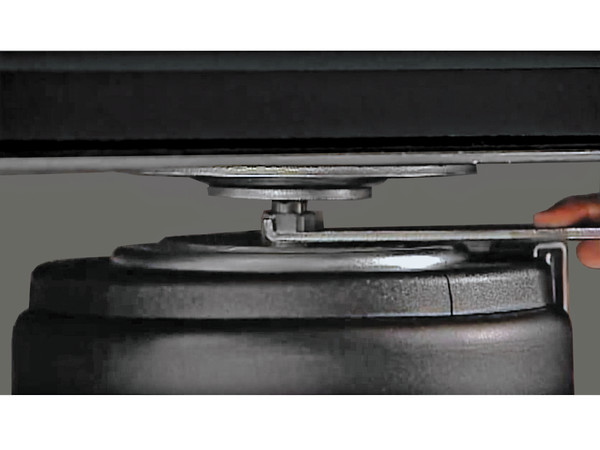

1.15 inch Height Adjustment Capability

Apart from its superior isolation design, RL-2000-xxTC Rigid Optical Table Supports also features robust and user friendly mechanical design for better user experience. Newport is the only manufacturer that provides 1.15 inches of height adjustment compensation in the isolator to allow for easy leveling of the entire system or alignment of separate tables. Compared to competitor's solution of using shims or putty before installation, Newport's design brings ease to fine-tuning the isolator height.

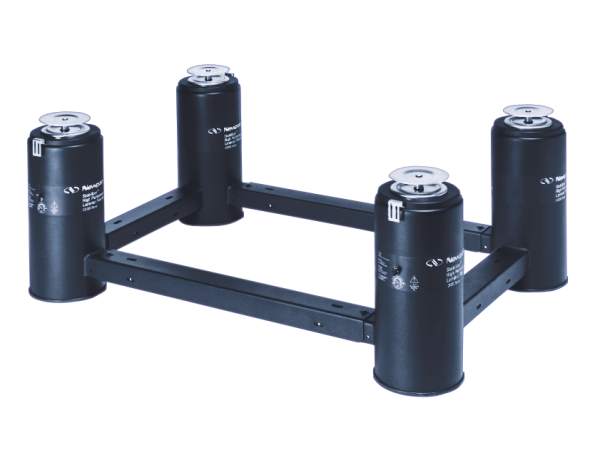

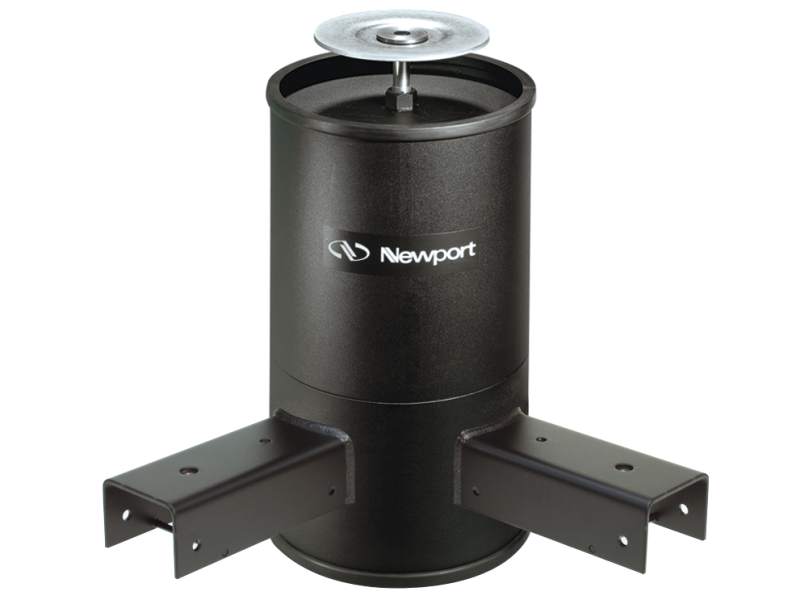

Compatible with Optical Table Tie Bars

Optical table supports with a tie bar flange are compatible with our optical table support tie-bar systems. Optical table support tie-bars increase the stability of your optical table. They are available in kits for various standard size optical tables with and without casters for moving the table system. We also offer complete optical table and support systems that include the optical table, isolators, and support frames that incorporate tie-bars between the isolators.
