Optical Table Support Set, Rigid, 10 in., 8,000 lb., Tie-bar Flange, Qty 4

RL Rigid Optical Table Supports with Tie Bar Flange

The RL-2000-410TC Non-Isolating LabLegs™ Set offers rigid support where vibration isolation is not required. The set includes (4) 10 inch rigid legs with a 8000 lb total capacity and tie-bar flanges. Unlike cross member support systems, the freestanding design does not amplify low frequency floor vibrations. The height adjustable RL Series is an excellent choice for off table target pointing applications.

Specifications

Technical Specs

Load Capacity per Isolator
2000 lb (907 kg)
Isolator Height
10 in. (254 mm)
Number of Isolators
4
Tie Bar Flange
Yes

Height Adjustment
+ 0.75/-0.40 in.
(+19/-10 mm)
Crated Weight
200 lb

Load Capacity per Isolator
2000 lb (907 kg)
Isolator Height
10 in. (254 mm)
Number of Isolators
4
Tie Bar Flange
Yes

Height Adjustment
+ 0.75/-0.40 in.
(+19/-10 mm)
Crated Weight
200 lb

Resources & Downloads

Manuals

RL SL Manual Rev. C(221.1 kB, PDF)

Other

RL-2000-410TC RoHS Certificate(279.3 kB, PDF)

2D Product Drawings

RL-2000-4XTC Drawing(21.2 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

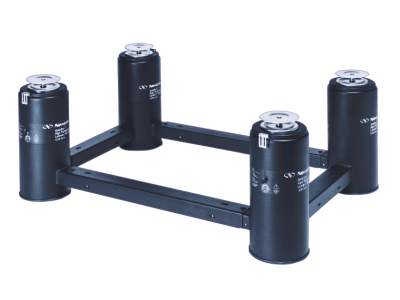

		optical-table-tie-bar-systemsOptical Table Tie-Bar Systems	UNIVERSAL
