New Modal Damped Vision IsoStation™ Plus Rigid Optical Workstations
New Modal Damped Vision IsoStation™ Plus Rigid Optical Workstations

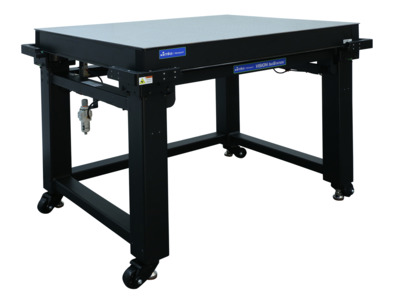

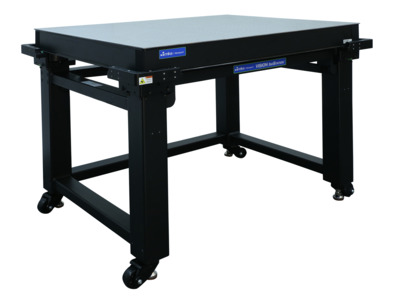

Precision Grade (PG) Vision IsoStation™ Plus Rigid Optical Workstations feature PG Series modal damped optical breadboards mounted on a redesigned rigid frame optimized for ergonomics, mobility, and flexibility. Optimized for non‑isolated applications, the rigid Plus platform delivers improved performance and setup efficiency, supports the full Vision workstation accessory ecosystem, and enables future upgrade to pneumatic vibration isolation.
- PG Series breadboard with ±0.004 in. surface flatness over any 2 ft. square
- Patented modal dampers dissipate vibrations evenly, quickly and effectively
- Rigid support legs with field upgradability to pneumatic isolation
- Ergonomic front brace for ample legroom
- Shipped fully assembled for fast & easy installation
- Wide variety of accessories to customize your workstation See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | New M-VIS3030-PG2-N | 8 Weeks | ||||
| New M-VIS3030-PG4-N | 8 Weeks | ||||
| New M-VIS3036-PG2-N | 8 Weeks | ||||
| New M-VIS3036-PG4-N | 8 Weeks | ||||
| New M-VIS3048-PG2-N | 8 Weeks | ||||
| New M-VIS3048-PG4-N | 8 Weeks | ||||
| New M-VIS3636-PG2-N | 8 Weeks | ||||
| New M-VIS3636-PG4-N | 8 Weeks | ||||
| New M-VIS3648-PG2-N | 8 Weeks | ||||
| New M-VIS3648-PG4-N | 8 Weeks |
Specifications
- TypeVision Isostation Optical Workstation
- PlatformPrecision Grade Optical Breadboard
- Modal DampingPatented modal dampers in all four side panels
- Broadband DampingConstrained layer core, damped working surface, and composite edge finish
- Working Surface4.8 mm thick ferromagnetic 430 stainless steel
- Surface Flatness±0.004 in. (0.1 mm) over 2 ft. (600 mm) square
- Core DesignTrussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface
- Bottom Skin Material3.4 mm thick carbon steel
- Mounting Holes1/4-20
M6 (M- Versions) - Mounting Hole Pattern1.0 in. grid
25 mm grid (M- Versions) - Mounting Hole Borders0.5 in.
12.5 mm (M- Versions) - Mounting Hole TypeCut (not rolled) threads with countersink
- Hole Sealing TypeEasy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Features
Patented Modal Dampers for Highest Damping Performance
Our precision grade modal damped optical breadboards combine patented modal damping technology and a unique integrated broadband damping design to deliver supreme performance and reliability for the most critical applications. Patented modal damping technology (US 6,598,545) utilizes two pieces of uniquely designed dampers combined using specially chosen elastomers, to dissipate the vibrations evenly, quickly and effectively. The modal dampers are installed as the side panels along all four sides of the breadboard, ensuring superior damping performance. The red curve in the compliance curve shows the superior performance provided by modal damping compared to our scientific grade optical breadboards without modal dampers (shown in light blue).
Innovatively Designed Platform Interface
Vision IsoStations feature a unique platform interface consisted of 4 corner constraints that act as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features float height indicators and frame bubble levels to make set-up and installation easier than ever. These same features are also useful when the system is relocated to another lab or if system performance needs to be verified.
Shipped Fully Assembled for Easy Installation
Another unique feature of Vision IsoStation is that we have designed a new shipping package that not only reduces packaging materials but also allows users to simply roll their system off into their lab, it’s as plug-and-play as can be! Since the breadboard is shipped pre-installed on the frame customers no longer need to lift the heavy breadboard during installation.

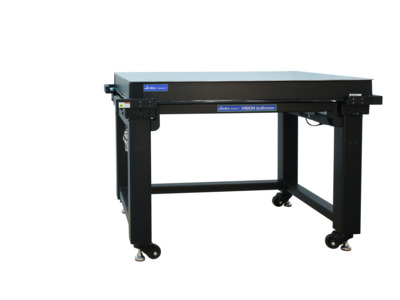

Field Upgradability from Rigid Frame to Isolated Frame
Vision IsoStation was designed with the maximum user flexibility in mind. When you purchase a rigid frame version of the workstation and later decide to upgrade to isolated frame, simply contact Newport and order an upgrade kit that allows you to upgrade your system in the field easily.
Vision IsoStation Optical Workstation Available Accessories
Vision IsoStation accessories are designed specifically for modern scientific and biological investigations. Visit Vision IsoStation Accessories to learn more about the ergonomic accessories offered to complete your system.
Vision IsoStation™ Optical Workstation Overview
Vision IsoStation™ Plus Optical Workstations provide industry leading performance and more user friendly features and accessories designed specifically to improve ease of installation, set-up and lab space utilization.
Vision IsoStation™ Optical Workstation Installation
Designed for fast installation and ease of use, the Newport Vision IsoStation™ can be ready for operation in just a few simple steps. Follow this guide to unbox, level, and activate your pneumatic isolation system for reliable performance.
Resources
Literature
Vision IsoStation™ Plus Optical Workstation Brochure(3.6 MB, PDF)
