Polarcor™ Dichroic Glass Linear Polarizers
Polarcor™ Dichroic Glass Linear Polarizers
Polarcor™ linear polarizers offer high contrast, high transmission, low wavefront distortion and a wide acceptance angle. The polarizing material – a borosilicate glass with aligned silver particles – is coated with a broadband anti-reflection coating and mounted in a 0.5- or 1-in. diameter aluminum housing. Polarcor polarizers outperform dichroic sheets, wire grid polarizers and polarizing cubes while being less expensive than calcite polarizers.
- Extinction ratio better than 10,000:1
- Wide acceptance angle
- Low wavefront distortion
- High transmission See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 05P009AR.14Linear Polarizer, Polarcor, 10,000:1, 630-700 nm, 12.7 mm | In Stock | ||||
| 05P109AR.16Linear Polarizer, Polarcor, 10,000:1, 740-860 nm, 12.7 mm | |||||
| 05P309AR.16Linear Polarizer, Polarcor, 10,000:1, 960-1160 nm, 12.7 mm | |||||
| 05P509AR.18Linear Polarizer, Polarcor, 10,000:1, 1500-1580 nm, 12.7 mm | 5 Weeks | ||||
 | 10P009AR.14Linear Polarizer, Polarcor, 10,000:1, 630-700 nm, 25.4 mm | |||||
| 10P109AR.16Linear Polarizer, Polarcor, 10,000:1, 740-860 nm, 25.4 mm | |||||
| 10P309AR.16Linear Polarizer, Polarcor, 10,000:1, 960-1160 nm, 25.4 mm |
Mounting Options
Manual Rotation Mounts
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | ( |
|||||
| Retaining Thread | 1.063-20 | |||||
| Compatible Optic Diameter* | 25.4 mm 12.7 mm ( |
|||||
| Special Features | 1 in. Mirror Mounts Compatibility | OpticsCage+™ Compatibility | Tip&Tilt Adjustments | Fine Adjustments | ||
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | ( |
( |
( ( |
|||
| Retaining Thread | 0.546-32 | 1.040-32 | 1.035-40 | 1.063-20 | 2.063-20 1.063-20 |
– |
| Compatible Optic Diameter* | 12.7 mm | 25.4 mm | 25.4 mm 12.7 mm ( |
50.8 mm 25.4 mm 12.7 mm ( |
50.8 mm ( 38.1 mm ( 25.4 mm ( 12.7 mm ( 6.35 mm ( |
|
| Special Features | Compact | Stackable | A-Line™ Compatibility | Fine Adjustments | Quick Exchange | |
Motorized Rotation Mounts
 |
 |
 |
 |
|
|---|---|---|---|---|
| Models | ( |
( ( |
||
| Retaining Thread | 1.040-32 | 1.063-20 | 1.563-20 | |
| Compatible Optic Diameters* | 25.4 mm | 25.4 mm 12.7 mm |
||
*The adapter in parentheses is required for the optic size before it.
Specifications
- MaterialPolarcor
- Polarizing MaterialBorosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
- Extinction Ratio10000:1
- Damage Threshold7.5 J/cm2, 10 ns pulses, 10 Hz
- Surface Quality40-20 scratch-dig
- EfficiencyTp/Ts >10,000:1; k1/k2 >10,000:1 in the specified wavelength range
- Diameter Tolerance±0.1 mm
- Transmitted Beam Deviation≤2.6 arc min
- Acceptance Angle0-30°
- Wedge≤20 arc sec
- Maximum Temperature400°C
Features

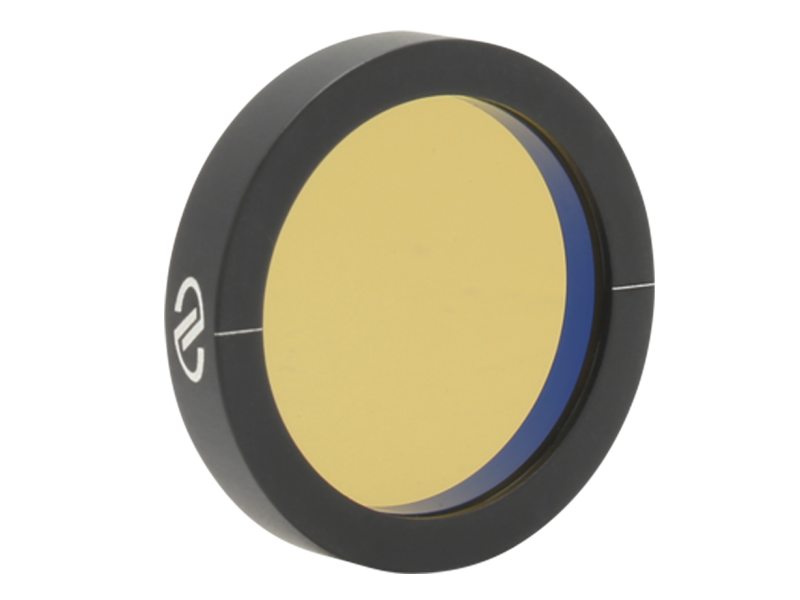

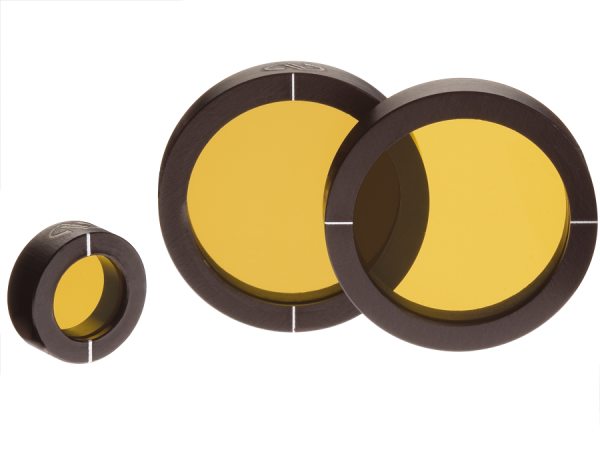

Black Anodized Aluminum Mounting Ring
The 0.5 mm thick polarizer is mounted in a black anodized aluminum housing for protection and ease of handling. The standard 12.7 and 25.4 mm outer diameters are convenient for mounting into Newport’s rotary mounts. Each black anodized aluminum housing is marked on the front with reference marks, indicating the direction of the transmission axis.

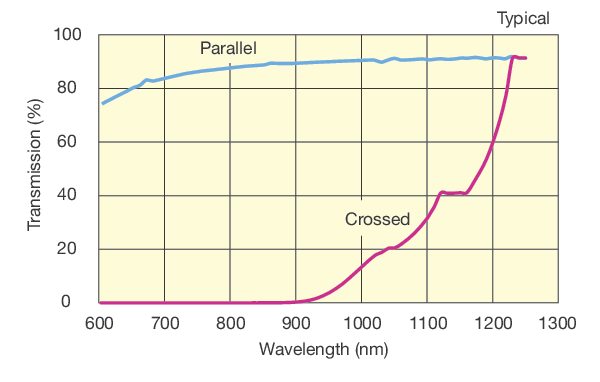

630-700 nm Wavelength Range
Our xxP009AR.14 polarizers are recommended for 630-700 nm wavelength applications. These polarizers are coated with AR.14 antireflection coating to increase the principle transmission to 79% in the designed wavelength range.
740-860 nm Wavelength Range
Our xxP109AR.16 polarizers are recommended for 740-860 nm wavelength applications. These polarizers are coated with AR.16 antireflection coating to increase the principle transmission to 89% in the designed wavelength range.
960-1160 nm Wavelength Range
Our xxP309AR.16 polarizers are recommended for 960-1160 nm wavelength applications. These polarizers are coated with AR.16 antireflection coating to increase the principle transmission to 90% in the designed wavelength range.

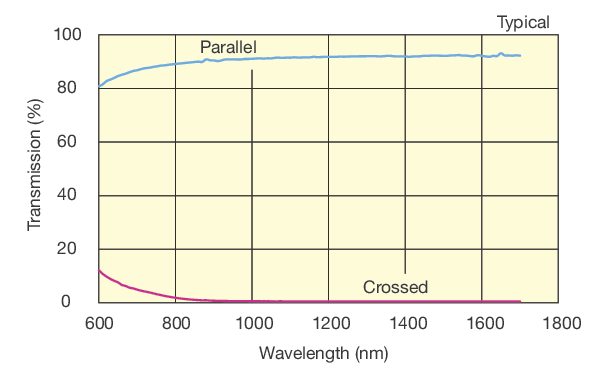

1500-1580 nm Wavelength Range
Our 05P509AR.18 polarizer is recommended for 1500-1580 nm wavelength applications. This polarizer is coated with AR.18 antireflection coating to increase the principle transmission to 94% in the designed wavelength range.
The Polarcor Advantage
Polarcor is a dichroic glass polarizer with an extinction ratio greater than 10,000:1 over a fairly broad wavelength range--greater than sheet polarizers or beamsplitter cubes. Performance characteristics such as extinction ratio, transmittance, and angular acceptance are comparable to Calcite polarizers at a much lower overall cost for great value. Compared to other simple sheet polarizers, transmission is relatively high, ranging from greater than 79% for the visible products to greater than 94% for the near infrared products.
