Linear Polarizer, Polarcor, 10,000:1, 740-860 nm, 12.7 mm

Polarcor Dichroic Glass Linear Polarizers

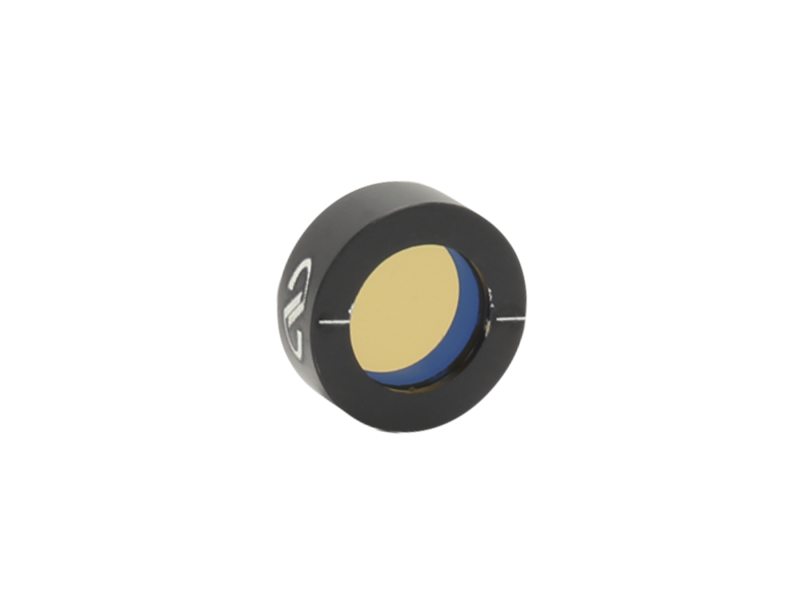

The 05P109AR.16 Polarcor™ Linear Polarizer is a 1/2 inch (12.7 mm) diameter linear polarizer with an 8.1 mm clear aperture offering 89% principle transmission in the 740 to 860 nm wavelength range. It features broader bandwidth, higher transmission, higher temperature resistance, better durability, and higher contrast than dichroic sheet or wire grid polarizers. All Polarcor polarizers are broadband antireflection coated to increase transmission of polarized light.

Specifications

Technical Specs

Diameter
12.7 mm
Wavelength Range
740-860 nm
Material
Polarcor
Polarizing Material
Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
Extinction Ratio
10000:1
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Efficiency
T_p/T_s >10,000:1; k₁/k₂ >10,000:1 in the specified wavelength range
Clear Aperture
8.1 mm
Diameter Tolerance
±0.1 mm

Transmitted Beam Deviation
≤2.6 arc min

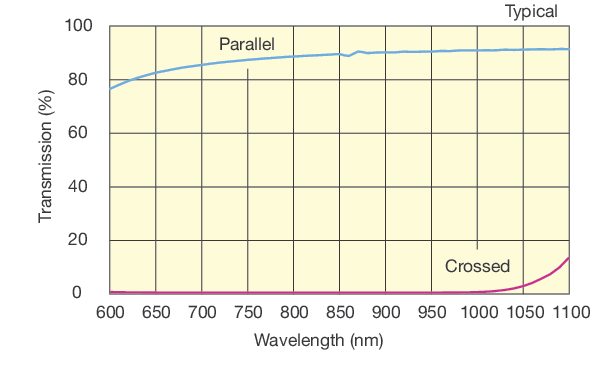

Principal Transmission
k₁ >89%
Acceptance Angle
0-30°
Wedge
≤20 arc sec
Thickness
0.5 mm
Wavefront Distortion
≤ λ/4 at 632.8 nm over the clear aperture
Maximum Temperature
400°C
Cleaning
See How to Clean Optics

Diameter
12.7 mm
Wavelength Range
740-860 nm
Material
Polarcor
Polarizing Material
Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
Extinction Ratio
10000:1
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Efficiency
T_p/T_s >10,000:1; k₁/k₂ >10,000:1 in the specified wavelength range
Clear Aperture
8.1 mm
Diameter Tolerance
±0.1 mm

Transmitted Beam Deviation
≤2.6 arc min
Principal Transmission
k₁ >89%
Acceptance Angle
0-30°
Wedge
≤20 arc sec
Thickness
0.5 mm
Wavefront Distortion
≤ λ/4 at 632.8 nm over the clear aperture
Maximum Temperature
400°C
Cleaning
See How to Clean Optics
