Linear Polarizer, Polarcor, 10,000:1, 630-700 nm, 12.7 mm

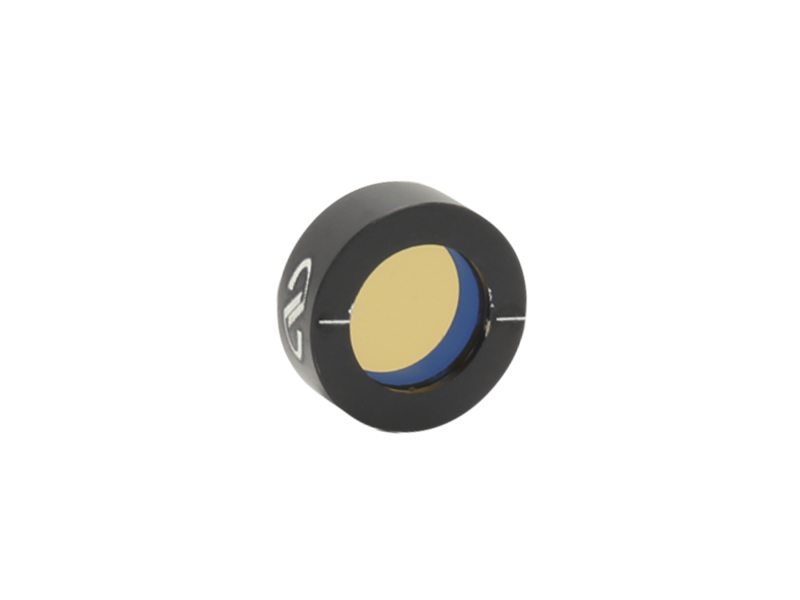

Polarcor Dichroic Glass Linear Polarizers

The 05P009AR.14 Polarcor™ Linear Polarizer is a 1/2 inch (12.7 mm) diameter linear polarizer with an 8.1 mm clear aperture offering 79% principle transmission in the 630 to 700 nm wavelength range. It features broader bandwidth, higher transmission, higher temperature resistance, better durability, and higher contrast than dichroic sheet or wire grid polarizers. All Polarcor polarizers are broadband antireflection coated to increase transmission of polarized light.

Specifications

Technical Specs

Diameter
12.7 mm
Wavelength Range
630-700 nm
Material
Polarcor
Polarizing Material
Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
Extinction Ratio
10000:1
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 532 nm
Surface Quality
40-20 scratch-dig
Efficiency
T_p/T_s >10,000:1; k₁/k₂ >10,000:1 in the specified wavelength range
Clear Aperture
8.1 mm
Diameter Tolerance
±0.1 mm

Transmitted Beam Deviation
≤2.6 arc min
Principal Transmission
k₁ >79%
Acceptance Angle
0-30°
Wedge
≤20 arc sec
Thickness
0.5 mm
Wavefront Distortion
≤ λ/4 at 632.8 nm over the clear aperture
Maximum Temperature
400°C
Cleaning
See How to Clean Optics

Diameter
12.7 mm
Wavelength Range
630-700 nm
Material
Polarcor
Polarizing Material
Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
Extinction Ratio
10000:1
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 532 nm
Surface Quality
40-20 scratch-dig
Efficiency
T_p/T_s >10,000:1; k₁/k₂ >10,000:1 in the specified wavelength range
Clear Aperture
8.1 mm
Diameter Tolerance
±0.1 mm

Transmitted Beam Deviation
≤2.6 arc min
Principal Transmission
k₁ >79%
Acceptance Angle
0-30°
Wedge
≤20 arc sec
Thickness
0.5 mm
Wavefront Distortion
≤ λ/4 at 632.8 nm over the clear aperture
Maximum Temperature
400°C
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

POLARCOR-S(69 kB, PDF)

Other

05P009AR.14 RoHS Certificate(264.6 kB, PDF)
AR.14 Raw Data.xlsx(63.9 kB, XLSX)

Related Products

Similar

Description	Compatibility	Avail.	Price

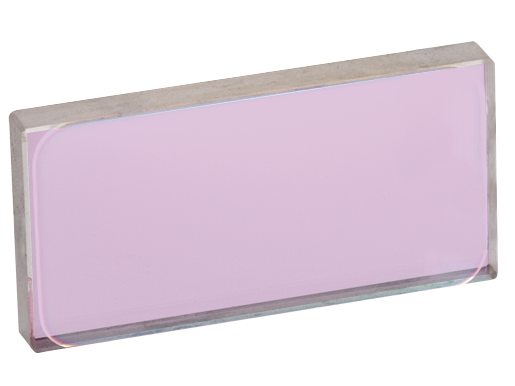

11B00HP.4Thin Film Polarizer, High-Energy Nd:YAG, N-BK7, 14.3 x 28.6 mm, 532 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$942

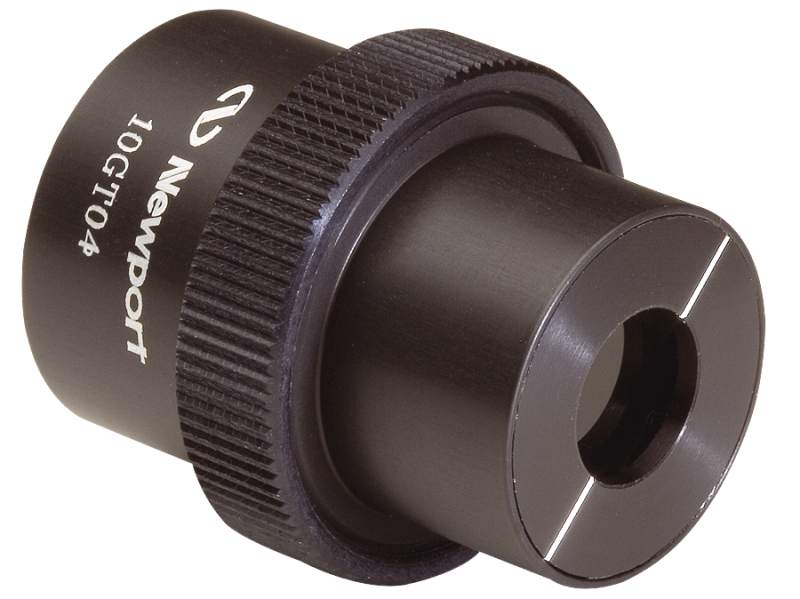

10GT04AR.14Polarizer, Glan-Thompson Calcite, 25.4 mm Diameter, 430 to 700 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,166
10GL08AR.14Glan-Laser Calcite Polarizer, 25.4 mm Diameter, 430 to 700 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,303

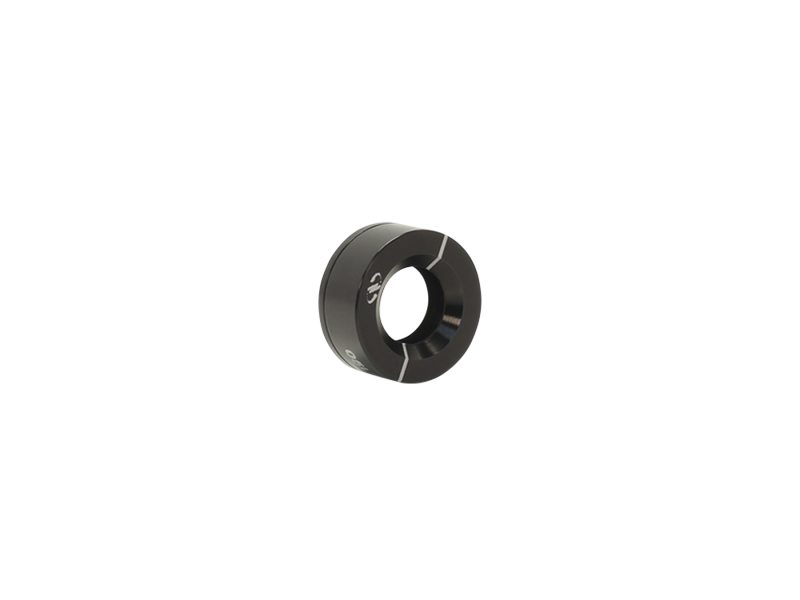

05LP-VIS-BLinear Polarizer, Polymer Film, 700:1, 430-670 nm, 12.7 mm	UNIVERSAL		$638
