Vacuum Compatible Picomotor™ Piezo Rotary Actuators

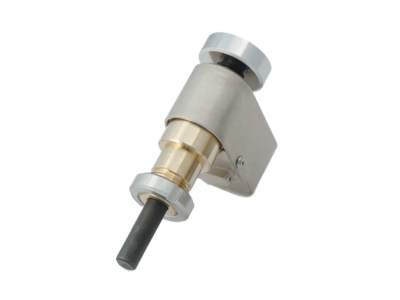

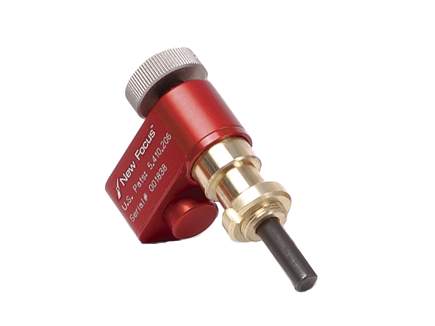

The vacuum Picomotor™ piezo rotary actuator provides for 3-4 RPM rotation without translation. It is ideal for rotating small optical components or mechanical devices from remote locations. The 0.375 in. diameter shank allows mounting like standard Picomotor actuators. A convenient flat on the end of the shaft allow solid coupling to external components.

Vacuum compatible rotary actuator
3 to 4 RPM rotation speed
360° travel range
Convenient flat on the end of the rotating shaft

See All Features

Showing 2 of 2 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Vacuum Compatibility	Avail.	Price
		8341-UHVPicomotor Actuator, Rotating, Ultra-High Vacuum	UNIVERSAL		10^-9 Torr	In Stock	$1,446
		8341-VPicomotor Actuator, Vacuum Compatible, Rotating Shaft	UNIVERSAL		10^-6 Torr	In Stock	$1,095

Specifications

Travel Range
360°
Maximum Speed
3-4 RPM
Mounting
9.5 mm Shank
Frequency
2 kHz

Cable Length
2.1 m
Connector Type
4-pin RJ-22 (non-vacuum-rated)
Operating Temperature
10-40° C

Resources

Tutorials

How the Picomotor Actuator Works

Technical Notes

Literature

Nanopositioning Solutions(9.3 MB, PDF)
Picomotor FAQ(3.1 MB, PDF)
DS-012305 8341V-UHV Datasheet(991 kB, PDF)

2D Product Drawings

8341-UHV-369(468.8 kB, PDF)
