Compare Model Drawings, CAD & Specs Mounting Holes Width Length Thickness Availability Price

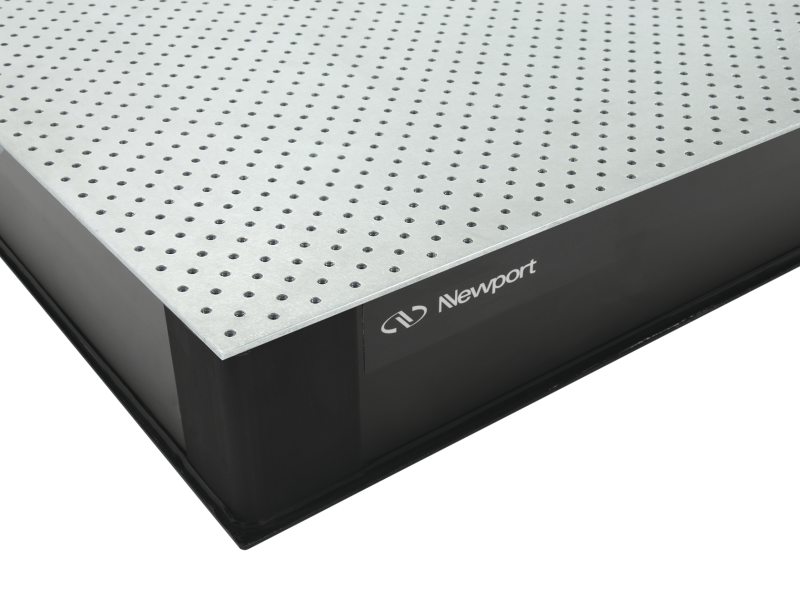

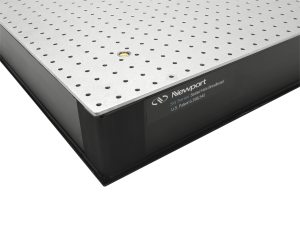

Optical Breadboard, Double Density, 4.8 mm Skin, 24 x 24 x 2.3 in., 1/4-20
$1,170
5 Weeks
1/4-20 24 in. 24 in. 2.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 24 x 36 x 2.3 in., 1/4-20
$1,395
5 Weeks
1/4-20 24 in. 36 in. 2.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 24 x 36 x 4.3 in., 1/4-20
$1,813
5 Weeks
1/4-20 24 in. 36 in. 4.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 24 x 48 x 2.3 in., 1/4-20
$1,651
5 Weeks
1/4-20 24 in. 48 in. 2.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 24 x 48 x 4.3 in., 1/4-20
$2,094
5 Weeks
1/4-20 24 in. 48 in. 4.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 36 x 60 x 2.3 in., 1/4-20
5 Weeks
1/4-20 36 in. 60 in. 2.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 36 x 60 x 4.3 in., 1/4-20
5 Weeks
1/4-20 36 in. 60 in. 4.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 36 x 72 x 2.3 in., 1/4-20
5 Weeks
1/4-20 36 in. 72 in. 2.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 36 x 72 x 4.3 in., 1/4-20
5 Weeks
1/4-20 36 in. 72 in. 4.3 in.
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 600 x 600 x 59 mm, M6 Holes
5 Weeks
M6 600 mm 600 mm 59 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 600 x 900 x 59 mm, M6 Holes
5 Weeks
M6 600 mm 900 mm 59 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 600 x 900 x 110 mm, M6
5 Weeks
M6 600 mm 900 mm 110 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 600 x 1200 x 59 mm, M6
5 Weeks
M6 600 mm 1200 mm 59 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 600 x 1200 x 110 mm, M6
5 Weeks
M6 600 mm 1200 mm 110 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 900 x 1500 x 59 mm, M6
5 Weeks
M6 900 mm 1500 mm 59 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 900 x 1500 x 110 mm, M6
5 Weeks
M6 900 mm 1500 mm 110 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 900 x 1800 x 59 mm, M6
5 Weeks
M6 900 mm 1800 mm 59 mm
5 Weeks
Optical Breadboard, Double Density, 4.8 mm Skin, 900 x 1800 x 110 mm, M6
5 Weeks
M6 900 mm 1800 mm 110 mm
5 Weeks

Specifications

  • Type
    Honeycomb Optical Breadboard
  • Modal Damping
    No
  • Broadband Damping
    Constrained layer core, damped working surface, and composite edge finish
  • Working Surface
    3/16 in. (4.8 mm) thick 430 ferromagnetic stainless steel
  • Surface Flatness
    ±0.004 in. (0.1 mm) over any 2 ft. (600 mm) square
  • Bottom Skin Material
    3.4 mm thick carbon steel
  • Microlocks
    No
  • Mounting Holes
    1/4-20
    M6 (M- Versions)
  • Mounting Hole Type
    Cut (not rolled) threads with countersink
  • Mounting Hole Pattern
    Two sets of 1.0 in. (25 mm for M- versions) grids with second grid centered on first grid
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Core Design
    Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface
