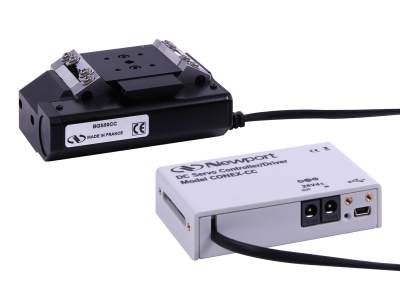

The affordable CONEX-BGS50CC goniometric cradle-controller unit has easy access to the load and allows for very compact multi-axis rotation assemblies. For tip and tilt applications, this unit can be stacked with other goniometers to rotate about a common pivot point.
DC Servo goniometer with motor mounted rotary encoder
Integrated with ultra-compact CONEX-CC controller and driver
Low-noise linear amplifier technology for smooth motion & less motor heating
Additional CAD file downloads are not available for this product.
dc-servo-goniometer-with-conex-cc - Drawings
Additional drawings are not available for this product.
Specifications
Travel Range
±30°
Centered Load Capacity
20 N
Maximum Speed
10°/s
Minimum Incremental Motion
0.50 mdeg
Drive Type
DC servo
Drive Mechanism
Ground worm gear
Limit Switches
Mechanical, at ± 30°
Origin Repeatability
±2.5 mdeg
Feedback
Motor mounted rotary encoder, 2,048 cts/rev
Bearings
Ball bearings
Control Loop
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Rotation Axis Height
20 mm
Weight
0.8 kg
Cable Length
3 m
MTBF
20,000 h
Features
Scalable Architecture
The CONEX-BGS50CC can be connected via daisy chain to create multi-axis systems. For added convenience, the power can be shared with up to 5 modules using the optional CONEX-PS-CB power chain cable. This allows for a convenient low cost multi-axis system. Additionally, analog and digital inputs can be implemented into the controller through the CONEX-IOD.
Out-of-the-box Control
For out-of-the box control, the CONEX-CC is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI.
Linear Amplifier
Low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors delivering smoother motion, with less electrical noise and significantly less motor heating.
DC Motor with Rotary Mounted Encoder
The BGS50CC uses a miniature DC servo motor with a motor mounted rotary encoder, reduction gear and belt drive which folds the motor. The result is a very small and lightweight package providing very high MIM of 0.0005°.
is an essential need to supply power to your Conex devices and it is purchased separately. The supplied power can be shared by modules using the optional CONEX-PS-CB
