Compact Faraday Optical Isolators
Compact Faraday Optical Isolators

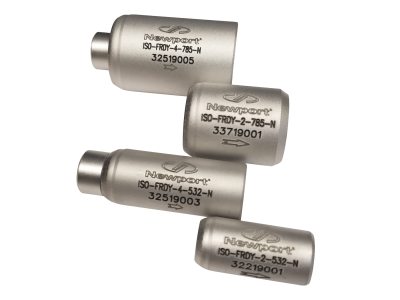

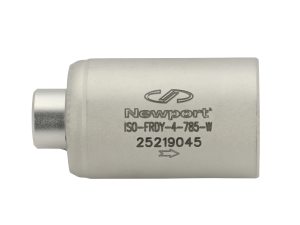

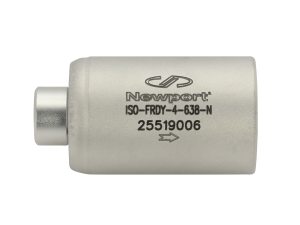

The Compact Faraday Optical Isolator is essentially a uni-directional light valve. The compact design makes it highly suitable for OEM integration. They are available with a 2- or 4-mm clear aperture and in a variety of wavelength ranges to allow for optimal isolation and transmission at specific wavelengths. The devices contain optically-contacted polarizing beamsplitter cubes, resulting in high transmission compared to other available isolators.
- Up to 5 W of forward power handling
- >33 dB isolation
- >95% transmission
- Compact isolator design
- 532, 638 and 785 nm center wavelengths
- 1/2 waveplate option (-W models) See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | ISO-FRDY-04-532-N | In Stock | ||||

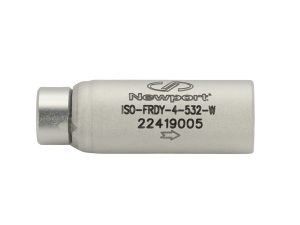

 | ISO-FRDY-04-532-W | In Stock | ||||
 | ISO-FRDY-04-638-N | 3 Weeks | ||||

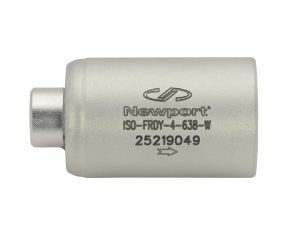

 | ISO-FRDY-04-638-W | In Stock | ||||

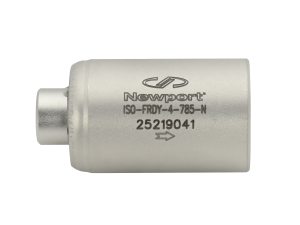

 | ISO-FRDY-04-785-N | |||||
 | ISO-FRDY-04-785-W |

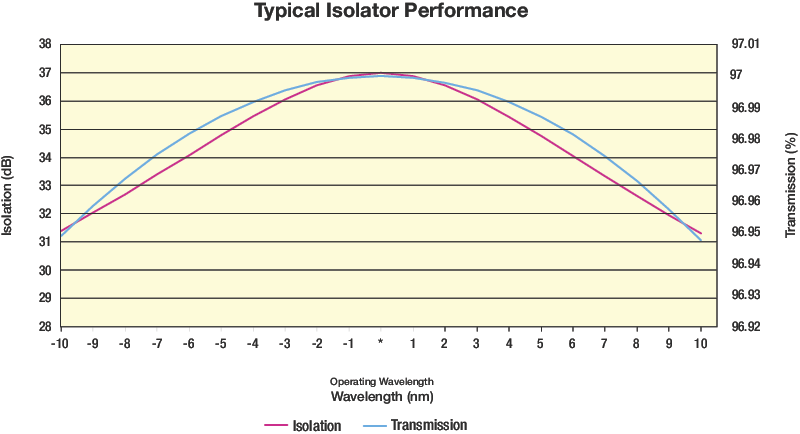

Specifications
- Center Wavelength532, 638, or 785 nm
- Clear Aperture2 or 4 mm
- Isolation>33 dB
- Transmission>95%
- Forward Power Handling5 W
- MaterialTerbium Gallium Garnet
- Polarizer TypePBS Cube Beamsplitter
- Operating Temperature10-30ºC
Features
High Transmission Polarizing Beamsplitter Cube
Our compact isolators contain optically contacted polarizing beamsplitter cubes that provide high transmission. With more photons available for your application, diodes can be run at lower currents, extending the diode lifetime.
1/2 Waveplate Option

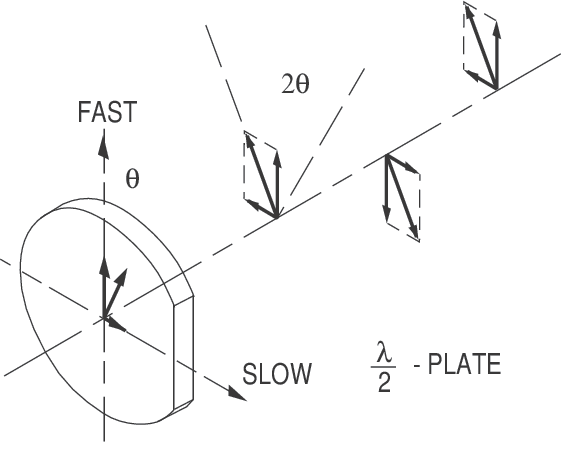

We offer versions with an added zero order 1/2 wave plate (-W models). The waveplate is installed at the factory and cannot be adjusted. Should you need to adjust the waveplate please contact us.
Mounting to a Table, Stage, or Post

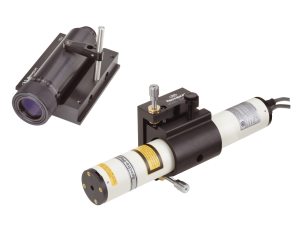

Newport offers the
Applications
Common applications for compact isolators include:
- Eliminating frequency instability in single-frequency lasers, such as diodes and OPSLs
- Preventing mode-hopping in external cavity diode lasers
- Eliminating parasitic oscillations due to ASE in amplified laser systems
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

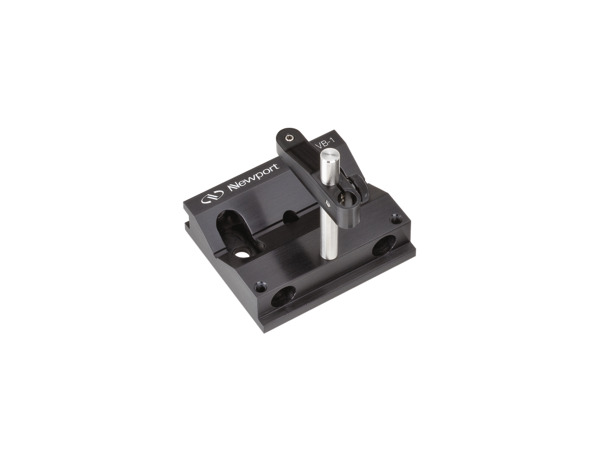

 | VB-1Cylindrical Device Mount, V-Block, 3 inch (76.2 mm) Length | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M1-VGV-Groove Mount, M1, 2 Knob Actuators | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Resources
Literature
Compact Optical Isolators Datasheet(321.1 kB, PDF)
Manuals
Compact User Guide.pdf(331.2 kB, PDF)
