Sorry, this family of products is no longer available. The recommended replacement product is CONEX-AG-PR100P.

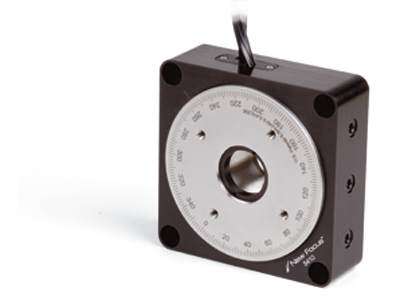

Closed Loop Picomotor Piezo Rotation Mount

The 8410 encoded closed loop picomotor rotary mount offers superior position feedback for rotational accuracy. It provides microradian precision and continuous 360° rotation.

Based on Picomotor™ actuator technology
Encoder for closed-loop precise rotation
0.2-mrad resolution

See All Features

Specifications

Optic Diameter
25.4 mm
Maximum Speed
>3.3 rev/min.
Angular Range
360°
Centered Load Capacity
4.4 N

Minimum Incremental Motion
0.2 mrad
Thread Type
8-32
Operating Temperature
10 to 40 ˚C
Retaining Ring Thread
1.040-32

Features

Applications

With angular resolution of 0.2 mrad and superior position feedback for rotational accuracy, the 8410 Encoded, Closed-Loop Picomotor Rotary Stage can be used for several applications, including positioning wave plates and polarizers. The 8410 Closed-Loop Picomotor Rotary Stage is especially suitable for applications requiring high accuracy, high sensitivity, and repeatability (MIM, aka practical resolution). It features 1.040-32 internal thread and comes with one retaining ring for mounting 1.0 in. diameter optical components.

Accessories

Compatible Controller/Drivers

Description	Compatibility	Avail.	Price
8743-CLPicomotor Driver Module, Closed-Loop, 2 Channel	UNIVERSAL	2 Weeks	$1,877
8743-CL-2-KITMotion Controller Kit, Closed Loop, Two-Axis Picomotor Driver, 8743-CL	UNIVERSAL	In Stock	$1,981
8745-PSPower Supply, 8742 and 8743-CL Controller/Driver, 12V	UNIVERSAL	In Stock	$119
8745-MTG-KITMounting Plate Kit, Optical Table, 8742 and 8743-CL Controller/Driver	UNIVERSAL	1 Week	$498
8745-STK-KITStacking Plate Kit, L-Shaped,8742 and 8743-CL Controller/Driver	UNIVERSAL	In Stock	$312
8745-PWR-CBLPower Cable, 6 in. Length, 8742 and 8743-CL Controller/Driver	UNIVERSAL	In Stock	$15.60
8745-USB-CBLUSB Cable, 3 Meters Length, 8742 and 8743-CL Controller/Driver	UNIVERSAL	In Stock	$19.80
8745-RS485-CBLRS-485 Cable, 6 in. Length, 8742 and 8743-CL Controller/Driver	UNIVERSAL	In Stock	$19.80
