Absorptive Neutral Density Filters

Products
Features
Contact Us

Overview

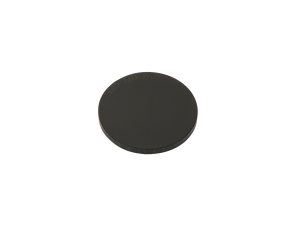

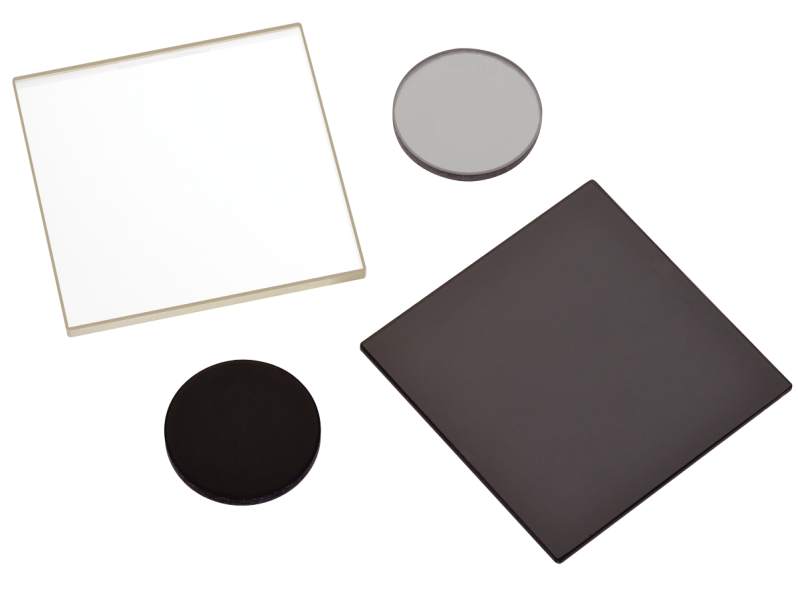

Newport's absorptive ND filters are precision polished, and offer uniform attenuation over lower power beams across the visible range at an economical price suitable for OEM integration.

Low cost ND filters ideal for OEM integration
Precision polished for demanding research applications
Broadband attenuation, visible to near IR
Absorptive neutral density glass
Permanently marked with optical density
For low power applications

See All Features

Products

Showing 40 of 40 total products

Compatibility:

Show entries

Search:

Compare	Model		Size	Optical Density	Optical Density Tolerance	Availability	Price	Brand

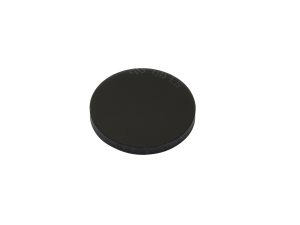

FR-OD05 Neutral Density Filter, Absorptive, 12.7 mm, 0.04 OD at 546.1 nm $30.00 In Stock	FR-OD05 Neutral Density Filter, Absorptive, 12.7 mm, 0.04 OD at 546.1 nm	1.0	Ø12.7 mm	0.04	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD20 Neutral Density Filter, Absorptive, 12.7 mm, 0.2 OD at 546.1 nm $30.00 In Stock	FR-OD20 Neutral Density Filter, Absorptive, 12.7 mm, 0.2 OD at 546.1 nm	2.0	Ø12.7 mm	0.2	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD40 Neutral Density Filter, Absorptive, 12.7 mm, 0.4 OD at 546.1 nm $30.00 In Stock	FR-OD40 Neutral Density Filter, Absorptive, 12.7 mm, 0.4 OD at 546.1 nm	3.0	Ø12.7 mm	0.4	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD60 Neutral Density Filter, Absorptive, 12.7 mm, 0.6 OD at 546.1 nm $30.00 In Stock	FR-OD60 Neutral Density Filter, Absorptive, 12.7 mm, 0.6 OD at 546.1 nm	4.0	Ø12.7 mm	0.6	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD80 Neutral Density Filter, Absorptive, 12.7 mm, 0.8 OD at 546.1 nm $30.00 In Stock	FR-OD80 Neutral Density Filter, Absorptive, 12.7 mm, 0.8 OD at 546.1 nm	5.0	Ø12.7 mm	0.8	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD100 Neutral Density Filter, Absorptive, 12.7 mm, 1.0 OD at 546.1 nm $30.00 In Stock	FR-OD100 Neutral Density Filter, Absorptive, 12.7 mm, 1.0 OD at 546.1 nm	6.0	Ø12.7 mm	1	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD200 Neutral Density Filter, Absorptive, 12.7 mm, 2.0 OD at 546.1 nm $30.00 In Stock	FR-OD200 Neutral Density Filter, Absorptive, 12.7 mm, 2.0 OD at 546.1 nm	7.0	Ø12.7 mm	2	±4% @ 546.1 nm	In Stock	$30.00	Newport
FR-OD300 Neutral Density Filter, Absorptive, 12.7 mm, 3.0 OD at 546.1 nm $30.00 In Stock	FR-OD300 Neutral Density Filter, Absorptive, 12.7 mm, 3.0 OD at 546.1 nm	8.0	Ø12.7 mm	3	±4% @ 546.1 nm	In Stock	$30.00	Newport

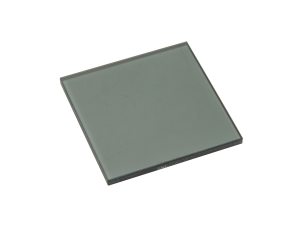

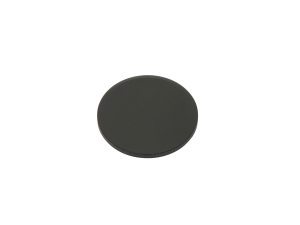

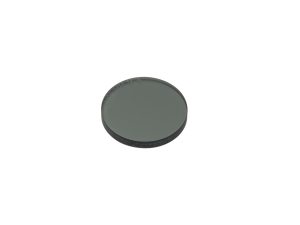

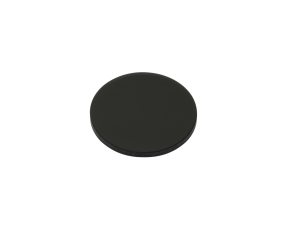

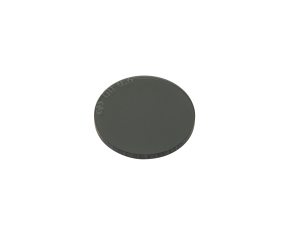

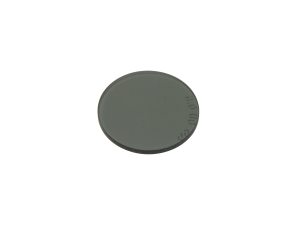

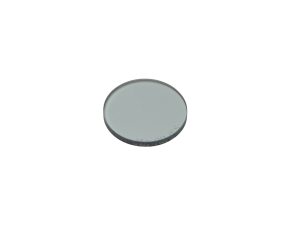

FSR-OD05 Neutral Density Filter, Absorptive, 25.4 mm, 0.04 OD at 546.1 nm $40.00 In Stock	FSR-OD05 Neutral Density Filter, Absorptive, 25.4 mm, 0.04 OD at 546.1 nm	9.0	Ø25.4 mm	0.04	±4% @ 546.1 nm	In Stock	$40.00	Newport
FSR-OD10 Neutral Density Filter, Absorptive, 25.4 mm, 0.1 OD at 546.1 nm $40.00 In Stock	FSR-OD10 Neutral Density Filter, Absorptive, 25.4 mm, 0.1 OD at 546.1 nm	10.0	Ø25.4 mm	0.1	±4% @ 546.1 nm	In Stock	$40.00	Newport

Showing 1 to 010 of 40 entries

Previous1 2 3 4Next

Show All

Specifications

Wavelength Range

400-900 nm
Optical Density Tolerance

±4% at 546.1 nm
Angle of Incidence

0°
Damage Threshold

1-5 W/cm² CW, typical
Size Tolerance

±0.3 mm
Thickness

0.99-4.19 mm

Surface Quality

60-40 scratch-dig
Clear Aperture

≥central 80% of dimensions
Wedge

≤3 arc min
Chamfers

0.25–0.76 mm face width
Chamfers Angle Tolerance

45° ±15°
Cleaning

See How to Clean Optics

Features

Absorptive Neutral Density Glass for Low Power Applications

These neutral density filters are made from absorptive glass. This results in a lower cost product that is somewhat less fragile compared to coated metallic ND filters. Absorptive ND filters also reflect far less light toward the source compared with metallic ND Filters, which may be beneficial. Nevertheless stacking a large number of ND filters can still result in excessive undesired reflection due to Fresnel surface reflection. Due to the absorptive nature of the filter glass, use with high power lasers should be avoided. Power levels 1-5 W/cm² are advised.

Spectrally Neutral for Visible Wavelengths

Absorptive glass ND filters are spectrally neutral over the visible spectral region. OD05 to OD40 optical densities are shown.

Additive Optical Densities

Optical density (OD) is given by the relationship: OD = -log(T) or T = 10^(-OD) where T is transmittance (0≤T≤1). Optical Density, unlike transmittance, is additive. When multiple filters are stacked, the total density is easily found by adding up the densities of each filter in the series. For example to achieve desired transmittance of 8%, first calculate the equivalent density (OD = -log(0.08) = 1.097 ≅ 1.1), then find a combination of filters that adds to the desired number, such as a combination of an OD1 filter and an OD0.1 filter.

Finely Control Beam Attenuation

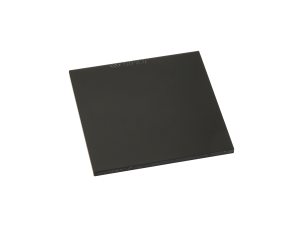

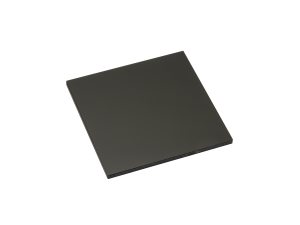

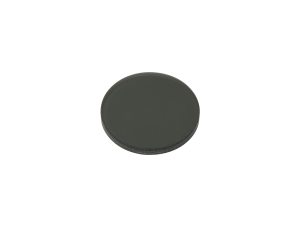

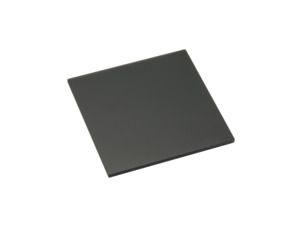

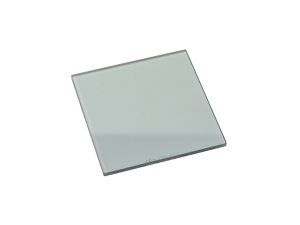

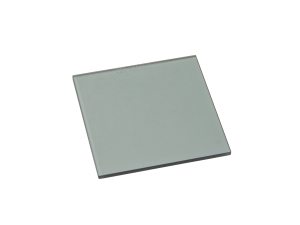

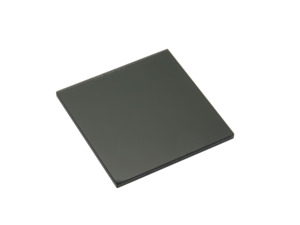

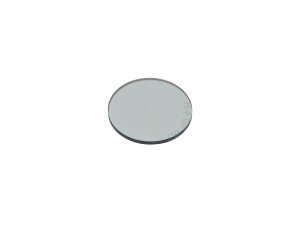

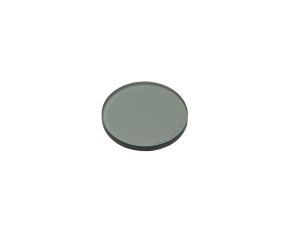

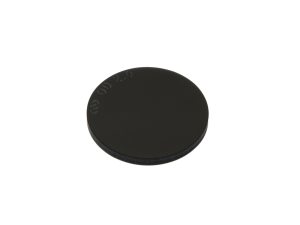

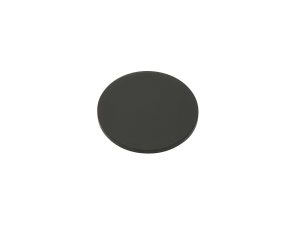

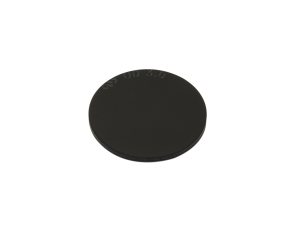

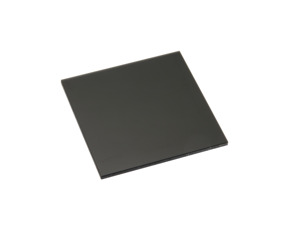

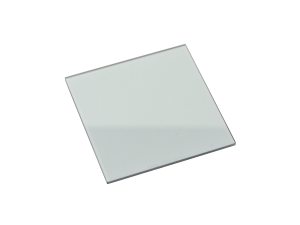

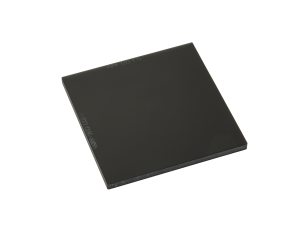

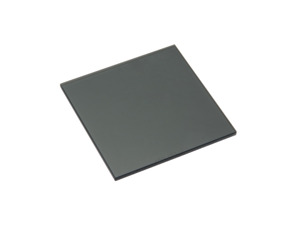

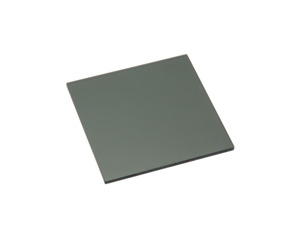

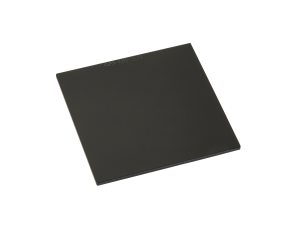

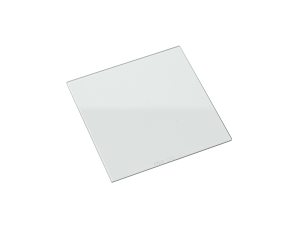

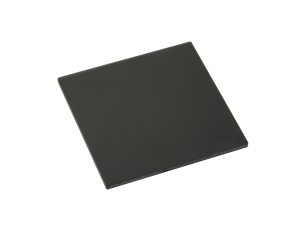

Our absorptive ND filters are available individually or in a set of 9. Filters may be used individually, or combined in series, to obtain any desired density from 0.04 to 4.0. The Ø25.4 mm and 50.8 mm square sizes are permanently marked with the optical density.

Proper Orientation

To prevent unwanted interference from etalon effects, filters should be angled slightly with respect to the incident beam.

Neutral Density Filter Kit

The FS-3 Absorptive Neutral Density Filter Set includes nine 50.8 x 50.8 mm square absorptive neutral density filters The FS-3R Absorptive Neutral Density Filter Set is a set of nine 25.4 mm diameter absorptive neutral density filters. Both offer Optical Densities of OD 0.04, 0.2, 0.4, 0.6, 0.8, 1.0, 2.0 and 3.0, which provide broadband attenuation for the visible to NIR region for power levels less than 30 W/cm². This unique assortment of filters permits easy selection of any desired density from 0 to 8 with 0.1 OD resolution by using individual filters or a combination of no more than two filters. The total filter set range is 0 to 8 OD.
