Vibration Isolator, Mechanical, 2 lbs. (0.9 kg) to 5 lbs. (2.3 kg)

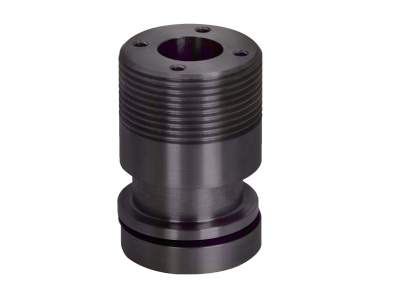

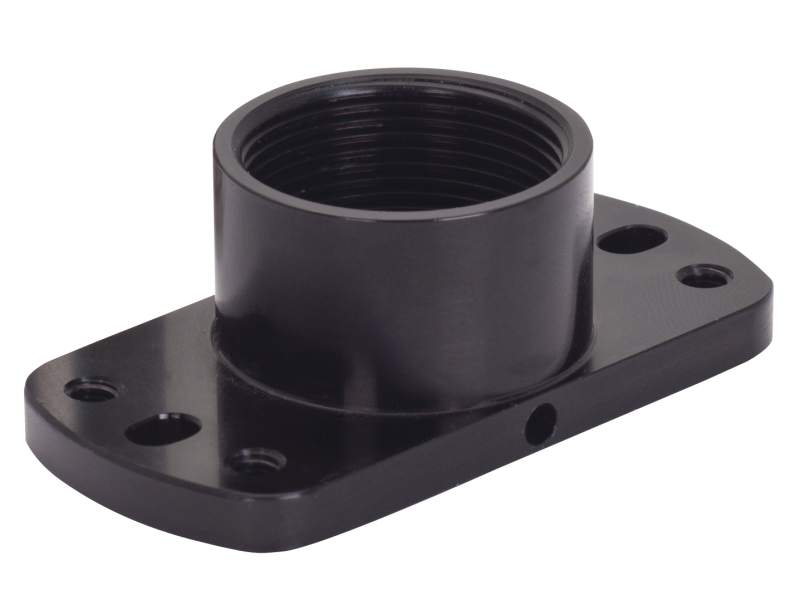

The VIB100-0205 bearing is a self-contained unit that provides both vertical and horizontal isolation from 2 lbs (0.9 kg) to 5 lbs (2.3 kg). The isolators feature a 7.8 Hz vertical resonance frequency that begins isolating at 11 Hz and a horizontal resonance of 5.8 Hz with isolation beginning at 8.5 Hz. This is sufficient performance to eliminate 85% of vibration noise seen within typical laboratories. The VIB100 bearings attach to the VIBe base plate via specially designed brackets that feature a threaded aperture to allow leveling adjustment of the platform.
