90 Degree Angle Bracket, Conex-SAG Series
90 Degree Angle Bracket, Conex-SAG Series
Model: SAG-AB90-16
Product Series Overview

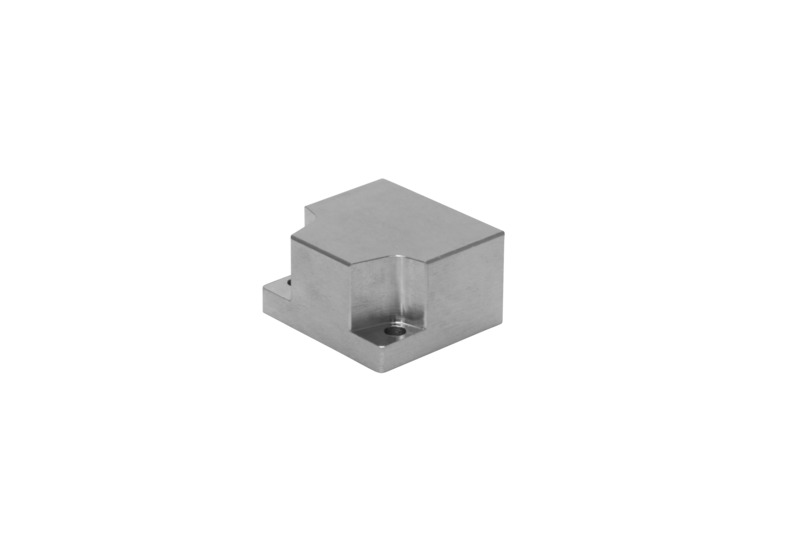

Super Agilis™ Piezo Linear Stages With CONEX™ ControllerThe Super Agilis™ SAG-AB90-16 90 degree angle bracket is designed for mounting 16-mm travel Conex-SAG series piezo stages in XZ configurations.
Resources & Downloads
Drawings & CADs
SAG-AB90-16.PDF(156 kB, PDF)
