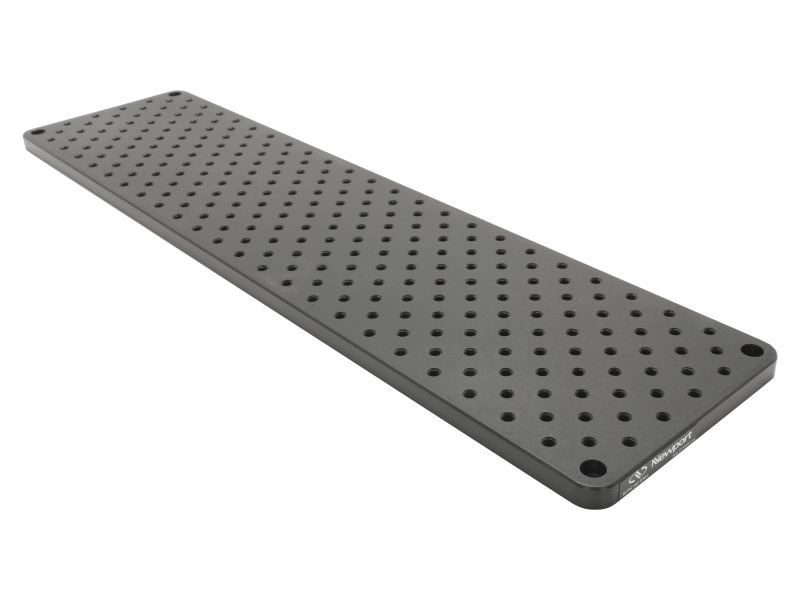

Optical Breadboard Plate, Solid Aluminum, 6 x 24 in., 1/4-20, Double Density
The SA2-06X24-D Solid Aluminum Optical Breadboard is a 6 x 24 inch by 0.5 inch thick solid aluminum plate perfect for all kinds of non-critical applications where higher performance and higher priced breadboards are simply not necessary. It features double density hole pattern to accommodate the ever growing need to mount components more closely together to save space for compact applications.
Specifications
- Width6 in.
- Length24 in.
- Thickness0.5 in.
- Working SurfaceLow reflective anodized aluminum
- Surface Flatness±0.02 in.
- MicrolocksNo
- Mounting Holes1/4-20
- Number of Counterbored HolesFour 1/4 in. Located at corners - Inset 0.5" from edge
- Mounting Hole TypeCut (not rolled) threads with countersink
- Mounting Hole Pattern1.0 in. grid, double density
- Mounting Hole Borders0.5 in. borders
- Core DesignSolid Aluminum
- Weight7 lb
