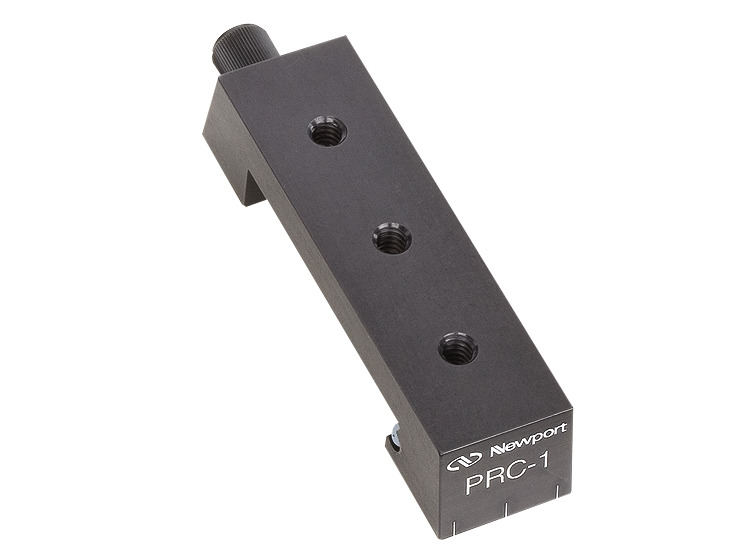

Optical Rail Carrier, 1.0 in. Length, 1/4-20 Thread, PRL Series

Model: PRC-1

$103

In Stock

Compare

Add to List

Product Series Overview

Precision 100 mm Dovetail Optical Rails

The PRC-1 Carrier is are easy to use and is compatible with PRL Series dovetail rails. The rail/carrier system is designed to provide maximum versatility in minimum table space. This 1 inch wide carrier has 1/4-20 holes and may be removed or installed at any point on the rail. The aluminum carriers ride on extra-hard polymer pads, selected for low friction, resistance to cold flow, and long life. The overall nominal height of a carrier mounted on to a rail is 1.256 in. (31.9 mm). Convenient thumb-adjust lock knobs securely clamp the carriers in place anywhere on the rail.

Precision Dovetail Design for Sturdy Hold and Excellent Linearity

The PRL Series Precision Dovetail Optical Rail system maintains a low profile with its 3.93 in. (99.8 mm) wide base to provide a sturdy hold of carriers with a combined height of 1.26 in. (31.9 mm). The precision-machined, anodized aluminum dovetail construction provides smooth and easy-to-use carrier translation with a straightness of 0.001 in over 8 in. (25 µm over 25 cm).

Four Optical Rail Lengths Available

Optical rails come in 6.00 in (16.7 cm), 12.5 in. (31.7 cm), 24.3 in. (61.7 cm) and 36.5 in (92.7 cm) lengths and are compatible with English or metric table hole patterns.

Specifications

Technical Specs

Type

Rail Carrier
Thread Type

1/4-20
Height

20.6 mm
Length

25.4 mm

Width

116.8 mm
Material

Aluminum

Type

Rail Carrier
Thread Type

1/4-20
Height

20.6 mm
Length

25.4 mm

Width

116.8 mm
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PRC-1ART-S (81.8 kB, PDF)

Other

MKS EU ROHS3 - PRX PRC Rail Carriers (223 kB, PDF)

Related Products

Customers Who Bought This Item Also Bought

Description	Compatibility	Avail.	Price
PRC-3 Optical Rail Carrier, 3.0 in. Length, 1/4-20 Thread, PRL Series	IMPERIAL	In Stock	$133
PRL-24 Precision Optical Rail, 24.28 in. Length, 3.93 in. Width, 24 in. Scale	UNIVERSAL	In Stock	$425
PRL-12 Precision Optical Rail, 12.46 in. Length, 3.93 in. Width, 12 in. Scale	UNIVERSAL	In Stock	$288
PRL-36 Precision Optical Rail, 36.48 in. Length, 3.93 in. Width, 36 in. Scale	UNIVERSAL	In Stock	$510
PRX Rail Indexing Block, 0.5 in. (12.7 mm) Length, No Holes, PRL Series	UNIVERSAL	In Stock	$74
PRL-6 Precision Optical Rail, 6.56 in. Length, 3.93 in. Width, 6 in. Scale	UNIVERSAL	In Stock	$202
