Tube Mount, Insertable, Aegis Qube Beam Tube, Optics Cage Plus

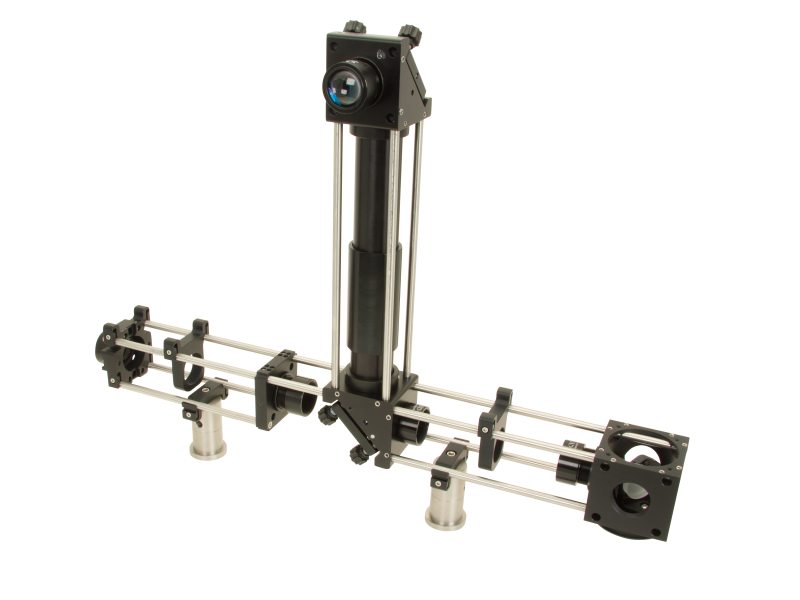

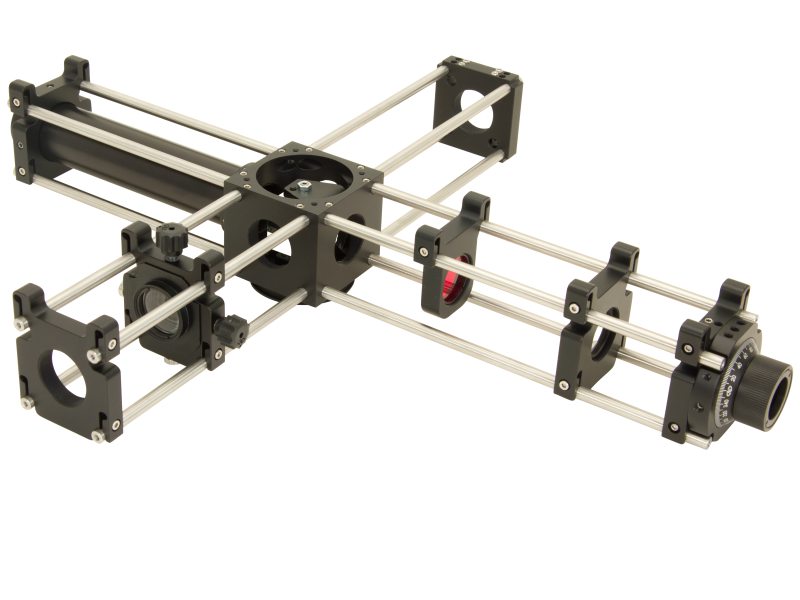

optics cage used in beam routing interferometer application

Tube Mount, Insertable, Aegis Qube Beam Tube, Optics Cage Plus

Model: OC1-BT

$27

In Stock

Compare

Add to List

Product Series Overview

Optics Cage Plus Fixed Optic Mounts

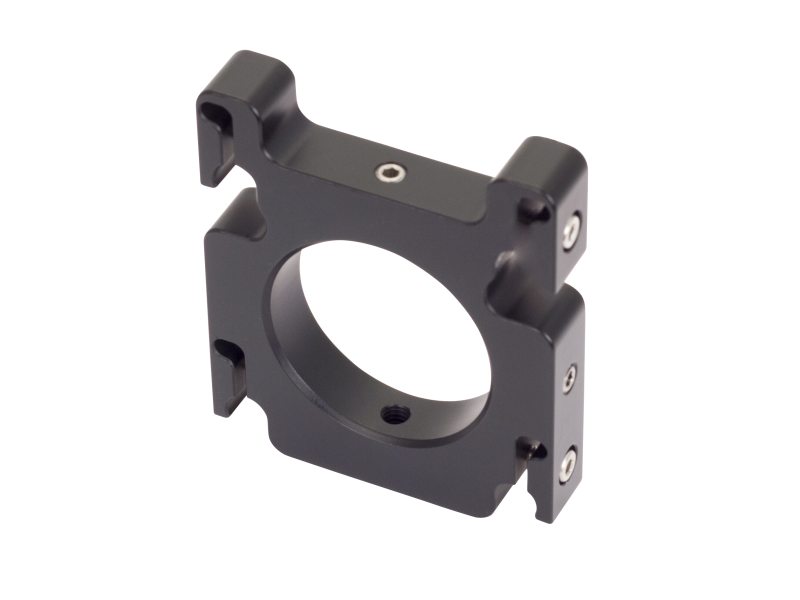

Optics Cage Beam Tube Mount is compatible with Aegis Qube™ Beam Tubes for building enclosed optical system. It features two 8-32 threaded holes on the sides supplied with nyton-tip set screws. It also has another 8-32 threaded hole at the bottom for direct mounting to standard optical posts.

Specifications

Technical Specs

Type

Tube Mount
Material

Aluminum

Type

Tube Mount
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LENS MOUNT (102.9 kB, PDF)

Other

OC1-BT RoHS Certificate (277.1 kB, PDF)
OC1-BT_RoHS2021.pdf (679 kB, PDF)
