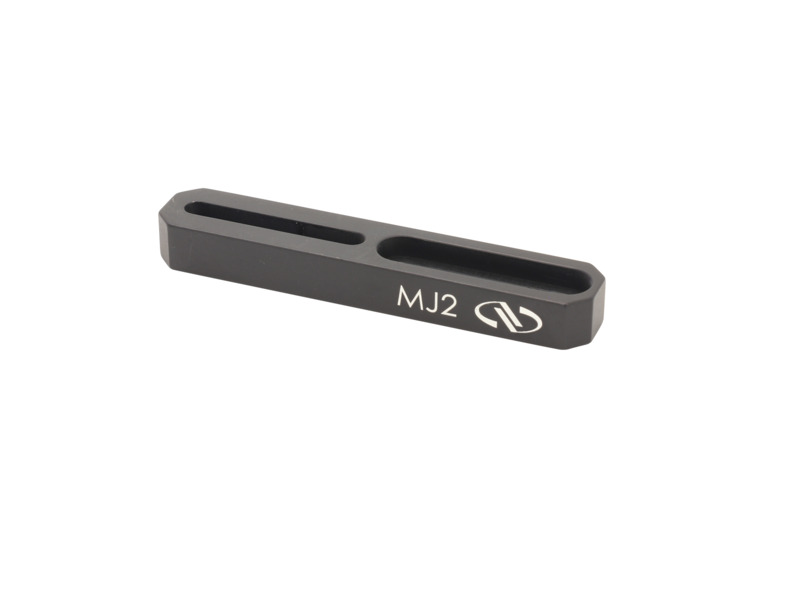

MJ2 Offset Mounting Post Joist

Offset Mounting Post Joist, 10-70 mm

Model: MJ2

$19.40

In Stock

Compare

Add to List

Product Series Overview

Mounting Joists

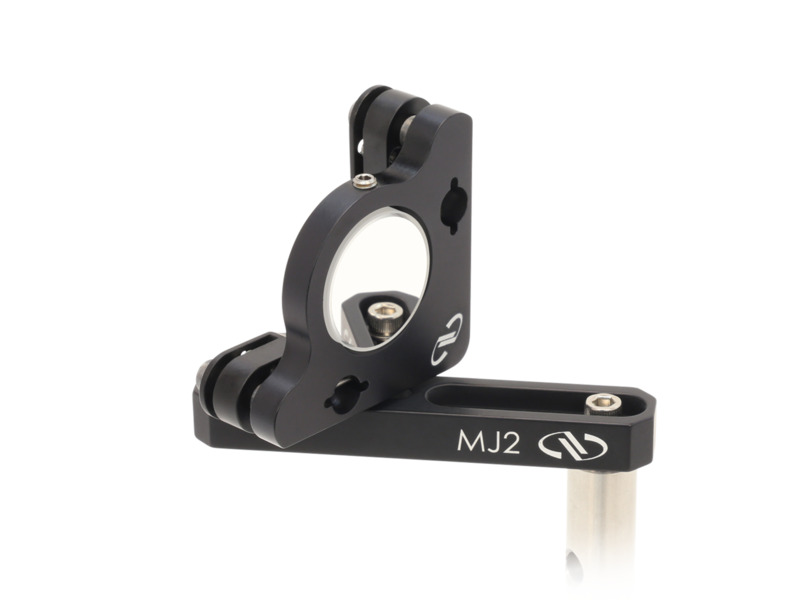

The MJ2 provides adjustable, offset mounting of optomechanical elements with approximately 10-70 mm (~0.40-2.75”) offset from the post center to the optomechanical component mount. The MJ2 has two counterbored, 30.5 mm (1.2”) slots with opposing orientations to allow for post mounting and optomechanical component mounting respectively.

Specifications

Technical Specs

Type

Mounting Joist
Thread Type

8-32 (M4) CLR

Adjustment Range

10-70 mm

Type

Mounting Joist
Thread Type

8-32 (M4) CLR

Adjustment Range

10-70 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MJ2 MJ3 DWG (74.6 kB, PDF)

Other

MJ_RoHS2021.pdf (282.7 kB, PDF)
