Newport Mounting Joists allow for elevated, single post mounting of optical components in either a colinear configuration of multiple optics or an individual optomechanical element adjustably offset from the mounting post. These space-saving mounting joists allow for additional optics to be inserted within densely populated optical tables and breadboards. These mounting joists are compatible with posts up to 1” diameter and reduce the need and limitation of mounting each optic on its own post and post holder. The through slots and through hole of these joists are designed for universal mounting of M4 or #8 threaded hardware.
Compact Mounting of Single or Multiple Optomechanical Elements on Single Post
Colinear Mounting of Multiple Optics or Offset Mounting of Single Optic
Elevate Optics Above Populated Areas of Breadboard or Optical Table
Universal M4/#8 Clearance of Mounting Hole and Slots
Additional CAD file downloads are not available for this product.
mounting-joints - Drawings
Additional drawings are not available for this product.
Features
Offset Mounting Joist

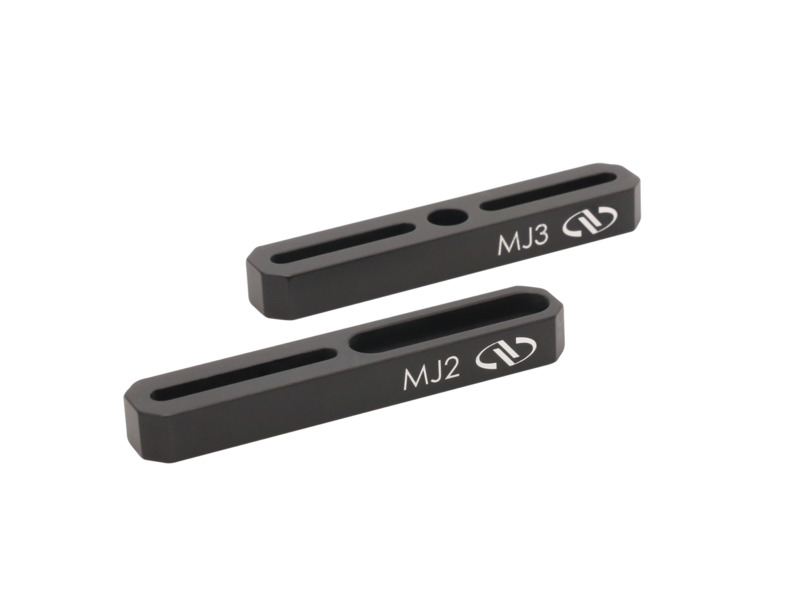

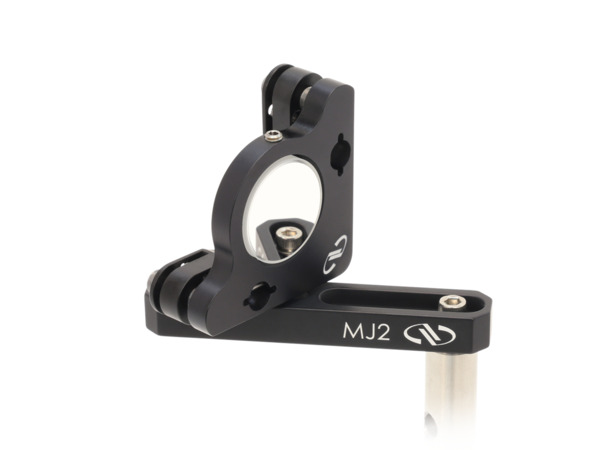

The MJ2 allows offset mounting of a single optomechanical assembly, relative to the location of the supporting post or pedestal. It provides 10-70 mm offset range and universally accommodates both M4 or #8 mounting hardware.
Colinear Mounting Joist

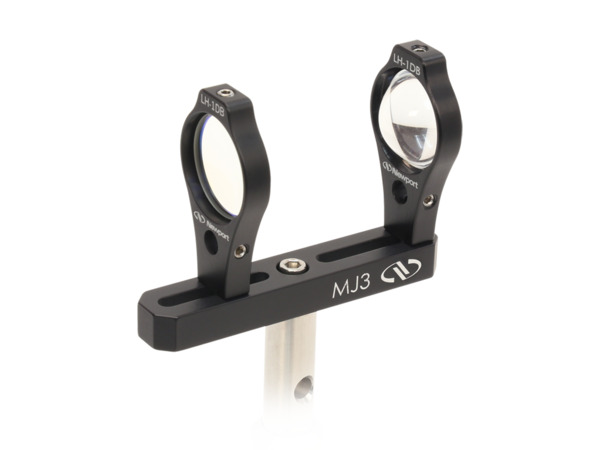

The MJ3 allows colinear mounting of optomechanical assemblies on either side of a central post mount location. It provides 10-70 mm offset range and universally accommodates both M4 or #8 mounting hardware.
