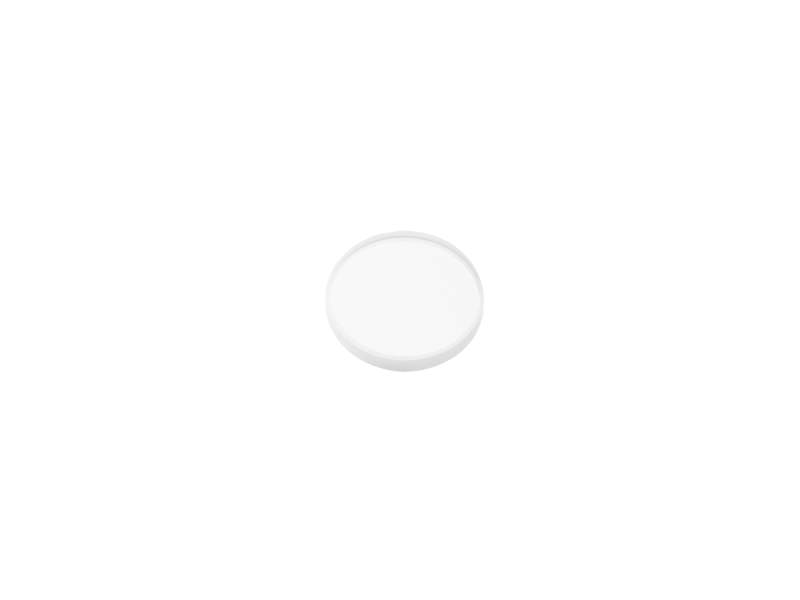

Optical Window, Magnesium Fluoride, 25.0 mm Diameter, 3.0 mm Thick

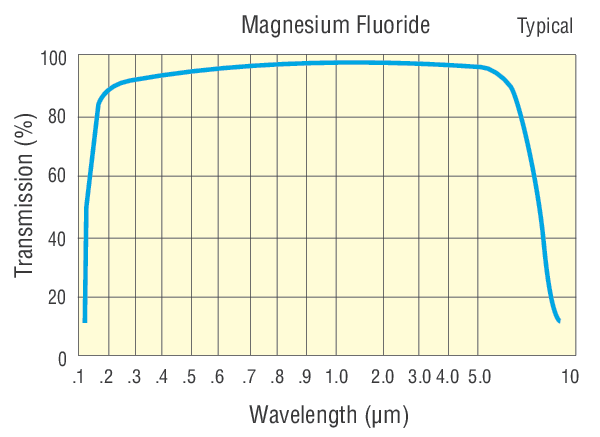

The MGW12 is a 25.0 mm in diameter and 3.0 mm thick Magnesium Fluoride window. Magnesium fluoride has a wide spectral range with high transmission between 0.15 μm and 6.5 μm, making it an excellent choice for deep UV to IR applications. MgF₂ has high resistance to thermal and mechanical shock, as well as laser damage. For selected applications MgF₂ can also be used without an anti-reflective coating as it has a low index of refraction leading to a low refracted light from the second surface.

Specifications

Technical Specs

Diameter
25.0 mm
Material
Magnesium Fluoride
Antireflection Coating
Uncoated
Surface Flatness
λ/2 @ 632.8 nm
Surface Quality
40-20 scratch-dig
Thickness
3.0 mm
Thickness Tolerance
± 0.1 mm

Parallelism
< 1 arc minute
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0.0/-0.1 mm
Wavelength Range
150-6500 nm

Diameter
25.0 mm
Material
Magnesium Fluoride
Antireflection Coating
Uncoated
Surface Flatness
λ/2 @ 632.8 nm
Surface Quality
40-20 scratch-dig
Thickness
3.0 mm
Thickness Tolerance
± 0.1 mm

Parallelism
< 1 arc minute
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0.0/-0.1 mm
Wavelength Range
150-6500 nm

Resources & Downloads

Other

MGW12 RoHS Certificate(704.4 kB, PDF)

2D Product Drawings

MGWxx Drawing.pdf(86.9 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
CAW14Optical Window, Calcium Fluoride, 25.0 mm Dia., 3.0 mm thick, Uncoated	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$195
FSW13Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, Uncoated	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$137

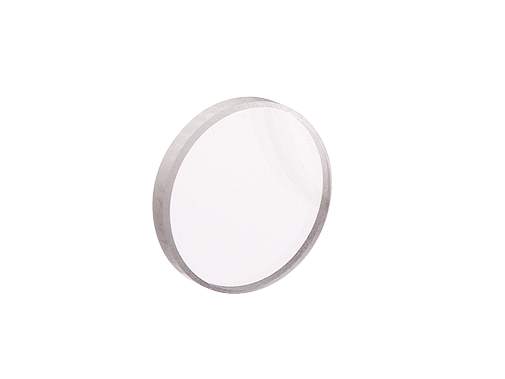

SAW18Optical Window, Sapphire, 15.00 mm Diameter, 2.00 mm Thick	UNIVERSAL	4 Weeks	$88
