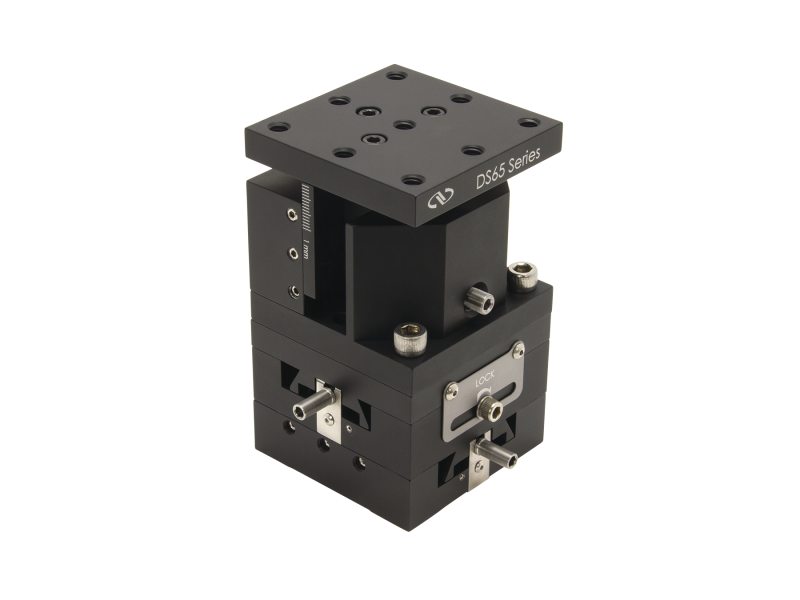

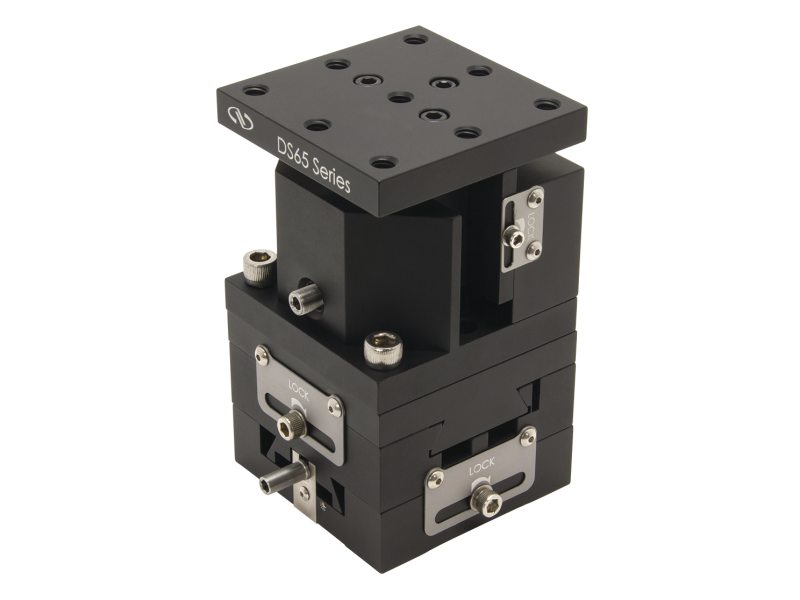

XYZ Linear Stage, Dovetail, 25 mm XY, 14 mm Z, 65 x 65 mm, M6

  • Axes of Travel
    X, Y, Z
  • Maximum Stage Travel
    25.4 mm
  • Travel Range X, Y, Z
    25.4 mm, 25.4 mm, 14 mm
  • Centered Normal Load Capacity
    86 N
  • Recommended Actuators
    Included
  • Sensitivity
    1 µm
  • Material
    Aluminum
  • Bearings
    Dovetail Slide
  • Drive Location
    Center drive
  • Platform Size
    65 x 65 mm
  • Thread Type
    M6
