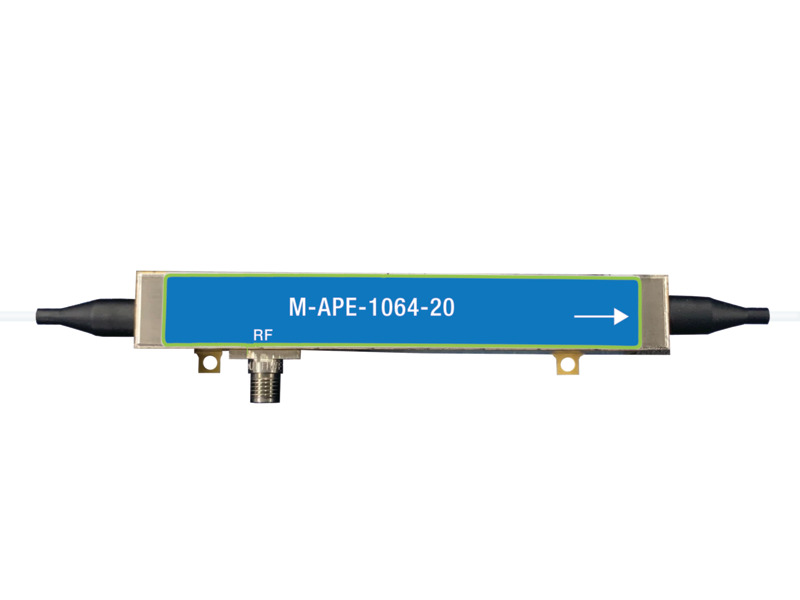

Fiber-Optic Intensity Modulator, 20 GHz, 1064 nm.
The M-APE-I-1064-20 Intensity Modulator is designed for external modulation of 1064 nm laser up to 17 GHz or 20.5 Gb/s. It is also applicable for pulse generation for Ytterbium-Doped Fiber Amplifier amplification (YDFA) in satellite links and active mode locked laser applications. It is a bias-stabilized lithium modulator that proves to be extremely stable for long periods of time, and features excellent stability in a biased circuit, operating from 1030 to 1090 nm. It has an excellent operating temperature tolerance ranging from -30º to +75º C. The M-APE-I-1064-20 uses a Polarization Maintaining (PM) input and output fiber, featuring separate RF and bias ports.
What is the Pockel's Effect?
Both our phase and our amplitude modulators are based upon the Pockel's effect: the electro-optic effect where the refractive index along one or more axes is proportional to an externally applied electric field. Therefore, by applying a voltage across the electrodes of an electro-optic crystal, you can change the phase of light as it passes through the crystal. By placing the crystal between crossed polarizers, this phase modulation can be converted into amplitude modulation.
Mach Zehnder Architecture
These intensity modulators use the Mach Zehnder interferometer (MZI) architecture by splitting the waveguide into two paths and recombining them. The elec-trodes are placed around the two waveguide paths to modulate the phase in the light while split. When the paths recombine, the light path undergoes either constructive or deconstructive interference depending on the phase, thereby modulating the light intensity.
Mach Zehnder Architecture
These intensity modulators use the Mach Zehnder interferometer (MZI) architecture by splitting the waveguide into two paths and recombining them. The elec-trodes are placed around the two waveguide paths to modulate the phase in the light while split. When the paths recombine, the light path undergoes either constructive or deconstructive interference depending on the phase, thereby modulating the light intensity.
Annealed Proton Exchange (APE) Fabrication
Proton Exchange (PE) is one of the common waveguide fabrication techniques in lithium niobate. Compared with Ti in-diffusion, another fabrication method, it can generate higher extraordinary refractive index changes (Δne close to 0.1). A subsequent annealing in a controlled atmosphere, hense called Annealed Proton Exchange (APE), permits a high polarization rejection and a high optical power handling capability, especially for applications using a shorter wavelength than in telecommunications. The annealing, in fact, helps in recovering the nonlinear coefficients that are compromised by standard PE processing.
Specifications
- TypeIntensity Modulator
- Fiber TypePM 980 - 400
- MaterialLiNbO3
- Fiber ConnectorFC/APC
- Operating Wavelength1030 to 1090 nm
- Operating Frequency20 GHz
- Maximum Insertion Loss5.0 dB
- Typical Insertion Loss4.5 dB
- Return Loss45 dB min.
- Bandwidth17 GHz (S21)
- Maximum Optical Power100 mW
- Operating Humidity0% to 90% Relative Humidity
- Dimensions3.783” x 0.981” x 0.640”
- Extinction Ratio20 dB min.
- Storage Temperature-60 °C to +85 °C
