The 1414 High Speed Fiber-Optic Detector shows a flat response in both amplitude and phase up to 25 GHz and are optimized for frequency-domain applications. This near-IR photodetector uses a 25 μm diameter back-illuminated InGaAs Schottky photodiode with peak responsivities of 0.6 A/W at 1300 nm. The active layer is twice as thick as in our ultrahigh-speed Model 101X module, producing a 50% greater responsivity over its 500 to 1630 nm wavelength range. The conversion gain with a 50 Ω load is 17 V/W. It has a FC single-mode input and Wiltron K electrical output. The detector uses a internal 9-V battery.
Smooth Frequency Response

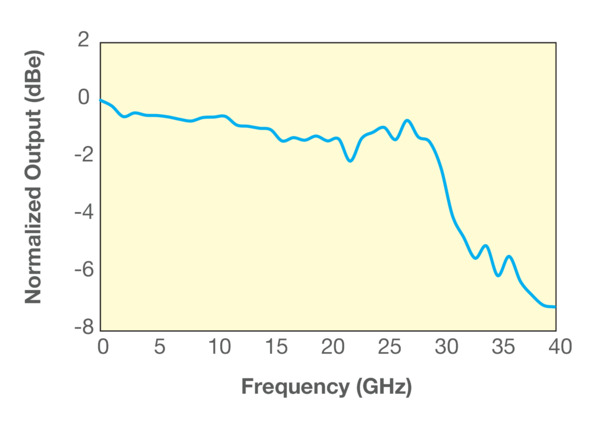

Typical frequency response of Model 1414(-50). Input was 1 mW at 1.06 µm.
Model 1414 was designed with a smooth frequency response out to 25GHz and is optimized for frequency-domain applications. For time-domain applications, please see our Time Domain Fiber-Optic Detectors.
InGaAs Photodetectors for IR Wavelengths
Model 1414 utilizes an InGaAs Schottky photodiode providing coverage from 500 to 1630 nm for singlemode fiber versions and 850 to 1630 nm for multimode fiber versions.
Internal Microwave Housing
An internal microwave housing suppresses noise, pick-up, and other artifacts. Moreover, to limit damage due to excessive voltage or mishandling, these photodiodes have damage-resistant bias circuits. All these photodetectors come equipped with a DC-bias monitor that has a transimpedance gain of 1 mV/µA and a 50-kHz bandwidth.
1414-50Fiber-Optic Detector, High Speed, 850-1630 nm, 25 GHz, FC 50 µm Multimode
