  6. 1414-50

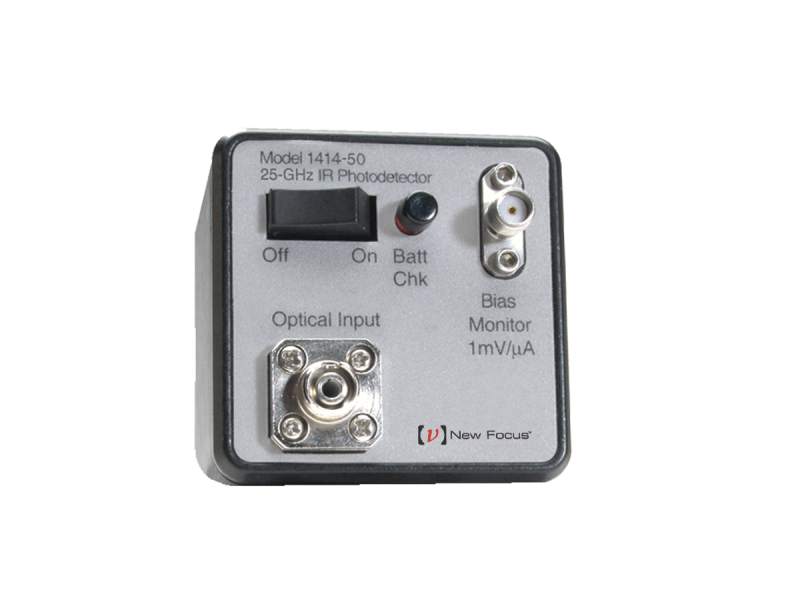

Fiber-Optic Detector, High Speed, 850-1630 nm, 25 GHz, FC 50 µm Multimode

  • Device Type
    Biased Detector
  • Detector Material
    InGaAs
  • Detector Diameter
    0.021 mm
  • Detector Type
    Schottky
  • Wavelength Range
    850-1630 nm

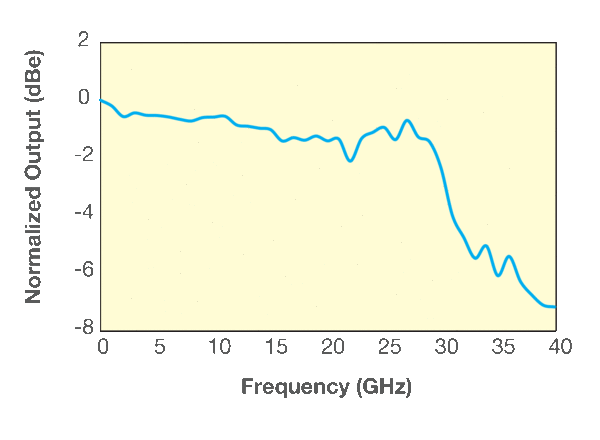

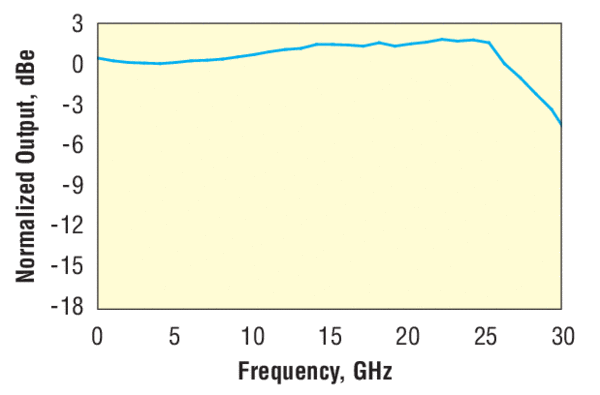

  • 3 dB Bandwidth
    DC to 25 GHz
  • Maximum Conversion Gain
    11 V/W

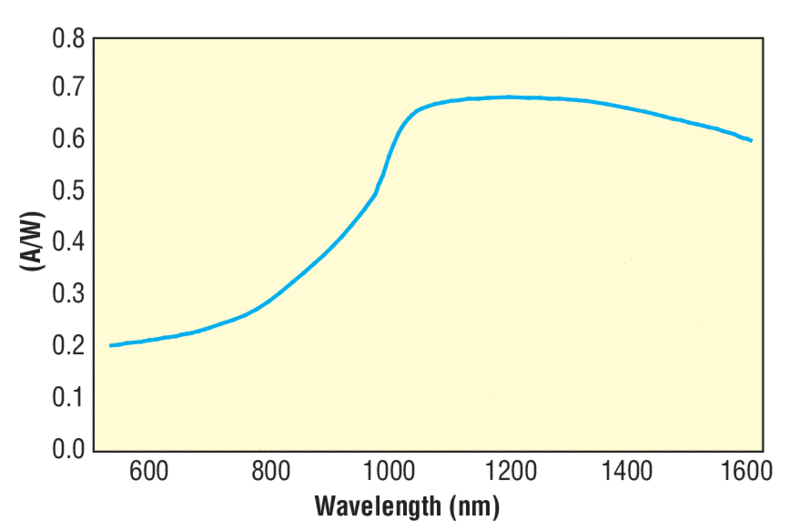

  • Responsivity
    0.6 A/W
  • Optical Input
    Fiber-optic
  • Fiber-Optic Connector
    FC/UPC
  • Fiber Type
    50 µm Multimode
  • Rise Time
    14 ps
  • NEP
    40 pW/√Hz
  • Saturation Power
    2 mW
  • Output Connector
    Wiltron K
  • Output Impedance
    50 Ω
  • DC Bias Monitor Bandwidth
    50 kHz
  • DC Bias Monitor Transimpedance Gain
    1 V/mA
  • Power Requirements
    Internal 9-V battery
