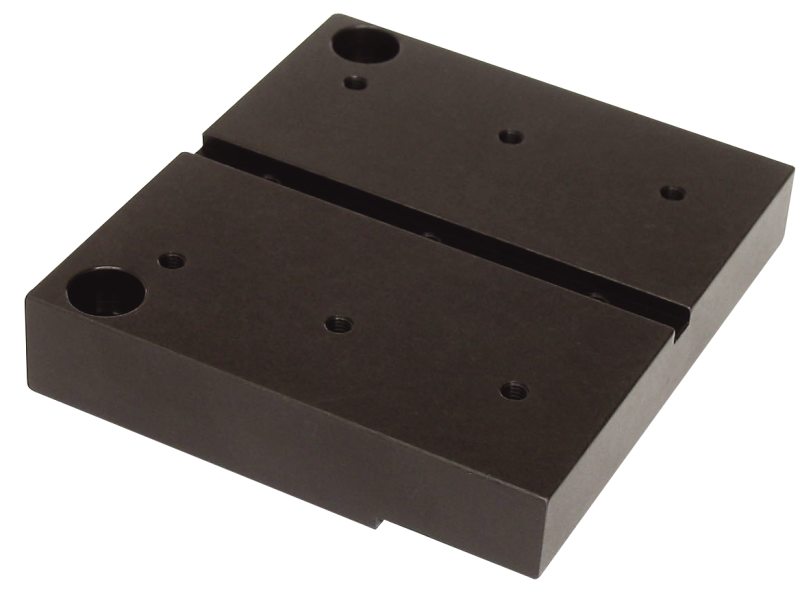

Fixed Bracket, Large, 60 mm Slot Length, M-466A

Model: M-466A-147

$81

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

The M-466A-147 Large Metric Fixed Bracket has a 60 mm length slot and M4 tapped holes. It is used for mounting accessories along X axis of M-466A flexure stages. Includes M-466A-154 clamp set.

Specifications

Technical Specs

Thread Type

M4
Type

Large Fixed Bracket

Thread Type

M4
Type

Large Fixed Bracket

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-147-262 (276.8 kB, PDF)
