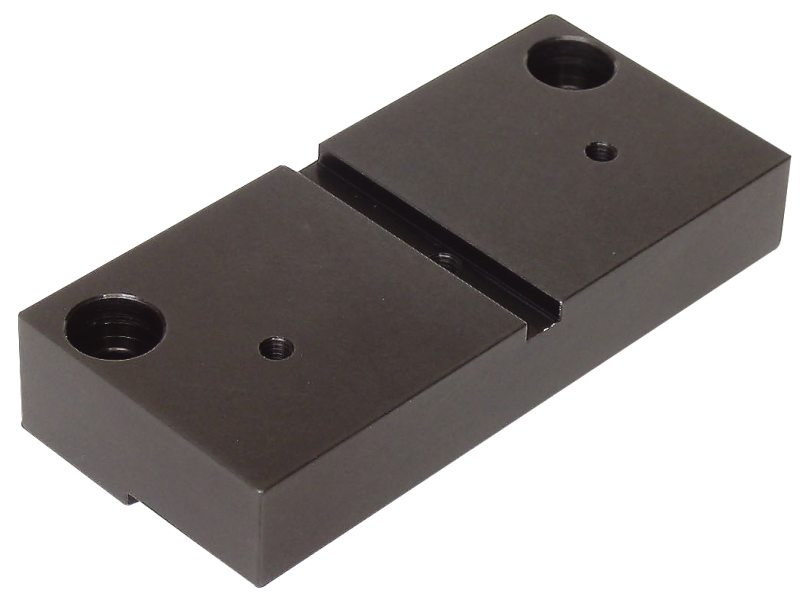

Fixed Bracket, Small, 20 mm Slot Length, M-466A

Model: M-466A-148

$81

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

TheM-466A-148 Small Metric Fixed Bracket has a 20 mm length slot and M4 tapped holes. It is used for mounting accessories along X axis of M-466A flexure stages. Includes M-466A-154 clamp set.

Specifications

Technical Specs

Thread Type

M4
Type

Small Fixed Bracket

Thread Type

M4
Type

Small Fixed Bracket

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-148-263 (210.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
M-466A-154 Clamp Set, M-466A Stages, 2 Clamps, 2 Screws, Allen Wrench	METRIC	In Stock	$31
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock	$38
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41
M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	In Stock	$128

Similar

Description	Compatibility	Avail.	Price
466A-153 Component Plate, 466A Series	UNIVERSAL	In Stock	$27
M-466A-149 L-Shaped Bracket, Slot Length 46mm, M-466A	METRIC	In Stock	$94
466A-189 Universal Stand, 466A Series	UNIVERSAL	In Stock	$212
466A-150 Objective Mount, 466A Series	UNIVERSAL	In Stock	$161
M-466A-147 Fixed Bracket, Large, 60 mm Slot Length, M-466A	METRIC	In Stock	$81

Compatible

Description	Compatibility	Avail.	Price
466A Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	In Stock	$1,301
466A-735 Optical Fiber holder, FC Connector, 466A Series	UNIVERSAL	In Stock	$426
466A-709 Bare Fiber Holder, Single Arm, 466A Series	UNIVERSAL	In Stock	$409
466A-734 Grin Lens Holder, 466A Series	UNIVERSAL	In Stock	$652
466A-LH Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	In Stock	$1,301
