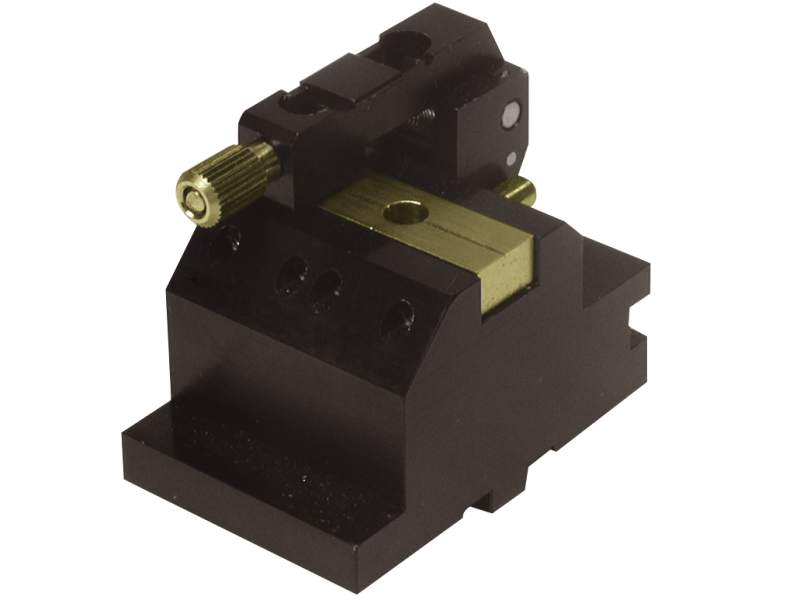

Bare Fiber Holder, Single Arm, 466A Series

Model: 466A-709

$409

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

The 466A-709 Single Arm Bare Fiber Holder has double V-grooves for repeatable fiber placing. A single clamp arm with 25 to 125 g adjustable clamping force swings clear of V-groove for easy loading and unloading of the fiber. Compatible with the 466A Series Flexure Stages.

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-709-271 (131.6 kB, PDF)
