Sorry, this product is no longer offered for sale.

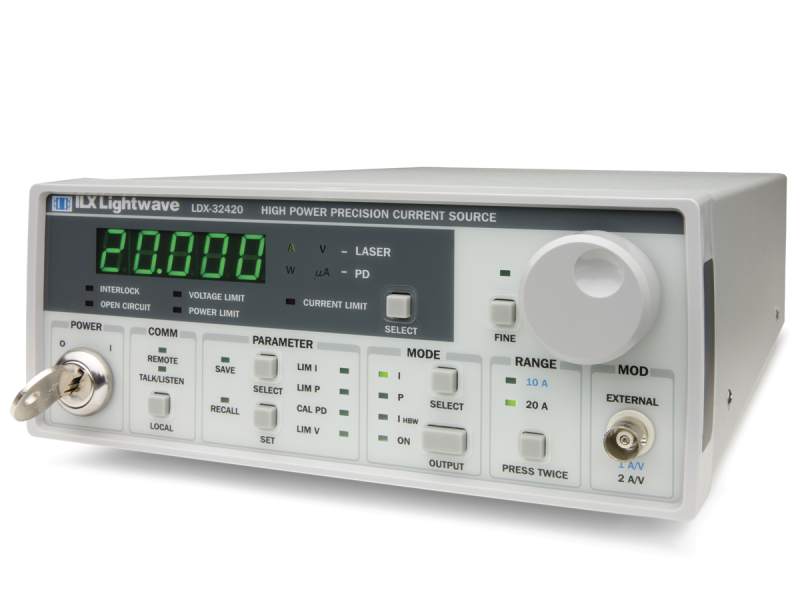

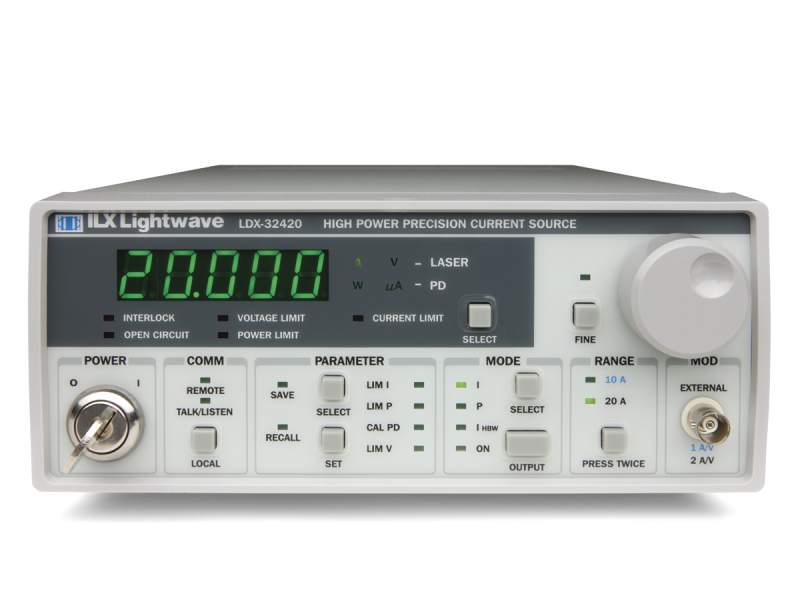

Laser Diode Driver, High Power Precision, 20A, 4V, USB & GPIB, 220 VAC [Discontinued]
The LDX-32420 High Power Precision Laser Diode Driver is a 10A/20A microprocessor-based current source that offers a high stability, low noise output and integrated laser diode protection circuits. In addition to precision current control, the LDX-32420 Precision Laser Diode Driver is loaded with standard features such as dual current ranges, constant power control, fine/coarse set point control, four-wire forward voltage measurement, and external modulation capability.
For automated testing applications in an R&D or production environment, remote operation is easily accomplished through the GPIB/IEEE-488 or USB remote interface. For virtual instrument programming, LabVIEW® instrument drivers are available free of charge. LabVIEW instrument drivers can be downloaded from the Literature and Downloads tab on this page.
Specifications
- Laser Current20 A
- Laser Drive RequirementMore Than 10 A
- Laser Compliance Voltage4 V
- Temperature Coefficient<50 ppm FS/°C
- Computer InterfacesUSB and GPIB
- Power Requirements220 VAC
- Laser Current Resolution1 mA
- Laser Current Accuracy±0.1% reading + 10 mA
- Noise/Ripple (rms)<5 mA
- Transfer Function2 A/V
- Current Output 1 h Stability±50 ppm
- External Modulation High Bandwidth0 - 100 kHz
- External Modulation Low Bandwidth0 - 20 kHz
- Forward Voltage Accuracy±5 mV
- Forward Voltage Resolution1 mV
- Photodiode Current Accuracy±2 µA
- Photodiode Current Range0 to 5000 µA
- Photodiode Reverse Bias0 to 5, Adjustable V
- Display Type5-digit Green LED
Resources & Downloads
Application Notes
Protecting Your Laser Diode(2.3 MB, PDF) Modulating Laser Diodes(394 kB, PDF) Intensity Noise Performance of Semiconductor Lasers(355.4 kB, PDF) Laser Diode Characteristics Overview(392.5 kB, PDF)
Manuals
LDX-32420 Laser Diode Drivers User's Manual(662.2 kB, PDF)
Software
ILX Lightwave USB Drivers(61.9 MB, ZIP) LDX-32420 LabVIEW Driver Version 1.0(379.7 kB, ZIP)
Literature
LDX-32420 High Power Laser Diode Driver Brochure(214.1 kB, PDF)
