Micrometer Head, High Resolution, 25.4 mm, 0.1 µm Sensitivity

Model: HR-1

$511.00

In Stock

Compare

Add to List

Product Series Overview

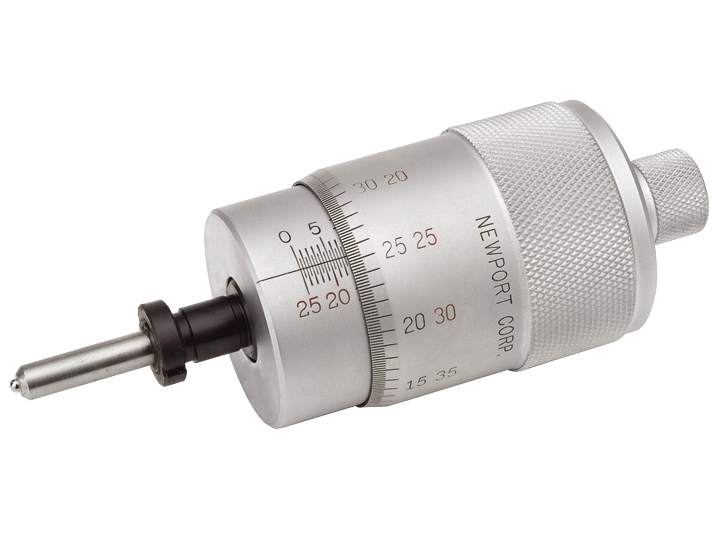

Large Knob, High-Resolution Micrometer Head

The HR-1 Long-Travel High-Resolution Micrometer Head has a sensitivity that is 4X better than most standard micrometer heads. Its engraved scale reads directly in units of 2 μm, and its large knob allows exceptionally sensitive position adjustment. This micrometer is compatible with all axes of any 462 stage configuration except for side-driven configurations.

Specifications

Technical Specs

Type

Micrometer
Travel Range

25.4 mm
Adjustment Screw Thread

50 TPI
Drive Type

Knob
Graduations

2 µm
Axial Load Capacity

49 N

Sensitivity

0.1 µm
Drive Screw Pitch

0.5 mm
Mounting Threads

M9.5 x 0.5
Mounting

9.5 mm Shank

Type

Micrometer
Travel Range

25.4 mm
Adjustment Screw Thread

50 TPI
Drive Type

Knob
Graduations

2 µm
Axial Load Capacity

49 N

Sensitivity

0.1 µm
Drive Screw Pitch

0.5 mm
Mounting Threads

M9.5 x 0.5
Mounting

9.5 mm Shank
