Large Knob, High-Resolution Micrometer Head

Our Long-travel, high-resolution micrometer has a sensitivity that is 4x better than most standard micrometers. Its engraved scale reads directly in units of 2 µm, and its large knob allows exceptionally sensitive position adjustment.

Large diameter knob enables 0.25 µm sensitivity over 25 mm travel
5x finer graduations than standard micrometers
Standard Ø3/8 inch (9.5 mm) mounting barrel

See All Features

Showing 1 of 1 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Travel Range	Adjustment Screw Thread	Graduations	Axial Load Capacity	Sensitivity	Avail.	Price
		HR-1Micrometer Head, High Resolution, 25.4 mm, 0.1 µm Sensitivity	UNIVERSAL		25.4 mm	50 TPI	2 µm	49 N	0.1 µm	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$521

Specifications

Travel Range
25.4 mm
Adjustment Screw Thread
50 TPI
Drive Type
Knob
Graduations
2 µm
Axial Load Capacity
49 N

Sensitivity
0.1 µm
Drive Screw Pitch
0.5 mm
Mounting Threads
M9.5 x 0.5
Mounting
9.5 mm Shank

Features

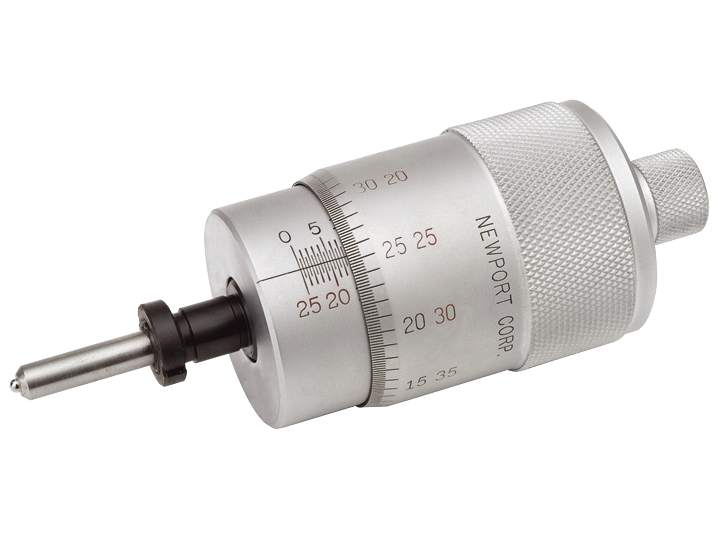

Large Knob For Finer Adjustments

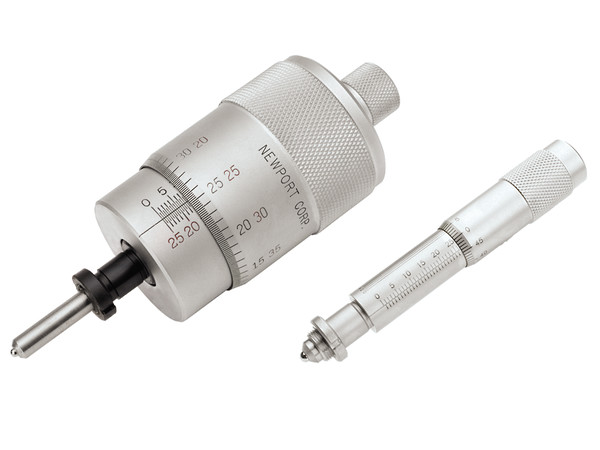

Compared to standard micrometers, the HR-1 has an extra-large diameter knob which provides 4x superior adjustment sensitivity. For fast coarse adjustments use the smaller diameter knob at the end of the screw.

High-Resolution Engraving

The engraved scale of the HR-1 allows position readings directly in units of 2 µm. This is 5-times higher resolution than most standard micrometers.

Mechanical Compatibility

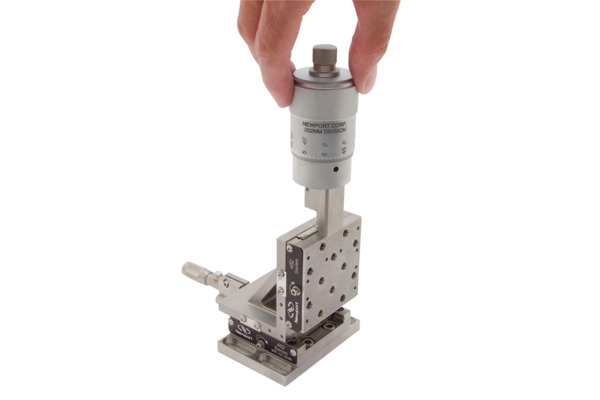

The HR-1 micrometer, shown mounted to the 462-XZ linear stage, has an industry-standard Ø3/8 inch (9.5 mm) mounting barrel. The large diameter knob, however, restricts compatibility with some of our stages. For any questions about mechanical compatibility, please contact Newport.
