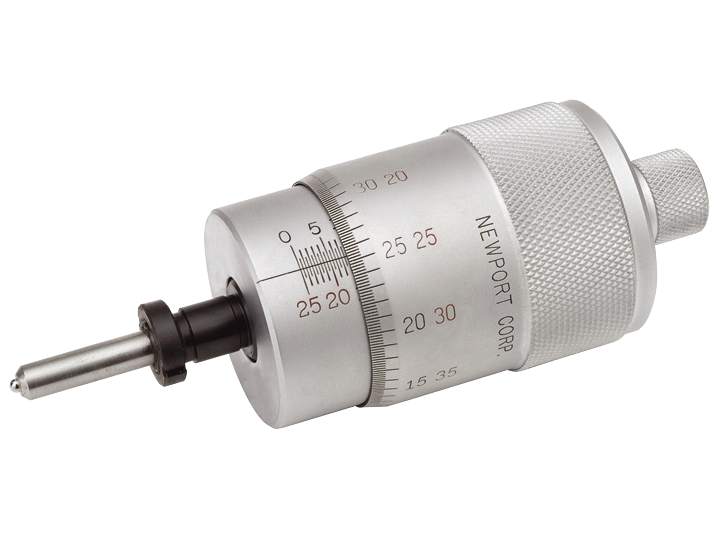

Micrometer Head, High Resolution, 25.4 mm, 0.1 µm Sensitivity

Large Knob, High-Resolution Micrometer Head

The HR-1 Long-Travel High-Resolution Micrometer Head has a sensitivity that is 4X better than most standard micrometer heads. Its engraved scale reads directly in units of 2 μm, and its large knob allows exceptionally sensitive position adjustment. This micrometer is compatible with all axes of any 462 stage configuration except for side-driven configurations.

Specifications

Technical Specs

Type
Micrometer
Travel Range
25.4 mm
Adjustment Screw Thread
50 TPI
Drive Type
Knob
Graduations
2 µm
Axial Load Capacity
49 N

Sensitivity
0.1 µm
Drive Screw Pitch
0.5 mm
Mounting Threads
M9.5 x 0.5
Mounting
9.5 mm Shank

Type
Micrometer
Travel Range
25.4 mm
Adjustment Screw Thread
50 TPI
Drive Type
Knob
Graduations
2 µm
Axial Load Capacity
49 N

Sensitivity
0.1 µm
Drive Screw Pitch
0.5 mm
Mounting Threads
M9.5 x 0.5
Mounting
9.5 mm Shank

Resources & Downloads

2D Product Drawings

HR-1 ART-S(99.4 kB, PDF)
