HPF1330 Fluorescence Optical Filter Set

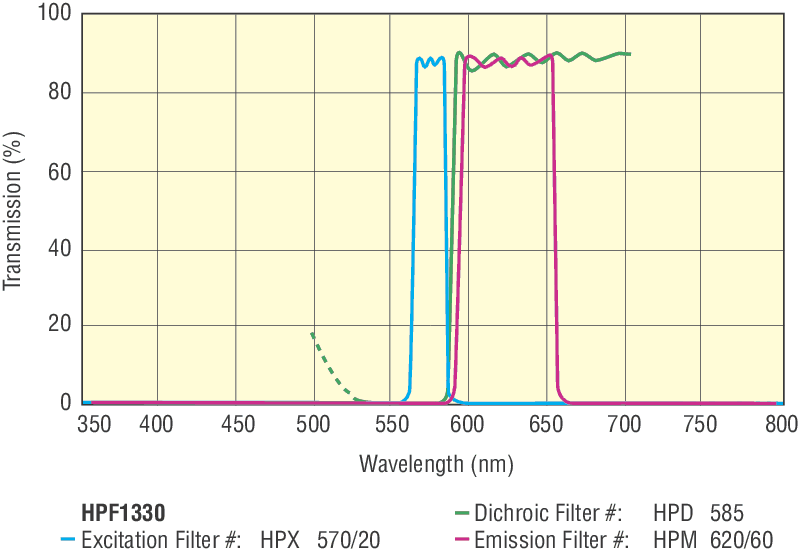

The HPF1330 HPF™ filter set includes HPX570-20

Excitation Filter, HPD585

Dichroic Filter, and HPM620-60

Emission Filter. It is ideal to use with Rhodamine fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

Exceptionally high passband transmission
Maximized out-of-band blocking including extended range blocking on excitation filters
Extremely steep slopes from rejection to transmission regions
Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.

Specifications

Technical Specs

Fluorophores

Rhodamine

Fluorophores

Rhodamine

Resources & Downloads

Other

HPF1330 RoHS Certificate (262.9 kB, PDF)

Literature

Fluorescence Filters Brochure (2.1 MB, PDF)

Related Products

Fluorescence Filter Set Components

The following fluorescence filters are included with this set.

Description	Compatibility	Avail.	Price
HPX570-20 Bandpass Filter, Fluorescence, 25.0 mm, 570 nm Center, 20 nm Bandwidth	UNIVERSAL	In Stock	$306
HPD585 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.	UNIVERSAL	In Stock	$254
HPM620-60 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 60 nm Bandwidth	UNIVERSAL	In Stock	$195

Fluorescence Optical Filter Set, Rhodamine
