Longpass Filter, Colored Glass, 50.8 x 50.8 mm, 455 nm Cut-on, GG455 Glass

Colored Glass Absorptive Longpass Filters

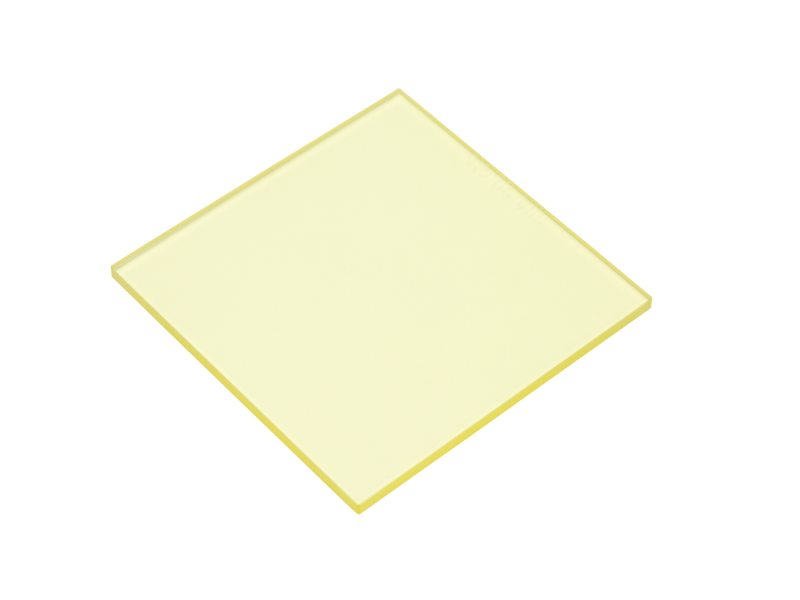

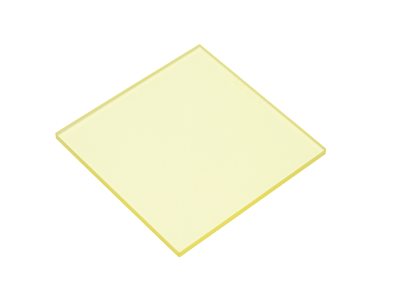

The FSQ-GG455 Colored Glass Longpass Filter is a 50.8 x 50.8 mm square, 455 nm cut-on optical filter made of Schott GG455 filter glass. This long-wave pass edge filter is precision polished for demanding research or OEM applications.

Specifications

Technical Specs

Type
Colored Glass Longpass Filter
Optic Size
50.8 x 50.8 mm
Cut-on Wavelength
455 nm
Angle of Incidence
0°
Material
Schott GG455 or equivalent
Thickness Tolerance
±0.1 mm
Surface Flatness
≤4λ at 632.8 nm over the clear aperture
Thickness
2.0 to 3.0 mm, typical
Surface Quality
60-40 scratch-dig

Size Tolerance
±0.3 mm
Clear Aperture
central ≥ 80% of area
Chamfers
Up to 1 mm face width
Cleaning
See How to Clean Optics
Damage Threshold
30 W/cm² CW, Typical
Wedge
≤3 arc min
Chamfers Angle Tolerance
45° ±15°

Type
Colored Glass Longpass Filter
Optic Size
50.8 x 50.8 mm
Cut-on Wavelength
455 nm
Angle of Incidence
0°
Material
Schott GG455 or equivalent
Thickness Tolerance
±0.1 mm
Surface Flatness
≤4λ at 632.8 nm over the clear aperture
Thickness
2.0 to 3.0 mm, typical
Surface Quality
60-40 scratch-dig

Size Tolerance
±0.3 mm
Clear Aperture
central ≥ 80% of area
Chamfers
Up to 1 mm face width
Cleaning
See How to Clean Optics
Damage Threshold
30 W/cm² CW, Typical
Wedge
≤3 arc min
Chamfers Angle Tolerance
45° ±15°

Resources & Downloads

2D Product Drawings

COLOREDG-S(61 kB, PDF)

Other

FSQ-GG455_ROHS2-2021_w_ex.pdf(280.9 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		10LWF-450-BLongpass Filter, Dielectric, 25.4 mm, 450 ± 5 nm Cut-On, 460 - 1200 nm	UNIVERSAL		In Stock	$147
		10CGA-455Longpass Filter, Colored-Glass Alternative, 25.4 mm, 455 nm Cut-on	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$47

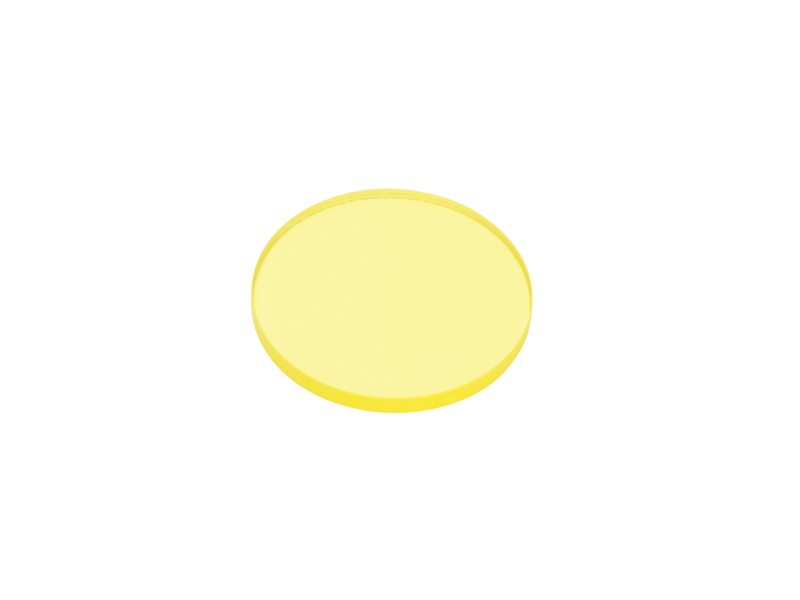

		FSR-GG455Longpass Filter, Colored Glass, 25.4 mm, 455 nm Cut-on, GG455 Glass	UNIVERSAL		Contact Us	$50

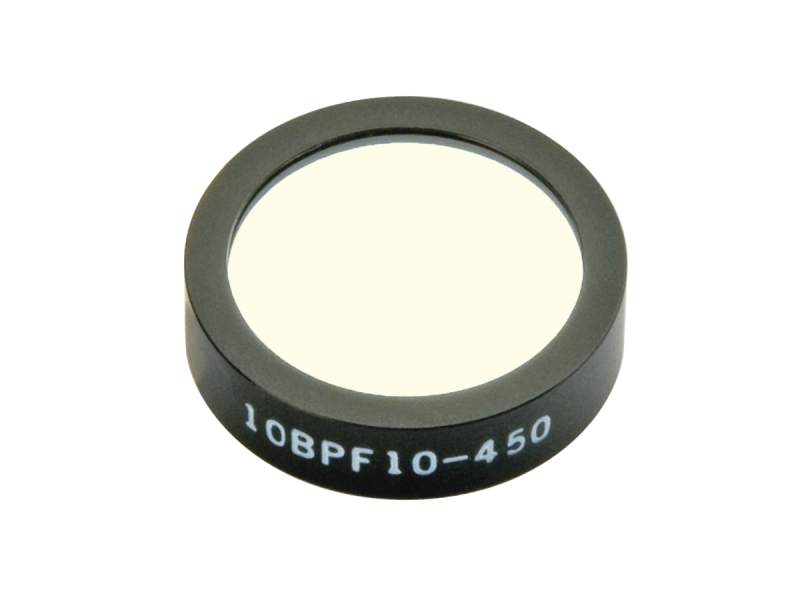

		10BPF10-450Bandpass Filter, 25.4 mm, 450±2 nm Center, 10±2 nm FWHM	UNIVERSAL		In Stock	$151
