Sorry, this product is no longer offered for sale. It was discontinued on Jan 9, 2023.

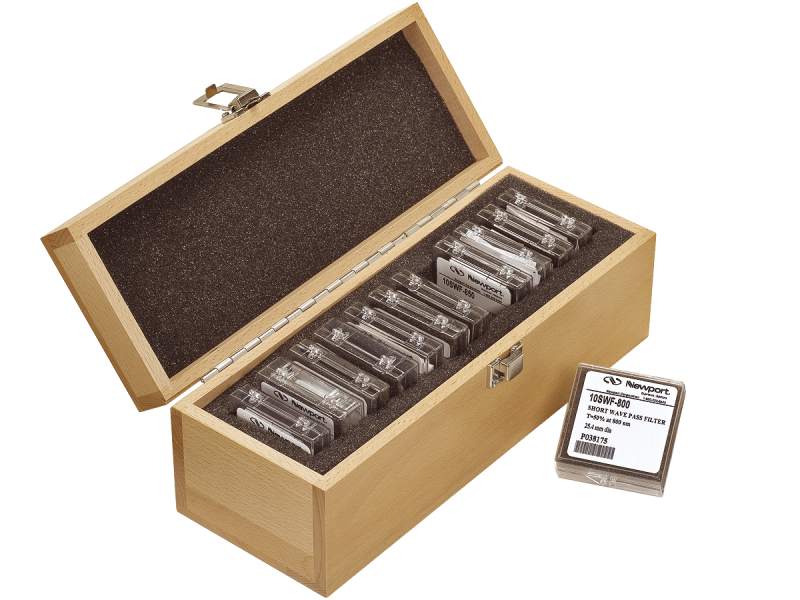

Shortpass Filter Set, 25.4 mm, Inc. 12 Edge Filters, Hardwood Case

Model: FS-SWF-B

Product Series Overview

Shortpass Filter Set

The FS-SWF-B Shortpass Edge Filter Set includes 12, 25.4 mm diameter, short-wave pass edge filters with 450 nm to 1000 nm cut-off wavelengths. Our shortpass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass filters. Shortpass filters have out-of-band rejection = OD 3 to 1200 nm. Typical transmission greater than 65% for short-wave pass filters. These filters are also available individually. Products included in this set are listed below.

Specifications

Technical Specs

Type

Shortpass Filter Set
Optic Size

Ø25.4 mm
Transmission

≥65%
Surface Quality

80-50 scratch-dig
Size Tolerance

+0/-0.5 mm

Effective Index of Refraction

1.7
Temperature Range

-50 to 100°C
Wavelength Shift with Temperature

0.02 nm/°C
Humidity Resistance

Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Type

Shortpass Filter Set
Optic Size

Ø25.4 mm
Transmission

≥65%
Surface Quality

80-50 scratch-dig
Size Tolerance

+0/-0.5 mm

Effective Index of Refraction

1.7
Temperature Range

-50 to 100°C
Wavelength Shift with Temperature

0.02 nm/°C
Humidity Resistance

Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Resources & Downloads

Other

FS-SWF-B RoHS Certificate (265 kB, PDF)

Related Products

Products Included in This Set

Description	Compatibility	Avail.	Price
10SWF-450-B Optical Filter, Shortpass, 25.4 mm, 450 nm Cut-off, 415-440 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-500-B Optical Filter, Shortpass, 25.4 mm, 500 nm Cut-off, 415-490 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-550-B Optical Filter, Shortpass, 25.4 mm, 550 nm Cut-off, 415-540 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-600-B Optical Filter, Shortpass, 25.4 mm, 600 nm Cut-off, 415-590 nm Trans.	UNIVERSAL	In Stock	$142
10SWF-650-B Optical Filter, Shortpass, 25.4 mm, 650 nm Cut-off, 415-640 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-700-B Optical Filter, Shortpass, 25.4 mm, 700 nm Cut-off, 440-685 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-750-B Optical Filter, Shortpass, 25.4 mm, 750 nm Cut-off, 475-735 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-800-B Optical Filter, Shortpass, 25.4 mm, 800 nm Cut-off, 475-785 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-850-B Optical Filter, Shortpass, 25.4 mm, 850 nm Cut-off, 475-835 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-900-B Optical Filter, Shortpass, 25.4 mm, 900 nm Cut-off, 475-880 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-950-B Optical Filter, Shortpass, 25.4 mm, 950 nm Cut-off, 475-930 nm Transmission	UNIVERSAL	In Stock	$142
10SWF-1000-B Optical Filter, Shortpass, 25.4 mm, 1000 nm Cut-off, 475-980 nm Transmission	UNIVERSAL	In Stock	$142

Accessories

Description	Compatibility	Avail.	Price
LAB-06 Gloves, Large, 100 Quantity	UNIVERSAL	In Stock	$50
LAB-18 Precision Tweezers, 115 mm, Stainless Steel	UNIVERSAL	In Stock	$43
LAB-29 Optic Cleaning Wipes, Class 1000 Cleanroom, 1200 Quantity	UNIVERSAL	In Stock	$113
LAB-14 Solvent Dropper Bottle, 2 oz. (60ml)	UNIVERSAL	In Stock	$18
LAB-16 Canned Air Duster, Ultra Jet	UNIVERSAL	In Stock	$17

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		FH-1R Optical Filter Mount, Stackable, 1.0 in. Diameter Optics	UNIVERSAL		In Stock	$41
		FH-1S Optical Filter Holder, Drop-in, 25.4 mm Optics	UNIVERSAL		In Stock	$84
