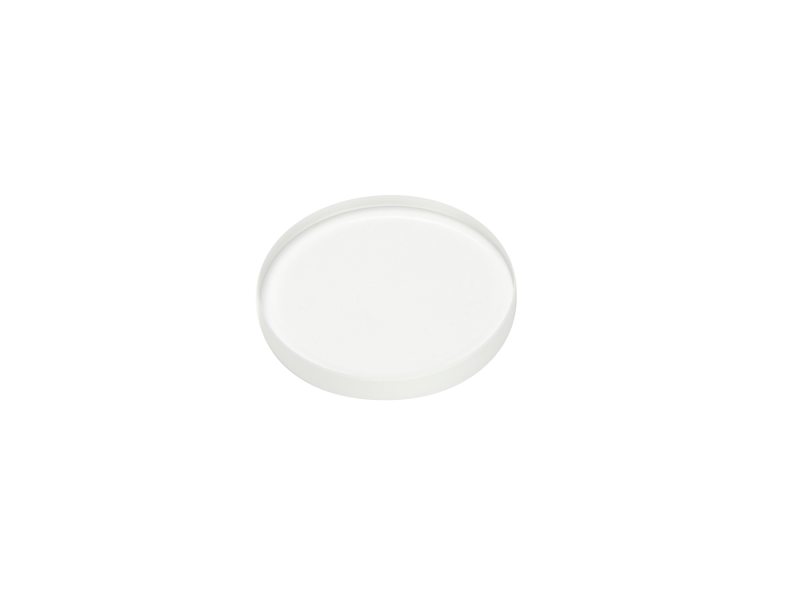

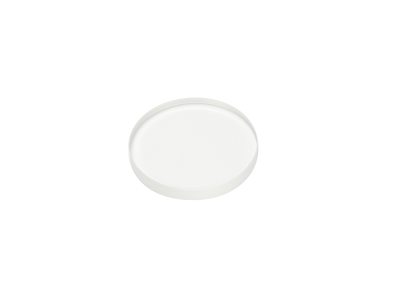

ND Filter, Metallic, Optical Crown Glass, 25.4 mm, 0.04 OD at 632.8 nm

The FBR-ND004 Metallic Neutral Density Filter is a 25.4 mm diameter Optical Crown Glass Metallic ND Filter with an optical density of 0.04 at 632.8 nm. Our metallic neutral density coatings provide broadband attenuation for low power applications. The coating is deposited on one side of a cost effective B 270 optical glass substrate, providing excellent performance in the visible and near-infrared.

Specifications

Technical Specs

Size
Ø25.4 mm
Wavelength Range
400-1200 nm
Optical Density
0.04
Optical Density Tolerance
±2.5% @ 632.8 nm
Transmission
91.6% @ 632.8 nm
Angle of Incidence
0°
Material
B270 Optical Crown Glass or Equivalent
Damage Threshold
30 W/cm² CW, typical; not recommended for pulsed laser use
Size Tolerance
+0/-0.50 mm
Thickness
3.0 mm
Thickness Tolerance
±0.25 mm

Surface Flatness
≤5λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Clear Aperture
≥central 80% of dimensions
Wedge
≤5 arc min
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning
See How to Clean Optics

Size
Ø25.4 mm
Wavelength Range
400-1200 nm
Optical Density
0.04
Optical Density Tolerance
±2.5% @ 632.8 nm
Transmission
91.6% @ 632.8 nm
Angle of Incidence
0°
Material
B270 Optical Crown Glass or Equivalent
Damage Threshold
30 W/cm² CW, typical; not recommended for pulsed laser use
Size Tolerance
+0/-0.50 mm
Thickness
3.0 mm
Thickness Tolerance
±0.25 mm

Surface Flatness
≤5λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Clear Aperture
≥central 80% of dimensions
Wedge
≤5 arc min
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning
See How to Clean Optics

Resources & Downloads

Other

FBR-ND004 RoHS Certificate(708.1 kB, PDF)

2D Product Drawings

FBR-ND Series Drawing(76.8 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
25FS04DV.4Neutral Density Filter, Circular Variable Metallic, UVFS, 25 mm, 0-4 OD	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$317
5247NFND Filter Set, Metallic, Borofloat, Qty 6	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$262
FBS-ND004ND Filter, Metallic, Optical Crown Glass, 50.8 x 50.8mm, 0.04 OD	UNIVERSAL	1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More	$70

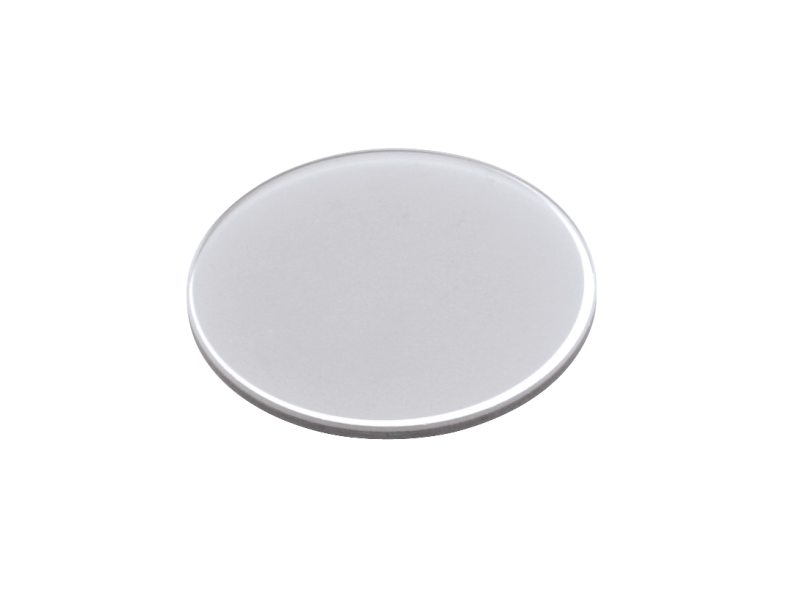

5230Neutral Density Filter, 0.04 Optical Density, 1.0 in. Diameter	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$47
