Neutral Density Filter, 0.04 Optical Density, 1.0 in. Diameter

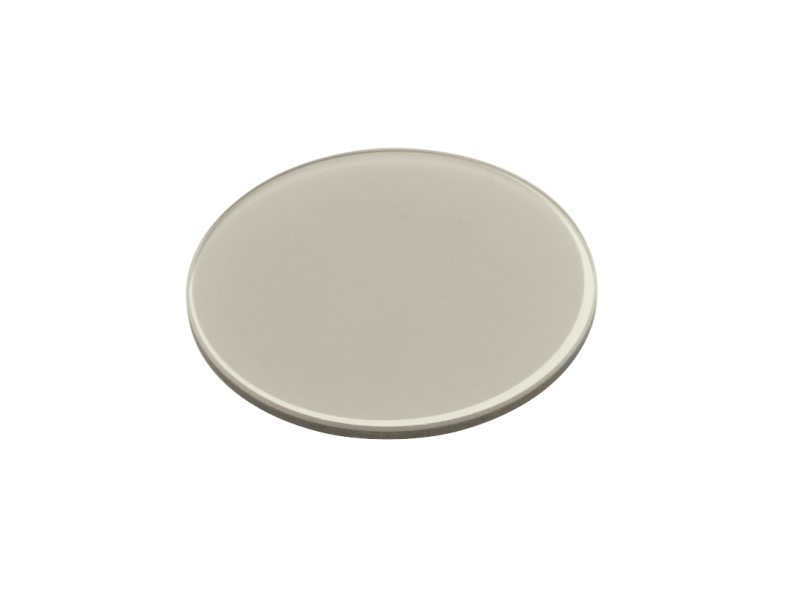

Schott Borofloat Glass Metallic ND Filters

The 5230 Neutral Density Filter is made with an Inconel® metallic coating on a glass substrates. This 1.0 inch (25.4 mm) diameter ND filter provides 0.04 OD spectrally uniform attenuation over the wavelength range from 400 to 2000 nm. The reflective nature of the coating helps reduce thermal effects when this filters are used with moderate power lasers.

Specifications

Technical Specs

Size
Ø25.4 mm
Wavelength Range
400-2000 nm
Optical Density
0.04
Transmission
91%
Transmission Tolerance
±1%
Material
Schott Borofloat Glass
Thickness
1.1 mm

Surface Flatness
1 λ @ 633 nm
Surface Quality
40-20 scratch-dig
Clear Aperture
21.5 mm
Parallelism
0.5 mrad

Size
Ø25.4 mm
Wavelength Range
400-2000 nm
Optical Density
0.04
Transmission
91%
Transmission Tolerance
±1%
Material
Schott Borofloat Glass
Thickness
1.1 mm

Surface Flatness
1 λ @ 633 nm
Surface Quality
40-20 scratch-dig
Clear Aperture
21.5 mm
Parallelism
0.5 mrad
