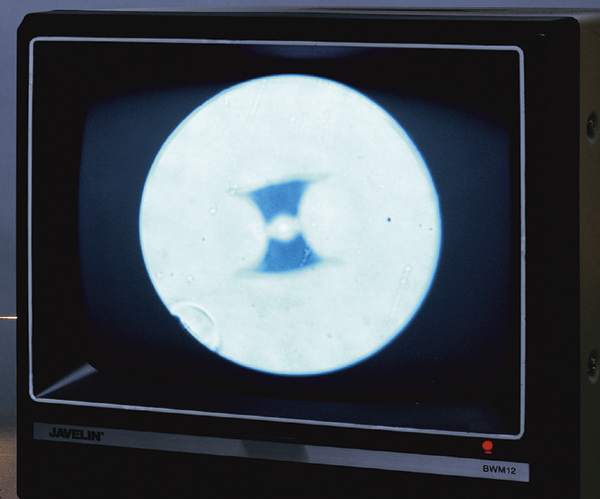

PM Optical Fiber, Bow-Tie, 1550-1650 nm, 0.14-0.18 NA

Technical Specs

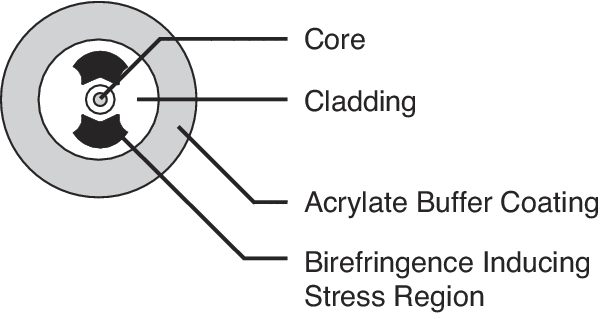

  • Index Profile
    Step
  • Fiber Type
    Polarization Maintaining
  • Mode Field Diameter, Nominal
    7.0 - 9.2 @1550 nm µm
  • Cladding Diameter
    125 ±1 µm
  • Coating Diameter
    245 ±15 µm
  • Cable Diameter
    2.5 mm
  • Operating Wavelength
    1550 - 1650 nm
  • Cut-off Wavelength
    1230 - 1520 nm
  • Buffer Coating Material
    Dual Acrylate
  • Maximum Attenuation
    2 dB/km @1550 nm
  • Numerical Aperture
    0.14 - 0.18
  • Proof Test
    100 kpsi
